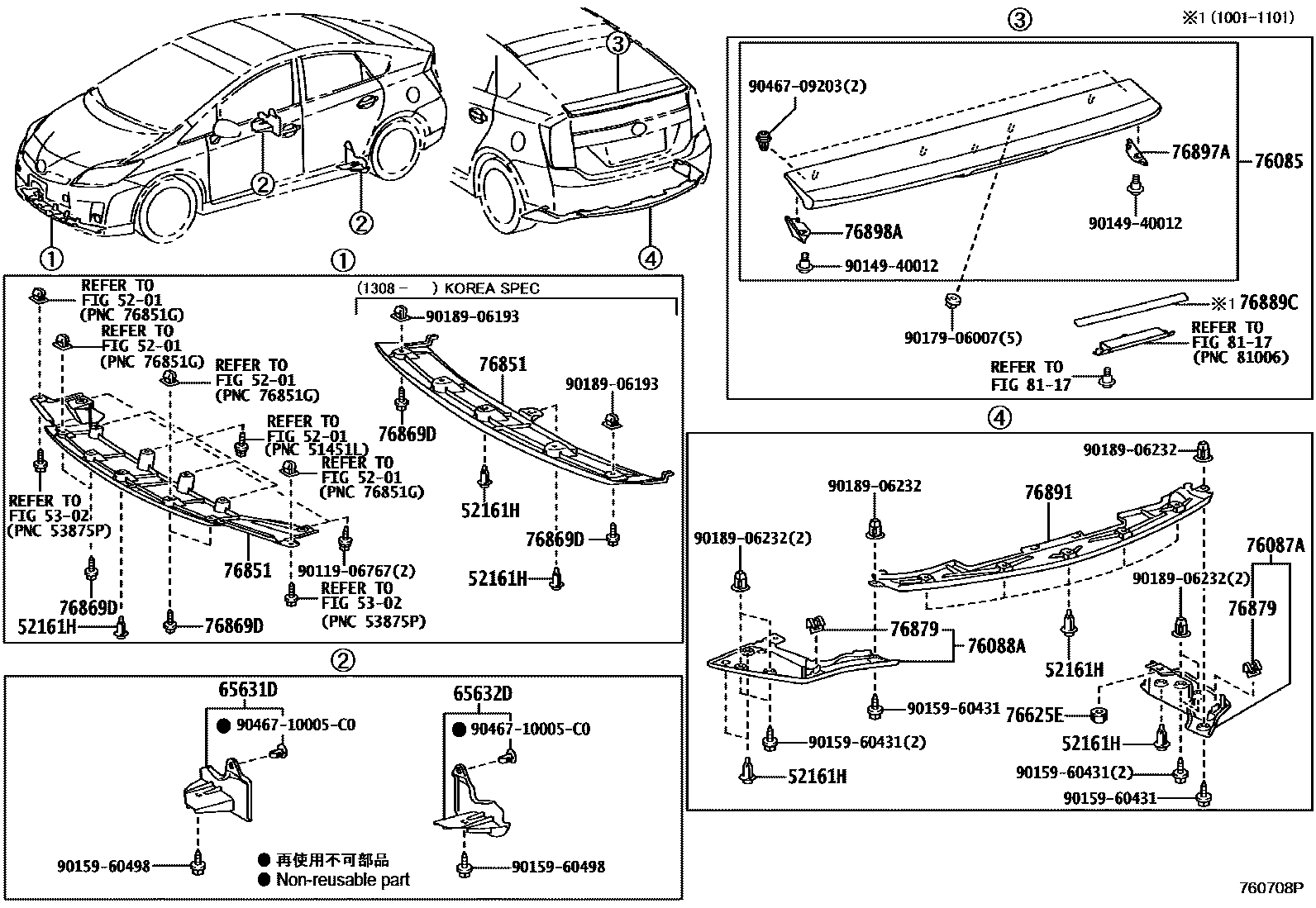

MUDGUARD & SPOILER

5201

52161HPIECE, REAR BUMPER

main52161-16010×8iZVW30..S..USA200904-201112

MEXICO SPEC

sub52161-0K040

5302

65631DPLATE, REAR WHEEL HOUSE, FRONT RH

main65631-47041iZVW30200904-201112

65632DPLATE, REAR WHEEL HOUSE, FRONT LH

main65632-47041iZVW30200904-201112

76085SPOILER SUB-ASSY, REAR

main76085-47905iZVW30200904-200909

NO PAINT REQ.

main76085-47907iZVW30200910-201101

NO PAINT REQ.

main76085-47910iZVW30201101-201112

NO PAINT REQ.

76087ASPOILER SUB-ASSY, REAR SIDE

main76087-47020iZVW30..G,S200904-201112

76088ASPOILER SUB-ASSY, REAR SIDE

main76088-47020iZVW30..G,S200904-201112

76625ECLIP

main90467-06121iZVW30..G,S200904-201008

main90467-06206-C0iZVW30..G,S201009-201112

BLACK

76851COVER, FRONT SPOILER

main76851-47030iZVW30..S..USA200904-201112

MEXICO SPEC

main76851-47020iZVW30..(G,S)..USA201308-201511

KOREA SPEC

76869DSCREW, NO.2

main90159-60488×4iZVW30..S..USA200904-201112

MEXICO SPEC

76879CLIP, REAR SPOILER, NO.1

main76879-44010×2iZVW30..G,S200904-201112

76889CADHESIVE, REAR SPOILER

main76889-47020iZVW30201001-201101

76891SPOILER, REAR NO.1

main76891-47020iZVW30..G,S200904-201112

76897ASPOILER,REAR SIDE RH

main76897-47020iZVW30200904-201112

76898ASPOILER,REAR SIDE LH

main76898-47020iZVW30200904-201112

8117

9011906767

main90119-06767

9014940012

main90149-40012

9015960431

main90159-60431

9015960498

main90159-60498

9017906007

main90179-06007

9018906193

main90189-06193

9018906232

main90189-06232

9046709203

main90467-09203

9046710005C0

main90467-10005C0

26 parts on this diagram · 1 diagram in section
