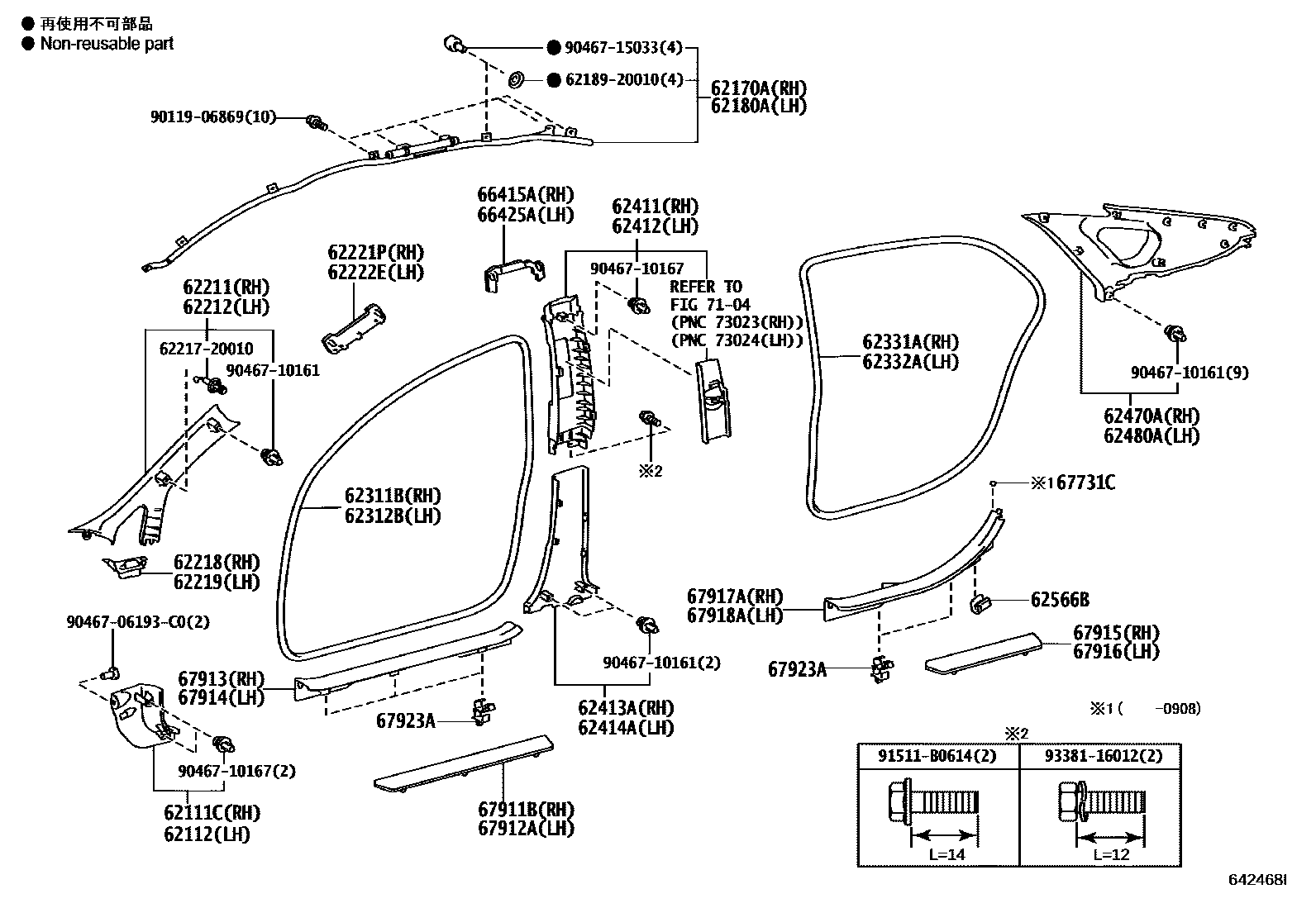

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

62111CBOARD, COWL SIDE TRIM, RH

main62111-47060-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main62111-47060-E0iZVW30..G,S200904-201112

GREGE,TRIM4#

main62111-47060-G0iZVW30..G,S200904-201112

AQUA,TRIM6#

main62111-47130-C0iZVW30201112-201305

BLACK,TRIM1#,2#

main62111-47130-E0iZVW30..G,S201112-201305

GREGE,TRIM4#

main62111-47130-G0iZVW30..G,S201112-201305

AQUA,TRIM6#

main62111-47131-C0iZVW30..CND;ZVW30..G,L; ZVW30..S..USA201306-201511

BLACK,TRIM1#; BLACK,TRIM1#,2#

main62111-47131-E0iZVW30..G,S201306-201511

GREGE,TRIM4#

main62111-47131-G0iZVW30..G,S201306-201511

AQUA,TRIM6#

62112BOARD, COWL SIDE TRIM, LH

main62112-47090-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main62112-47090-E0iZVW30..G,S200904-201112

GREGE,TRIM4#

main62112-47090-G0iZVW30..G,S200904-201112

AQUA,TRIM6#

main62112-47180-C0iZVW30..CND;ZVW30..G,L; ZVW30..S..USA201112-201305

BLACK,TRIM1#; BLACK,TRIM1#,2#

main62112-47180-E0iZVW30..G,S201112-201305

GREGE,TRIM4#

main62112-47180-G0iZVW30..G,S201112-201305

AQUA,TRIM6#

main62112-47181-C0iZVW30..CND;ZVW30..G,L; ZVW30..S..USA201306-201310

BLACK,TRIM1#; BLACK,TRIM1#,2#

main62112-47181-E0iZVW30..G,S201306-201310

GREGE,TRIM4#

main62112-47181-G0iZVW30..G,S201306-201310

AQUA,TRIM6#

main62112-47210-C0iZVW30..CND;ZVW30..G,L; ZVW30..S..USA201310-201511

BLACK,TRIM1#; BLACK,TRIM1#,2#

main62112-47210-E0iZVW30..G,S201310-201511

GREGE,TRIM4#

main62112-47210-G0iZVW30..G,S201310-201511

AQUA,TRIM6#

62170AAIRBAG ASSY, CURTAIN SHIELD, RH

main62170-47020iZVW30200904-201112

main62170-47050iZVW30201310

62180AAIRBAG ASSY, CURTAIN SHIELD, LH

main62180-47020iZVW30201112-201310

main62180-47050iZVW30201310

62211GARNISH, FRONT PILLAR, RH

main62210-47070-B0iZVW30..L200908-201112

LT.GRAY,TRIM1#

main62210-47080-B0supersedes 62210-47120-B0iZVW30..CND; ZVW30..G200904-201112

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

main62210-47120-B0iZVW30..CND; ZVW30..L; ZVW30..S..USA201112-201511

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#,4#,6#; LT.GRAY,TRIM1#,4#,6#

main62210-47130-B0iZVW30..CND; ZVW30..G201112-201207

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

main62210-47131-B0iZVW30..CND; ZVW30..G201208-201511

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

62212GARNISH, FRONT PILLAR, LH

main62220-47070-B0iZVW30..L200908-201112

LT.GRAY,TRIM1#

main62220-47080-B0supersedes 62220-47120-B0iZVW30..CND; ZVW30..G200904-201112

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

main62220-47120-B0iZVW30..CND; ZVW30..L; ZVW30..S..USA201112-201511

LT.GRAY,TRIM1#; LT.GRAY,TRIM1#,2#,4#,6#; LT.GRAY,TRIM1#,4#,6#

main62220-47130-B0iZVW30..CND; ZVW30..G201112-201207

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

main62220-47131-B0iZVW30..CND; ZVW30..G201208-201511

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

62218PIECE, FRONT PILLAR GARNISH CORNER, RH

main62218-47040-B1iZVW30..S200904-201112

LT.GRAY,TRIM1#,4#,6#

main62218-47050-B0iZVW30..CND; ZVW30..G200904-201112

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

main62218-47051-B0iZVW30..CND; ZVW30..G201208-201511

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

62219PIECE, FRONT PILLAR GARNISH CORNER, LH

main62219-47040-B1iZVW30..L; ZVW30..S201112-201511

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#,6#

main62219-47050-B0iZVW30..CND; ZVW30..G200904-201112

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

main62219-47051-B0iZVW30..CND; ZVW30..G201208-201511

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

62221PSPACER, FRONT PILLAR, NO.1 RH

main62221-47050iZVW30200904-201112

62222ESPACER, FRONT PILLAR, NO.1 LH

main62222-47040iZVW30201112

62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH

main62311-47030-B0iZVW30..G,S200904-201112

LT.GRAY,TRIM4#,6#

main62311-47030-B1iZVW30200904-201112

MD.GRAY,TRIM1#

main62311-47030-C0iZVW30201112-201511

BLACK,TRIM1#,2#

62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH

main62312-47030-B0iZVW30..G,S200904-201112

LT.GRAY,TRIM4#,6#

main62312-47030-B1iZVW30200904-201112

MD.GRAY,TRIM1#

main62312-47030-C0iZVW30201112-201511

BLACK,TRIM1#,2#

62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH

main62331-47030-B0iZVW30..G,S200904-201112

LT.GRAY,TRIM4#,6#

main62331-47030-B1iZVW30200904-201112

MD.GRAY,TRIM1#

main62331-47030-C0iZVW30201112-201511

BLACK,TRIM1#,2#

62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH

main62332-47030-B0iZVW30..G,S200904-201112

LT.GRAY,TRIM4#,6#

main62332-47030-B1iZVW30200904-201112

MD.GRAY,TRIM1#

main62332-47030-C0iZVW30201112-201511

BLACK,TRIM1#,2#

62411GARNISH, CENTER PILLAR, RH

main62410-47060-B1iZVW30..S200904-201112

LT.GRAY,TRIM1#,4#,6#

main62410-47070-B1iZVW30..CND; ZVW30..G201112-201207

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,2#,4#,6#; LT. GRAY,TRIM1#,2#,4#,6#

main62410-47071-B1iZVW30..CND; ZVW30..G201208-201511

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

62412GARNISH, CENTER PILLAR, LH

main62420-47060-B1iZVW30..L; ZVW30..S201112-201511

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#,6#

main62420-47070-B1iZVW30..CND; ZVW30..G201112-201207

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,2#,4#,6#; LT. GRAY,TRIM1#,2#,4#,6#

main62420-47071-B1iZVW30..CND; ZVW30..G201208-201511

EXPORT UPPER PACKAGE,LT. GRAY,TRIM1#,4#,6#; LT. GRAY,TRIM1#,4#,6#

62413AGARNISH, CENTER PILLAR, LOWER RH

main62413-47040-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main62413-47040-C0iZVW30201112-201511

BLACK,TRIM1#,2#

main62413-47040-E0iZVW30..G,S200904-201112

GREGE,TRIM4#

main62413-47040-G0iZVW30..G,S200904-201112

AQUA,TRIM6#

62414AGARNISH, CENTER PILLAR, LOWER LH

main62414-47040-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main62414-47040-C0iZVW30201112-201511

BLACK,TRIM1#,2#

main62414-47040-E0iZVW30..G,S200904-201112

GREGE,TRIM4#

main62414-47040-G0iZVW30..G,S200904-201112

AQUA,TRIM6#

62470AGARNISH ASSY, ROOF SIDE, INNER RH

main62470-47070-B0iZVW30..G,S200904-201112

LT.GRAY,TRIM1#,4#,6#

main62470-47110-B0iZVW30..G,S; ZVW30..L201112-201511

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#,6#

62480AGARNISH ASSY, ROOF SIDE, INNER LH

main62480-47050-B0iZVW30..G,S200904-201112

LT.GRAY,TRIM1#,4#,6#

main62480-47080-B0iZVW30..G,S; ZVW30..L201112-201511

LT.GRAY,TRIM1#,2#; LT.GRAY,TRIM1#,2#,4#,6#

62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1

main62566-32010×2iZVW30200904-201112

66415ASPACER, SIDE RAIL, REAR NO.2 RH

main66415-47010iZVW30200904-201112

66425ASPACER, SIDE RAIL, REAR NO.2 LH

main66425-47010iZVW30200904-201112

67731CSPACER, SIDE TRIM, NO.1

main67731-47010×2iZVW30200904-200908

67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH

main67911-47030iZVW30200904-201112

67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH

main67911-47030iZVW30200904-201112

67913PLATE, FRONT DOOR SCUFF, RH

main67913-47040-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main67913-47040-C0iZVW30201112-201305

BLACK,TRIM1#,2#

main67913-47040-E0iZVW30..G,S200904-201112

GREGE,TRIM4#

main67913-47040-G0iZVW30..G,S201112-201305

AQUA,TRIM6#

main67913-47041-C0iZVW30..CND;ZVW30..G,L; ZVW30..S..USA201306-201511

BLACK,TRIM1#; BLACK,TRIM1#,2#

main67913-47041-E0iZVW30..G,S201306-201511

GREGE,TRIM4#

main67913-47041-G0iZVW30..G,S201306-201511

AQUA,TRIM6#

67914PLATE, FRONT DOOR SCUFF, LH

main67914-47040-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main67914-47040-C0iZVW30201112-201305

BLACK,TRIM1#,2#

main67914-47040-E0iZVW30..G,S200904-201112

GREGE,TRIM4#

main67914-47040-G0iZVW30..G,S201112-201305

AQUA,TRIM6#

main67914-47041-C0iZVW30..CND;ZVW30..G,L; ZVW30..S..USA201306-201511

BLACK,TRIM1#; BLACK,TRIM1#,2#

main67914-47041-E0iZVW30..G,S201306-201511

GREGE,TRIM4#

main67914-47041-G0iZVW30..G,S201306-201511

AQUA,TRIM6#

67915PLATE, REAR DOOR SCUFF, OUTSIDE RH

main67915-47030iZVW30200904-201112

67916PLATE, REAR DOOR SCUFF, OUTSIDE LH

main67916-47020iZVW30200904-201112

67917APLATE, REAR DOOR SCUFF, RH

main67917-47040-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main67917-47040-C0iZVW30201112-201305

BLACK,TRIM1#,2#

main67917-47040-E0iZVW30..G,S200904-201112

GREGE,TRIM4#

main67917-47040-G0iZVW30..G,S200904-201112

AQUA,TRIM6#

main67917-47041-C0iZVW30..CND;ZVW30..G,L; ZVW30..S..USA201306-201511

BLACK,TRIM1#; BLACK,TRIM1#,2#

main67917-47041-E0iZVW30..G,S201306-201511

GREGE,TRIM4#

main67917-47041-G0iZVW30..G,S201306-201511

AQUA,TRIM6#

67918APLATE, REAR DOOR SCUFF, LH

main67918-47040-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main67918-47040-C0iZVW30201112-201305

BLACK,TRIM1#,2#

main67918-47040-E0iZVW30..G,S200904-201112

GREGE,TRIM4#

main67918-47040-G0iZVW30..G,S200904-201112

AQUA,TRIM6#

main67918-47041-C0iZVW30..CND;ZVW30..G,L; ZVW30..S..USA201306-201511

BLACK,TRIM1#; BLACK,TRIM1#,2#

main67918-47041-E0iZVW30..G,S201306-201511

GREGE,TRIM4#

main67918-47041-G0iZVW30..G,S201306-201511

AQUA,TRIM6#

67923ACLAMP, DOOR SCUFF PLATE, NO.1

main67923-47060×10iZVW30201112

7104SEAT BELT & CHILD RESTRAINT SEAT

→ Go to FIG 71-04

6218920010PLATE, REAR FLOOR SIDE BOARD SET, REAR LH

main62189-20010

6221720010COVER, RAIL ROOF SIDE, INNER CENTER

main62217-20010

9011906869

main90119-06869

9046706193C0

main90467-06193C0

9046710161

main90467-10161

9046710167

main90467-10167

9046715033

main90467-15033

91511B0614

main91511-B0614

9338116012

main93381-16012

43 parts on this diagram · 1 diagram in section
