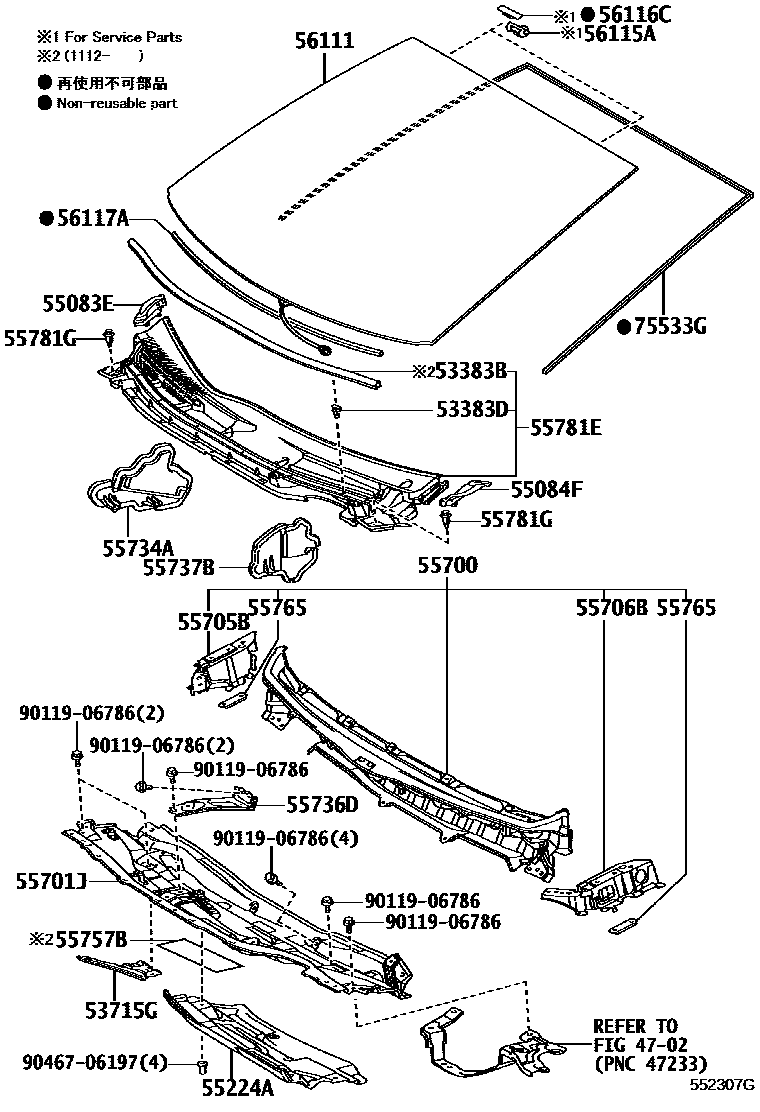

COWL PANEL & WINDSHIELD GLASS

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

53383BSEAL, HOOD TO COWL TOP

main53383-47080i201112

53383DCLIP(FOR HOOD TO COWL TOP SEAL)

main67867-12150×6i201112

53715GEXTENSION, FRONT FENDER APRON, REAR RH

main53715-47010i201112

55083EVENTILATOR SUB-ASSY, COWL SIDE, RH

main55083-47020i201112

55084FVENTILATOR SUB-ASSY, COWL SIDE, LH

main55084-47020i200904-201112

55224AINSULATOR, DASH PANEL, OUTER NO.2

main55224-47010i200904-201007

main55224-47011i201008-201112

55700PANEL ASSY, FRONT

main55700-47170i200904-201112

55701JPANEL SUB-ASSY, COWL TOP, OUTER

main55701-47030i200904-201007

main55701-47031i201112

55705BPANEL SUB-ASSY, COWL TOP SIDE, RH

main55705-47020i200904-201112

55706BPANEL SUB-ASSY, COWL TOP SIDE, LH

main55706-47020i200904-201112

55734APLATE, WATER GUARD, RH

main55734-47030i200904-201112

55736DREINFORCEMENT, COWL BODY MOUNTING, LH

main55736-47030i200904-201112

55737BSEAL, HEATER AIR DUCT SPLASH SHIELD, NO.1

main55737-47050i200904-201112

55757BSHEET COWL TOP INSULATOR

main55767-47010i201112

55765BRACKET, HOOD DAMPER MOUNTING

main55765-44010×2i200904-201112

55781ELOUVER SUB-ASSY, COWL TOP VENTILATOR

main55708-47110i200904-201112

55781GCLIP, COWL TOP VENTILATOR LOUVER

main90467-07076-C0×2i200904-201112

BLACK

56111GLASS, WINDSHIELD

main56101-47904i200904-201011

*LAM,T=4.56,GREEN

main56101-47938i201011-201112

*LAM,T=4.56,GREEN

main56101-47994i201202-201304

*LAM,T=4.56,GREEN

main56101-4E928i201304

*LAM,T=4.56,GREEN

main56101-47905i200904-201112

*LAM,T=4.56,GREEN; *LAM,T=4.56,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; *LAM,T=4.56,GREEN,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY

main56101-47906supersedes 56101-4E929i200904-201112

*LAM,T=4.56,GREEN,LANE KEEPING SYSTEM-WITH

main56101-47977supersedes 56101-4E929i201112-201202

*LAM,T=4.56,GREEN,PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN SDARSBLUETOOTH USB JBL 8SPEAKER&LANE KEEPING SYSTEM-WITH

main56101-47984supersedes 56101-4E929i201112-201202

*LAM,T=4.56,GREEN,AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER

main56101-47995i201202-201303

*LAM,T=4.56,GREEN; *LAM,T=4.56,GREEN,AUDIO-*DA SDARS *BT USB 6SP; *LAM,T=4.56,GREEN,AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER

main56101-4E900supersedes 56101-4E929i201202-201304

*LAM,T=4.56,GREEN,AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER

main56101-4E901supersedes 56101-4E929i201202-201305

*LAM,T=4.56,GREEN,PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN SDARSBLUETOOTH USB JBL 8SPEAKER&LANE KEEPING SYSTEM-WITH

main56101-4E929i201303

*LAM,T=4.56,GREEN; *LAM,T=4.56,GREEN,AUDIO-*DA SDARS *BT USB 6SP; *LAM,T=4.56,GREEN,AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER

main56101-4E930supersedes 56101-4E929i201304

*LAM,T=4.56,GREEN,AUDIO-AVN SDARS BLUETOOTH USB JBL 8SPEAKER

main56101-4E931supersedes 56101-4E929i201305

*LAM,T=4.56,GREEN,PRE-COLLISION SYSTEM-WITH(WITH/*PB & OFF SWICH)&AUDIO-AVN SDARSBLUETOOTH USB JBL 8SPEAKER&LANE KEEPING SYSTEM-WITH

56115ASTOPPER, WINDSHIELD GLASS, NO.1

main56115-30100×2i200904-201112

56116CSTOPPER, WINDSHIELD GLASS, NO.2

main56116-22050×2i200904-201112

56117ADAM, WINDOW GLASS ADHESIVE

main56117-47030i200904-201112

L=1227; L=1227,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE; L=1227,INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & RR CAMERA DISPLAY; L=1227,LANE KEEPING SYSTEM-WITH

75533GMOULDING, WINDSHIELD, OUTSIDE

main75533-47050i200904-201112

9011906786

main90119-06786

9046706197

main90467-06197

25 parts on this diagram · 1 diagram in section
