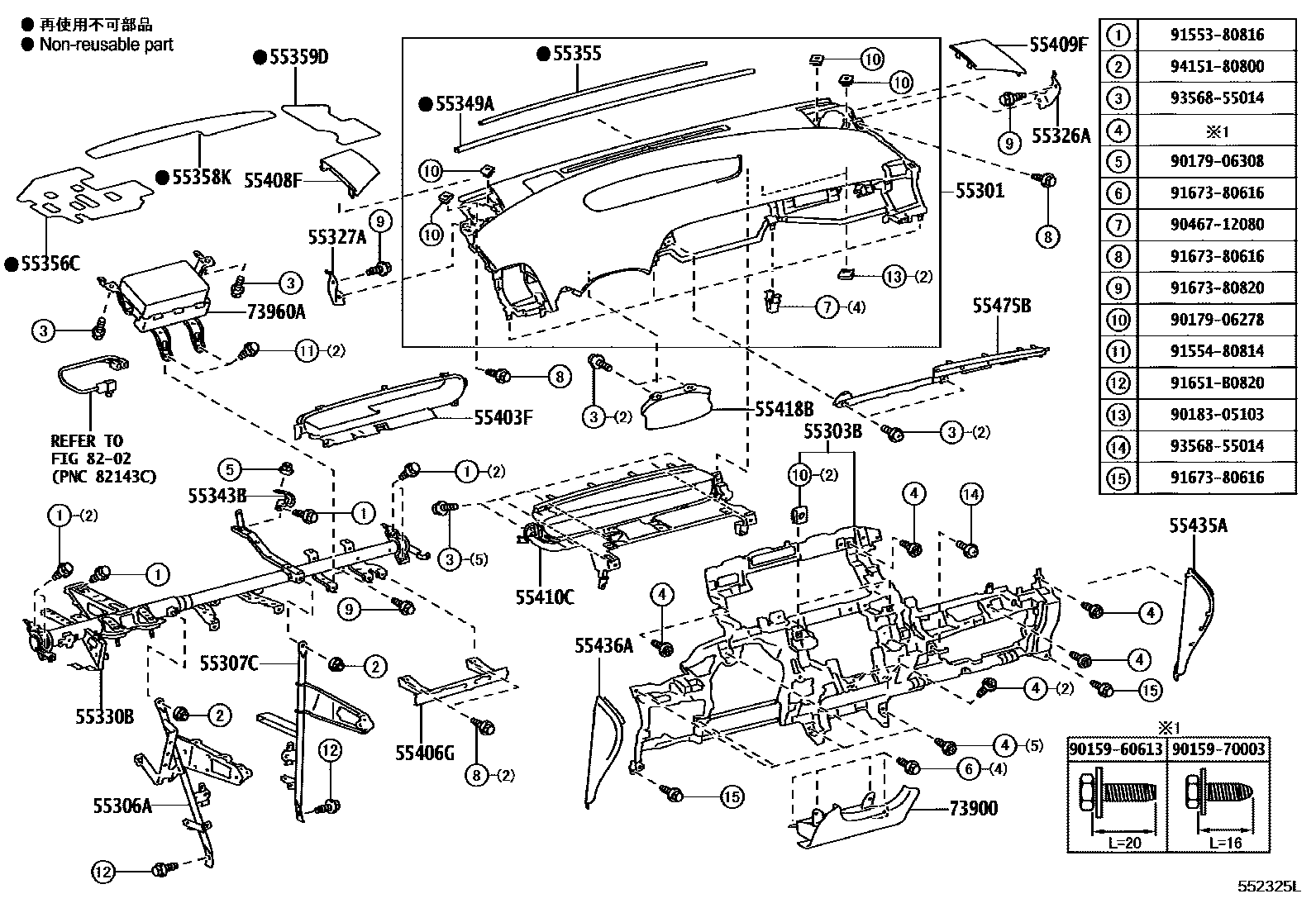

INSTRUMENT PANEL & GLOVE COMPARTMENT

0001 1 0002 1 0003 1 0004 1DRIVER SIDE 0005 1CENTER 0006 1PASSENGER SIDE

55301PANEL SUB-ASSY, INSTRUMENT

main55300-47060-B0iZVW30..G,S200904-201112

MIST GRAY,TRIM6#

main55300-47060-C0iZVW30..L200908-201112

BLACK,TRIM1#

main55300-47060-C0iZVW30..G,S200904-201112

BLACK,TRIM1#,4#

main55300-47200-C0iZVW30..G,S201112-201310

BLACK,TRIM1#,2#

main55300-47200-C0iZVW30..G,S201112-201310

BLACK,TRIM1#,2#,4#,6#

main55300-47290-C0iZVW30..L201310-201511

BLACK,TRIM1#

main55300-47290-C0iZVW30..S..USA201310-201511

BLACK,TRIM1#,2#,4#,6#

main55300-47290-C0iZVW30..S..USA201310-201511

BLACK,TRIM1#,4#,6#

55303BPANEL SUB-ASSY, INSTRUMENT, LOWER

main55303-47050-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main55303-47050-C0iZVW30201112-201310

BLACK,TRIM1#,2#

main55303-47050-E0iZVW30..G,S200904-201310

GREGE,TRIM4#

main55303-47050-G0iZVW30..G,S200904-201310

AQUA,TRIM6#

main55303-47070-C0iZVW30..CND;ZVW30..G,L201310-201511

BLACK,TRIM1#,2#

main55303-47070-C0iZVW30..CND;ZVW30..G,L201310-201511

BLACK,TRIM1#

main55303-47070-E0iZVW30..G,S201310-201511

GREGE,TRIM4#

main55303-47070-G0iZVW30..G,S201310-201511

AQUA,TRIM6#

55306ABRACE SUB-ASSY, INSTRUMENT PANEL, NO.1

main55306-47070iZVW30200904-201112

55307CBRACE SUB-ASSY, INSTRUMENT PANEL, NO.2

main55307-47020iZVW30200904-201112

55326ASTAY, INSTRUMENT PANEL, NO.1

main55326-47030iZVW30200904-201112

55327ASTAY, INSTRUMENT PANEL, NO.2

main55327-47030iZVW30200904-201112

55330BREINFORCEMENT ASSY, INSTRUMENT PANEL

main55330-47090iZVW30200904-201112

main55330-47091iZVW30201112-201206

main55330-47092iZVW30201207-201304

main55330-47093iZVW30201304-201310

main55330-47094iZVW30201310-201511

55343BBRACE, INSTRUMENT PANEL TO COWL, CENTER

main55343-47030iZVW30200904-201112

55349ACUSHION, INSTRUMENT PANEL

main55349-47070iZVW30200904-201112

55355CUSHION, INSTRUMENT PANEL, NO.1

main55355-47040iZVW30200904-201112

main55355-47080iZVW30201112

55356CCUSHION, INSTRUMENT PANEL, NO.2

main55356-47030iZVW30200904-201112

main55356-47070iZVW30201112

55358KCUSHION, INSTRUMENT PANEL, NO.4

main55358-47050iZVW30200904-201112

55359DCUSHION, INSTRUMENT PANEL, NO.5

main55359-47020iZVW30200904-201112

main55359-47030iZVW30201112

55403FPANEL SUB-ASSY, INSTRUMENT PANEL FINISH

main55403-47040iZVW30200904-201511

55406GPLATE SUB-ASSY, INSTRUMENT PANEL SAFETY PAD

main55406-47040iZVW30200904-201112

55408FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.1

main55472-47020-B0iZVW30..G,S200904-201112

MIST GRAY,TRIM6#

main55472-47020-C0iZVW30..G;ZVW30..CND201112-201310

BLACK,TRIM1#,2#

main55472-47020-C0iZVW30..G,S200904-201112

BLACK,TRIM1#,4#

main55472-47020-C0iZVW30..L200908-201511

BLACK,TRIM1#

main55472-47020-C0iZVW30..G;ZVW30..CND201112-201511

BLACK,TRIM1#,2#,4#,6#

main55472-47020-C0iZVW30..G;ZVW30..CND201310-201511

BLACK,TRIM1#,4#,6#

55409FPANEL SUB-ASSY, INSTRUMENT PANEL SPEAKER, NO.2

main55473-47010-B0iZVW30..G,S200904-201112

MIST GRAY,TRIM6#

main55473-47010-C0iZVW30..G,S200904-201112

BLACK,TRIM1#,4#

main55473-47010-C0iZVW30..L200908-201511

BLACK,TRIM1#

main55473-47010-C0iZVW30..G;ZVW30..CND201112-201511

BLACK,TRIM1#,2#,4#,6#

main55473-47010-C0iZVW30..G;ZVW30..CND201112-201310

BLACK,TRIM1#,2#

main55473-47010-C0iZVW30..G;ZVW30..CND201310-201511

BLACK,TRIM1#,4#,6#

55410CPANEL ASSY, INSTRUMENT CLUSTER FINISH

main55410-47090iZVW30200904-201112

55418BSPACER,METER HOOD

main55418-47020iZVW30200904-201112

55435APANEL, INSTRUMENT PANEL FINISH, END RH

main55435-47010-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main55435-47010-C0iZVW30201112-201511

BLACK,TRIM1#,2#

main55435-47010-E0iZVW30..G,S200904-201511

GREGE,TRIM4#

main55435-47010-G0iZVW30..G,S200904-201511

AQUA,TRIM6#

55436APANEL, INSTRUMENT PANEL FINISH, END LH

main55436-47010-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main55436-47010-C0iZVW30201112-201511

BLACK,TRIM1#,2#

main55436-47010-E0iZVW30..G,S200904-201511

GREGE,TRIM4#

main55436-47010-G0iZVW30..G,S200904-201511

AQUA,TRIM6#

55475BGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

main55475-47060iZVW30200904-201112

main55475-47110iZVW30201112

73900AIRBAG ASSY, INSTRUMENT PANEL, LOWER NO.1

main73900-47020-B0iZVW30200904-201112

MD.GRAY,TRIM1#

main73900-47020-C0iZVW30201112-201511

BLACK,TRIM1#,2#

main73900-47020-E0iZVW30..G,S200904-201511

GREGE,TRIM4#

main73900-47020-G0iZVW30..G,S200904-201511

AQUA,TRIM6#

73960AAIRBAG ASSY, INSTRUMENT PANEL PASSENGER W/O DOOR

main73960-47060iZVW30200904-201112

8202WIRING & CLAMP

→ Go to FIG 82-02

9015960613

main90159-60613

9015970003

main90159-70003

9017906278

main90179-06278

9017906308

main90179-06308

9018305103

main90183-05103

9046712080

main90467-12080

9155380816

main91553-80816

9155480814

main91554-80814

91651B0820

main91651-B0820

9167380616

main91673-80616

9167380820

main91673-80820

9356855014

main93568-55014

9415180800

main94151-80800

38 parts on this diagram · 6 diagrams in section
