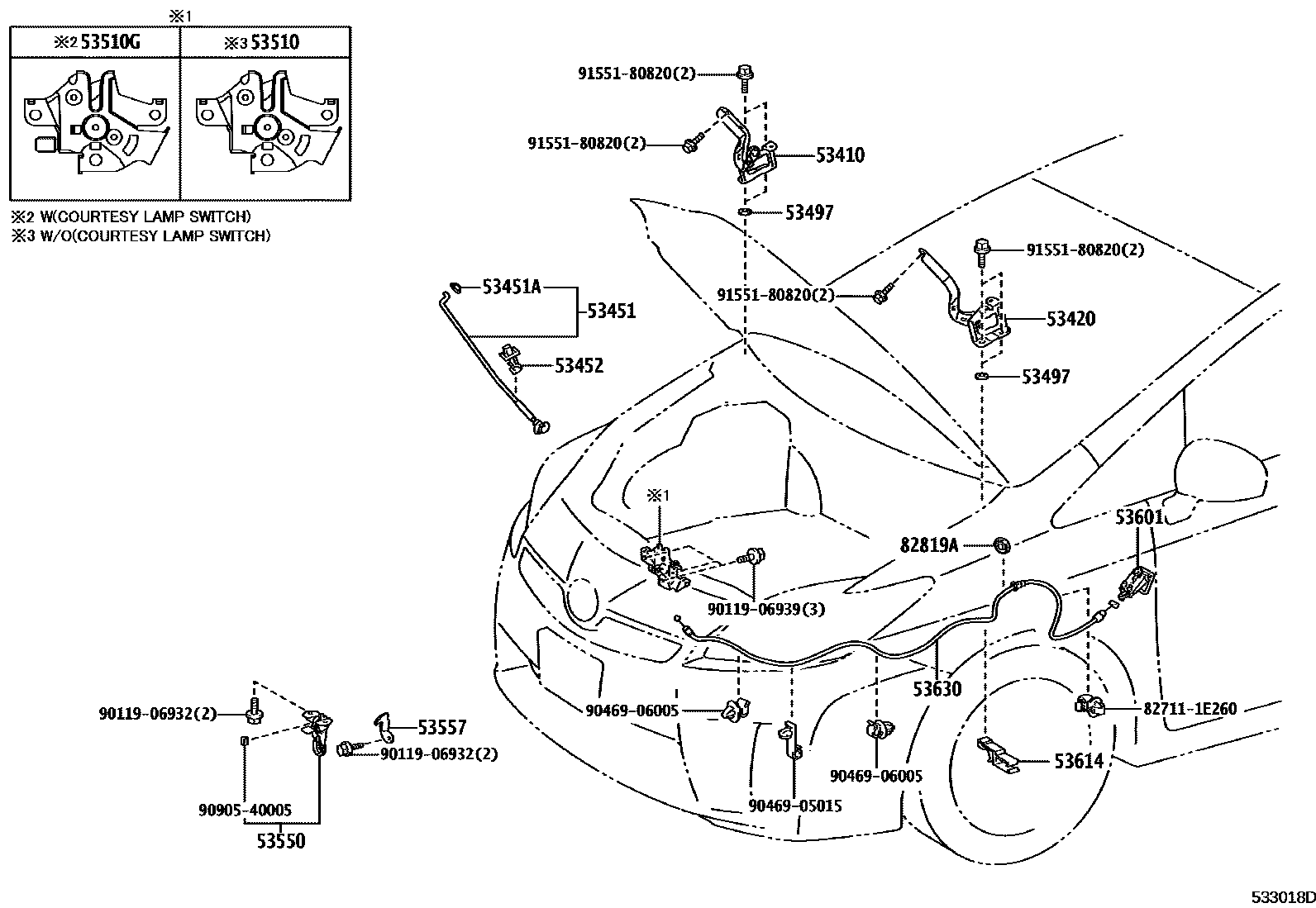

HOOD LOCK & HINGE

53410HINGE ASSY, HOOD, RH

main53410-47070iZVW30200904-201112

53420HINGE ASSY, HOOD, LH

main53420-47070iZVW30200904-201112

53451ROD, HOOD SUPPORT

main53440-47030iZVW30200904-200907

main53440-47031iZVW30200908-201112

53451AGROMMET(FOR HOOD SUPPORT ROD)

main90480-15025iZVW30200904-201112

53452HOLDER, HOOD STAY

main53452-47010iZVW30200904-201112

53497PAD, HOOD HINGE, NO.1

main53497-20070×4iZVW30200904-201112

T=2.0

main53497-42010×4iZVW30201112

T=0.5

53510LOCK ASSY, HOOD

main53510-47090iZVW30200904-201105

main53510-47091iZVW30201112-201206

main53510-47092iZVW30201207-201511

53510GLOCK ASSY, HOOD, W/COURTESY LAMP SWITCH

main53510-47100iZVW30..G,S200904-201105

MOON ROOF-WITH(SOLAR PANEL)

main53510-47101iZVW30..G,S201106-201112

MOON ROOF-WITH(SOLAR PANEL)

main53510-47102iZVW30..G,S201207-201511

MOON ROOF-WITH(SOLAR PANEL)

53550HOOK ASSY, HOOD AUXILIARY CATCH

main53550-47010iZVW30200904-201102

main53550-47011iZVW30201103-201112

53557CATCH, HOOD AUXILIARY HOOK

main53557-47010iZVW30200904-201112

53601LEVER SUB-ASSY, HOOD LOCK CONTROL

main53601-52010-B6iZVW30200904-201112

MD.GRAY,TRIM1#

main53601-52010-C0iZVW30201112-201511

BLACK,TRIM1#,2#

main53601-52010-E4iZVW30..G,S200904-201112

GREGE,TRIM4#

main53601-52010-G1iZVW30..G,S201112-201511

AQUA,TRIM6#

53614CLAMP, HOOD LOCK CONTROL CABLE

main53614-47020iZVW30200904-200907

main53614-47030iZVW30200908-201112

53630CABLE ASSY, HOOD LOCK CONTROL

main53630-47040iZVW30200904-201112

82819AGROMMET, WIRE

main82817-1A810×2iZVW30201112

main82817-47G30×2iZVW30200909-201101

827111E260WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E260

9011906932

main90119-06932

9011906939

main90119-06939

9046905015

main90469-05015

9046906005

main90469-06005

9090540005

main90905-40005

9155180820

main91551-80820

21 parts on this diagram · 1 diagram in section
