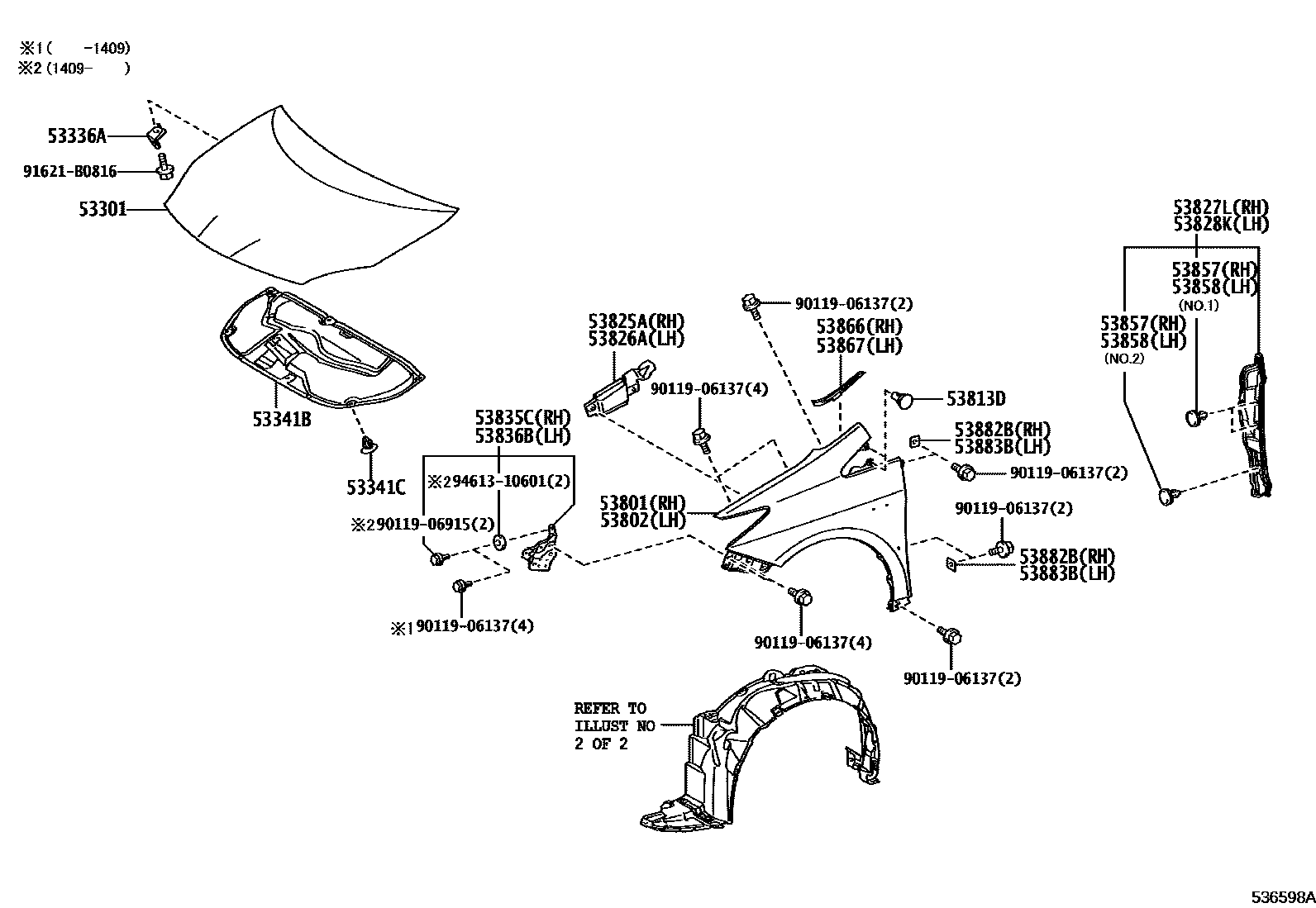

HOOD & FRONT FENDER

0001 1 0002 1FENDER LINER

53301HOOD SUB-ASSY

main53301-47050iZVW30..USA200904-201210

main53301-47060iZVW30..CND200904-201511

53336ABRACKET, HOOD STAY

main53336-47010iZVW30200904-201112

53341BINSULATOR, HOOD

main53341-47020iZVW30200904-201112

53341CCLIP(FOR HOOD INSULATOR)

main90467-09050iZVW30200904-201112

53801FENDER SUB-ASSY, FRONT RH

main53801-47040iZVW30..USA200904-201210

main53801-47050iZVW30..USA200904-201511

53802FENDER SUB-ASSY, FRONT LH

main53802-47040iZVW30..USA200904-201210

main53802-47050iZVW30..USA200904-201511

53813DEXTENSION, FRONT FENDER

main53813-47040iZVW30200904-201511

53825APROTECTOR, FRONT FENDER, UPPER RH

main53825-47010iZVW30200904-201112

53826APROTECTOR, FRONT FENDER, UPPER LH

main53826-47010iZVW30200904-201112

53827LPROTECTOR, FRONT FENDER SIDE PANEL, RH

main53827-47030iZVW30200904-201112

53828KPROTECTOR, FRONT FENDER SIDE PANEL, LH

main53828-47030iZVW30200904-201309

sub53828-47060

main53828-47060iZVW30201310

53835CBRACKET, FRONT SIDE PANEL, RH

main53803-47020iZVW30201409-201511

main53835-47010iZVW30200904-201409

sub53803-47020

53836BBRACKET, FRONT SIDE PANEL, LH

main53804-47020iZVW30201409-201511

main53836-47010iZVW30200904-201409

sub53804-47020

53857RETAINER, FRONT WHEEL OPENING EXTENSION, RH

main53857-47011iZVW30200904-201112

NO.2

main53857-47020iZVW30200904-201112

NO.1

53858RETAINER, FRONT WHEEL OPENING EXTENSION, LH

main53857-47011iZVW30200904-201112

NO.2

main53857-47020iZVW30200904-201112

NO.1

53866SEAL, FRONT FENDER TO COWL SIDE, RH

main53866-47020iZVW30200904-201112

53867SEAL, FRONT FENDER TO COWL SIDE, LH

main53867-47030iZVW30200904-201112

53882BSEAL, FRONT FENDER, RH

main53882-16030iZVW30200904-201112

53883BSEAL, FRONT FENDER, LH

main53882-16030iZVW30200904-201112

9011906137

main90119-06137

9011906915

main90119-06915

91621B0816

main91621-B0816

9461310601

main94613-10601

23 parts on this diagram · 2 diagrams in section
