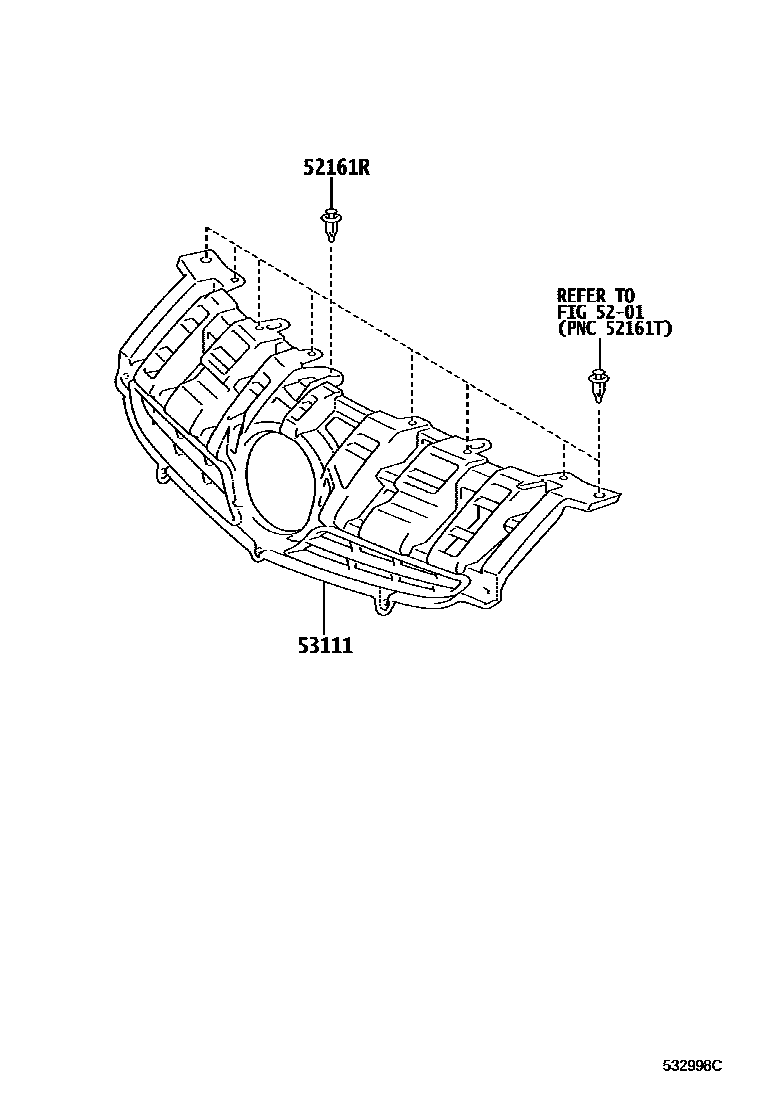

RADIATOR GRILLE

0001 1 0002 1

5201FRONT BUMPER & BUMPER STAY

→ Go to FIG 52-01

52161RPIECE, FRONT BUMPER

main52161-16010iZVW30200904-201112

53111GRILLE, RADIATOR

main53111-47020iZVW30200904-201112

NO PAINT REQ.

main53111-47040iZVW30201112

NO PAINT REQ.

3 parts on this diagram · 2 diagrams in section
