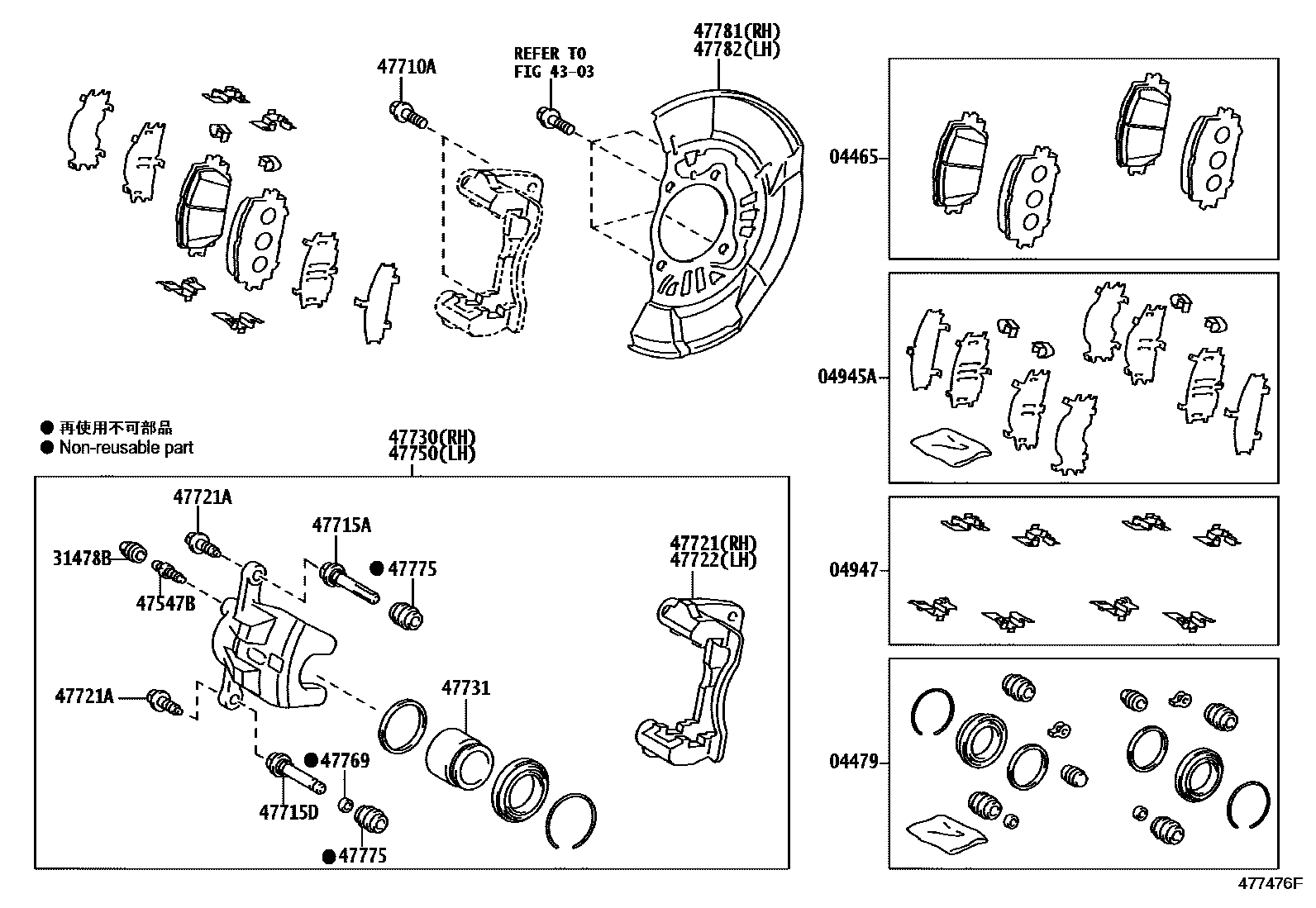

FRONT DISC BRAKE CALIPER & DUST COVER

04465PAD KIT, DISC BRAKE, FRONT

main04465-47060iZVW30200904-201105

MARK ADVICS PV565H

main04465-47070iZVW30201105-201112

MARK ADVICS PV565H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-47010iZVW30200904-201011

main04478-47040iZVW30201011-201112

04945ASHIM KIT, ANTI SQUEAL, FRONT(WITH PAD WEAR INDICATOR)

main04945-47020iZVW30200904-201112

04947FITTING KIT, DISC BRAKE, FRONT

main04947-42050iZVW30200904-201112

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-50020×2iZVW30200904-201112

4303

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-20010×2iZVW30200904-201112

47710ABOLT, HEXAGON(FOR FRONT DISC BRAKE CALIPER)

main91552-C1250×4iZVW30200904-201112

*12-1.25PX50-30

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47715-52190×2iZVW30200904-201112

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-12A10×2iZVW30200904-201112

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-47060iZVW30200904-201112

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-08164×4iZVW30200904-201112

*8-1.00PX23-15

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-47060iZVW30200904-201112

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-47060iZVW30200904-201112

47731PISTON, FRONT DISC BRAKE

main47731-47060×2iZVW30200904-201112

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-47060iZVW30200904-201112

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-50010×2iZVW30200904-201112

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-52190×4iZVW30200904-201112

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-47030iZVW30200904-201112

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-47020iZVW30200904-201112

20 parts on this diagram · 1 diagram in section
