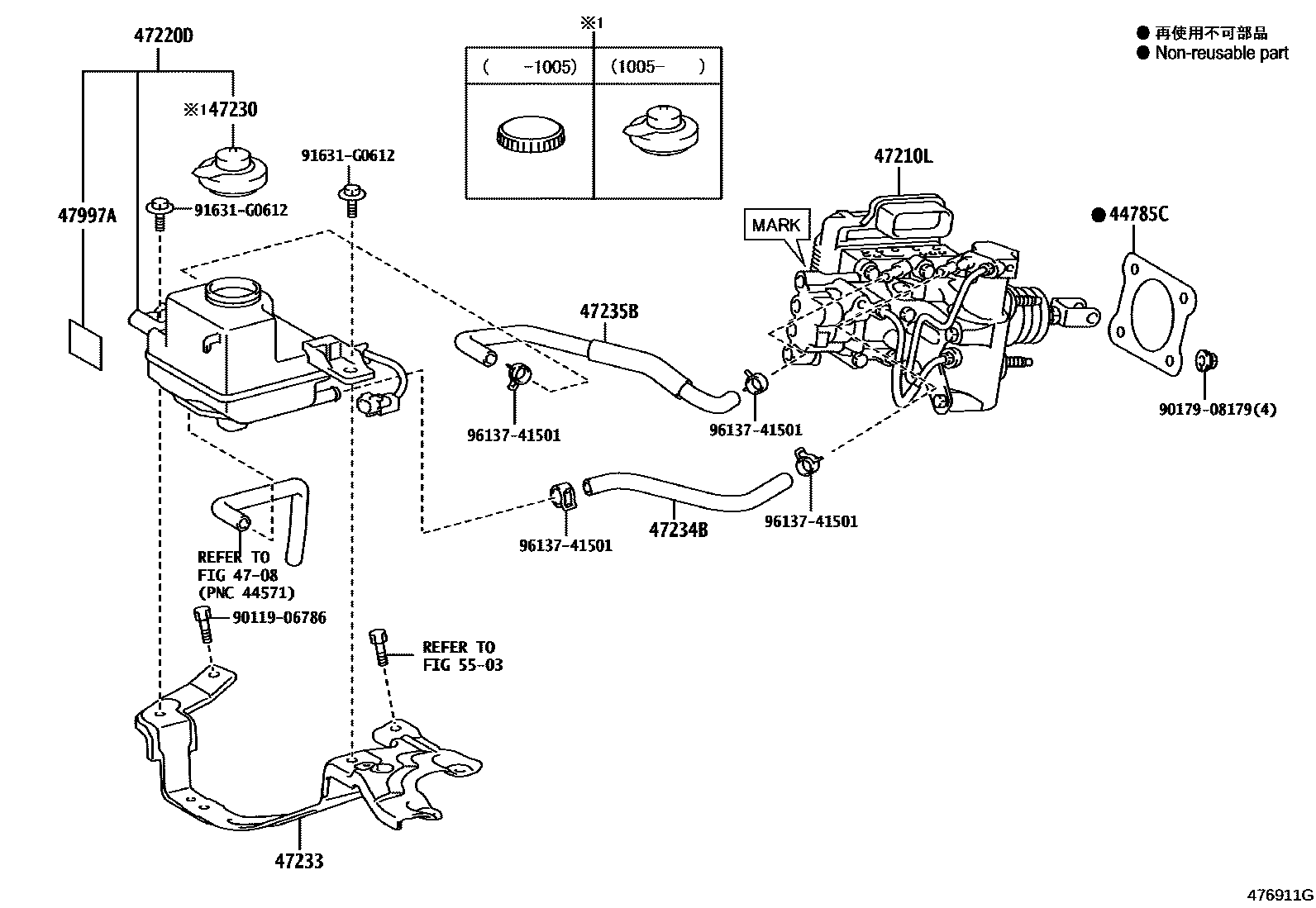

BRAKE MASTER CYLINDER

44785CGASKET, BRAKE BOOSTER

main44785-12040i200904-201112

4708BRAKE TUBE & CLAMP

47210LBRAKE BOOSTER ASSY, W/MASTER CYLINDER

main47050-47060i200904-201006

MARK=47210-47140

main47050-47140i201007-201112

MARK=47210-47310

main47050-47180i201112-201310

MARK=47210-47350

MARK=47210-47470

main47050-47070i200904-201006

MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,MARK=47210-47150; TIRE & DISC WHEEL-215/45R17 7J,MARK=47210-47150

main47050-47150i201007-201112

MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES,MARK=47210-47320; TIRE & DISC WHEEL-215/45R17 7J,MARK=47210-47320

main47050-47190i201112-201310

MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,MARK=47210-47360; TIRE & DISC WHEEL-215/45R17 7J ALMINUM,MARK=47210-47360

MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J ALUMINUM GENERAL COUNTRY,MARK=47210-47480; TIRE & DISC WHEEL-215/45R17 7J ALMINUM,MARK=47210-47480

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-47060i200904-201004

main47220-47080i201005-201112

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-20140i201005-201112

main47230-58010i200904-201005

47233BRACKET, RESERVOIR

main47233-47050i200904-201112

47234BTUBE, RESERVOIR, NO.1

main47234-47060i200904-201112

47235BTUBE, BRAKE MASTER CYRINDER RESERVOIR, NO.2

main47235-47060i200904-201112

47997ALABEL, ACCUMULATOR CAUTION, NO.1

main47997-47020i200904-200911

main47997-47030i200912-201103

main47997-76010i201104-201112

5503COWL PANEL & WINDSHIELD GLASS

9011906786

9017908179

91631G0612

9613741501

14 parts on this diagram · 1 diagram in section
