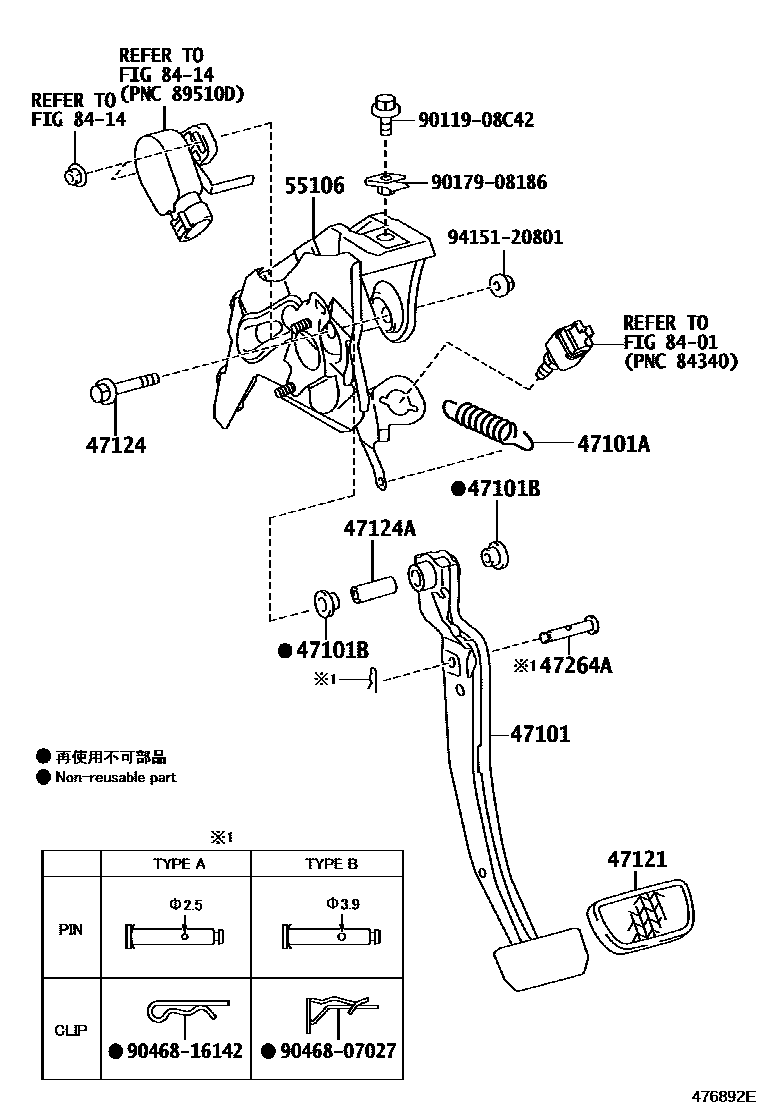

BRAKE PEDAL & BRACKET

0001 1 0002 1

47101PEDAL SUB-ASSY, BRAKE

main47101-75021iZVW30200904-201108

main47101-75022iZVW30201108-201112

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-14050iZVW30200904-201112

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015×2iZVW30200904-201112

47121PAD, BRAKE PEDAL

main47121-42010iZVW30200904-201112

main47121-50020iZVW30201112

47124SHAFT, BRAKE PEDAL

main47124-47010iZVW30200904-201112

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main47144-47010iZVW30200904-201112

47264APIN(FOR PUSH ROD)

main47148-47020iZVW30200904-201112

TYPE A:REFER ILLUST.

main47148-47030iZVW30200904-201112

TYPE B:REFER ILLUST.

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-75020iZVW30200904-200908

main55106-75021iZVW30200909-201108

main55106-76020iZVW30201108-201112

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8414ABS & VSC

→ Go to FIG 84-14

9011908C42

main90119-08C42

9017908186

main90179-08186

9046807027

main90468-07027

9046816142

main90468-16142

9415120801

main94151-20801

15 parts on this diagram · 2 diagrams in section
