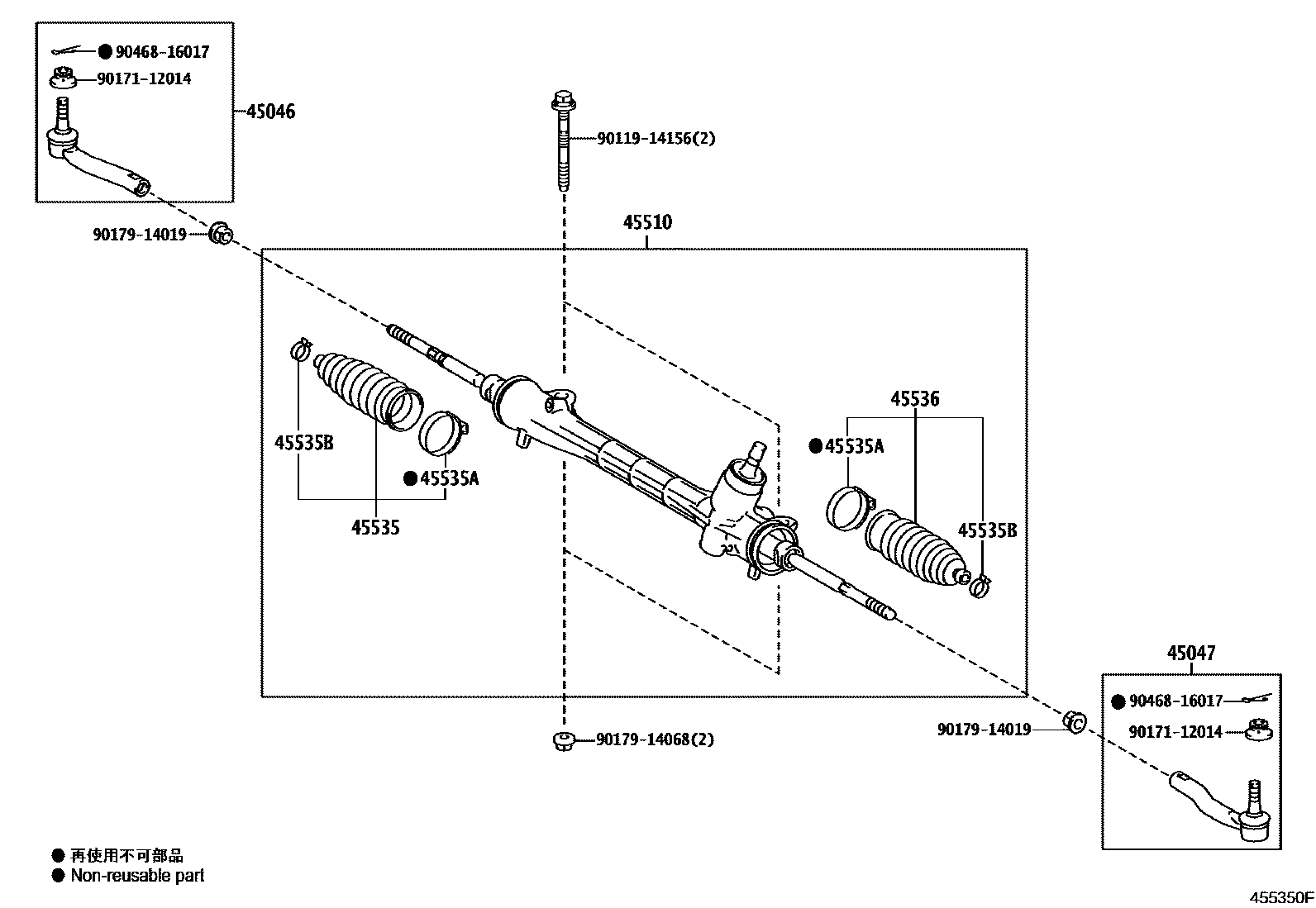

FRONT STEERING GEAR & LINK

45046END SUB-ASSY, TIE ROD, RH

45047END SUB-ASSY, TIE ROD, LH

main45047-49165i200904-201112

45510GEAR ASSY, STEERING

main45510-47040i200904-201112

main45510-47050i200904-201112

MEXICO SPEC&TIRE & DISC WHEEL-195/65R15 6J GENERAL COUNTRIES; TIRE & DISC WHEEL-215/45R17 7J

45535BOOT, STEERING RACK, NO.1

main45535-49015i200904-201112

45535ACLAMP(FOR STEERING RACK BOOT)

main45538-47010×2i200904-201112

45535BCLIP(FOR STEERING RACK BOOT)

main90467-19021×2i200904-201112

45536BOOT, STEERING RACK, NO.2

main45535-49015i200904-201112

9011914156

9017112014

9017914019

9017914068

9046816017

12 parts on this diagram · 1 diagram in section
