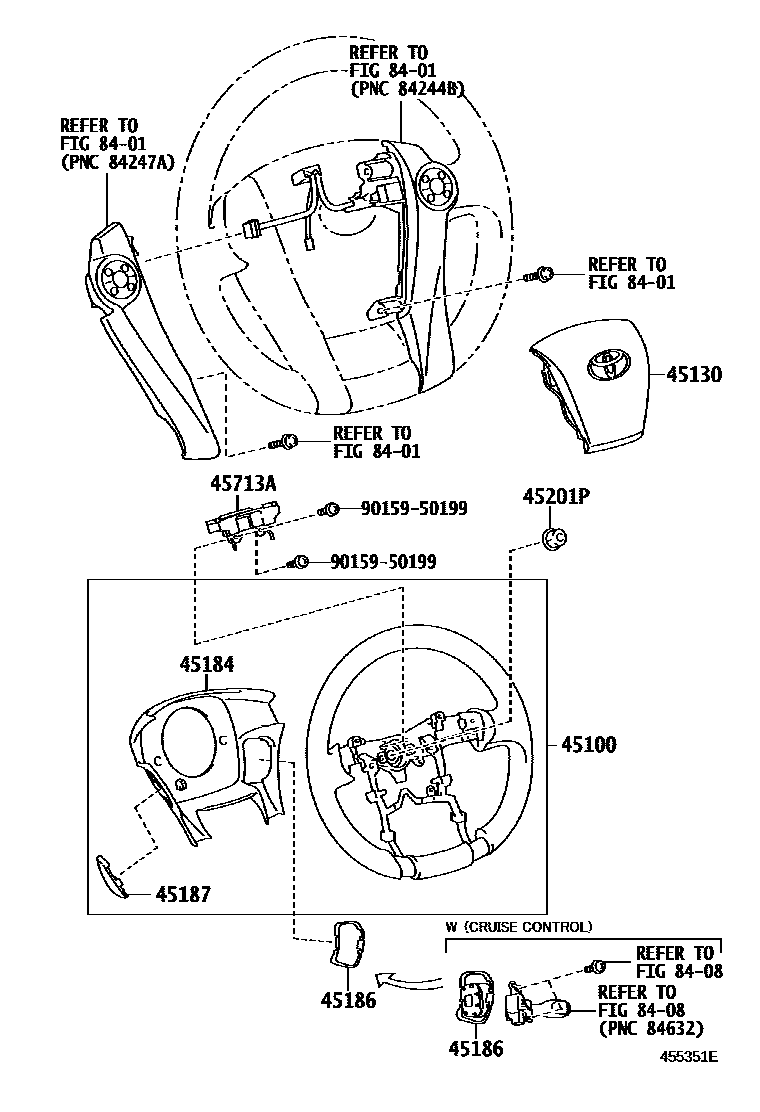

STEERING WHEEL
45100WHEEL ASSY, STEERING
4-SPOKE,URETHANE,BLACK,TRIM1#,2#; 4-SPOKE,URETHANE,BLACK,TRIM1#,2#,4#,6#
4-SPOKE,LEATHER,MIST GRAY,TRIM6#; 4-SPOKE,LEATHER,SEAT COVER MATERIAL-NATURAL LEATHER,MIST GRAY,TRIM6#
4-SPOKE,LEATHER,BLACK,TRIM1#,4#; 4-SPOKE,LEATHER,SEAT COVER MATERIAL-NATURAL LEATHER,BLACK,TRIM1#,4#
4-SPOKE,LEATHER,BLACK,TRIM1#,2#,4#,6#; 4-SPOKE,LEATHER,SEAT COVER MATERIAL-SYNTHETIC LEATHER,BLACK,TRIM1#,2#,4#,6#
45130BUTTON ASSY, HORN
MIST GRAY,TRIM6#
BLACK,TRIM1#,2#; BLACK,TRIM1#,2#,4#,6#
45184COVER, STEERING WHEEL BOSS, LOWER
MIST GRAY,TRIM6#
BLACK,TRIM1#
45186COVER, STEERING WHEEL, LOWER NO.2
MIST GRAY,TRIM6#
BLACK,TRIM1#,4#
45187COVER, STEERING WHEEL, LOWER NO.3
MIST GRAY,TRIM6#
BLACK,TRIM1#,4#
45201PNUT, STEERING WHEEL SET
45713ADAMPER, STEERING SHAKE
8401SWITCH & RELAY & COMPUTER
8408CRUISE CONTROL (AUTO DRIVE)
9015950199
main90159-50199
10 parts on this diagram · 1 diagram in section
