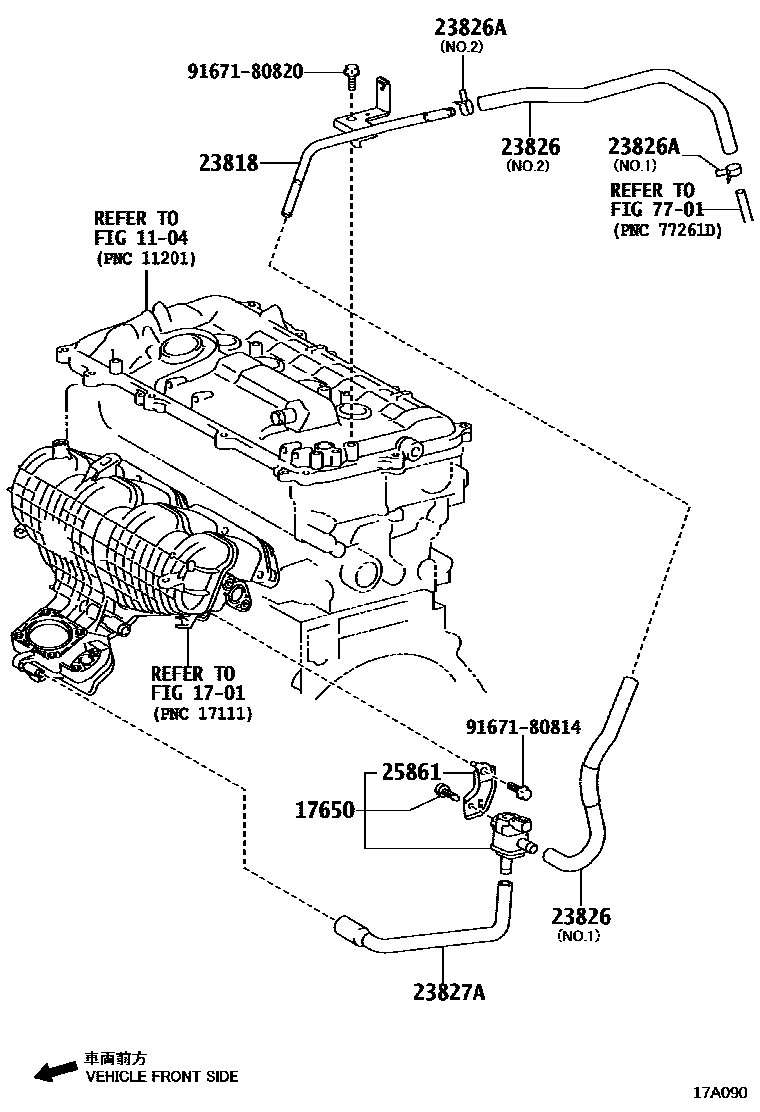

VACUUM PIPING

1104CYLINDER HEAD

→ Go to FIG 11-04

1701MANIFOLD

→ Go to FIG 17-01

17650VALVE ASSY, VACUUM SWITCHING

main25860-37020i2ZRFXE..ZVW30200904-201112

23818PIPE, FUEL VAPOR FEED

main23818-37010i2ZRFXE..ZVW30200904-201112

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-37090i2ZRFXE..ZVW30200904-201112

NO.2

main23826-37130i2ZRFXE..ZVW30201112-201511

NO.1

23826ACLIP(FOR FUEL VAPOR FEED HOSE, NO.1)

main90467-19021i2ZRFXE..ZVW30200904-201112

NO.1

main96134-51700i2ZRFXE..ZVW30200904-201005

NO.2

main96136-41901i2ZRFXE..ZVW30201006-201112

NO.2

23827AHOSE, FUEL VAPOR FEED, NO.2

main23827-37040i2ZRFXE..ZVW30200904-201112

25861BRACKET, VACUUM SWITCHING VALVE

main25861-37020i2ZRFXE..ZVW30200904-201112

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9167180814

main91671-80814

9167180820

main91671-80820

11 parts on this diagram · 1 diagram in section
