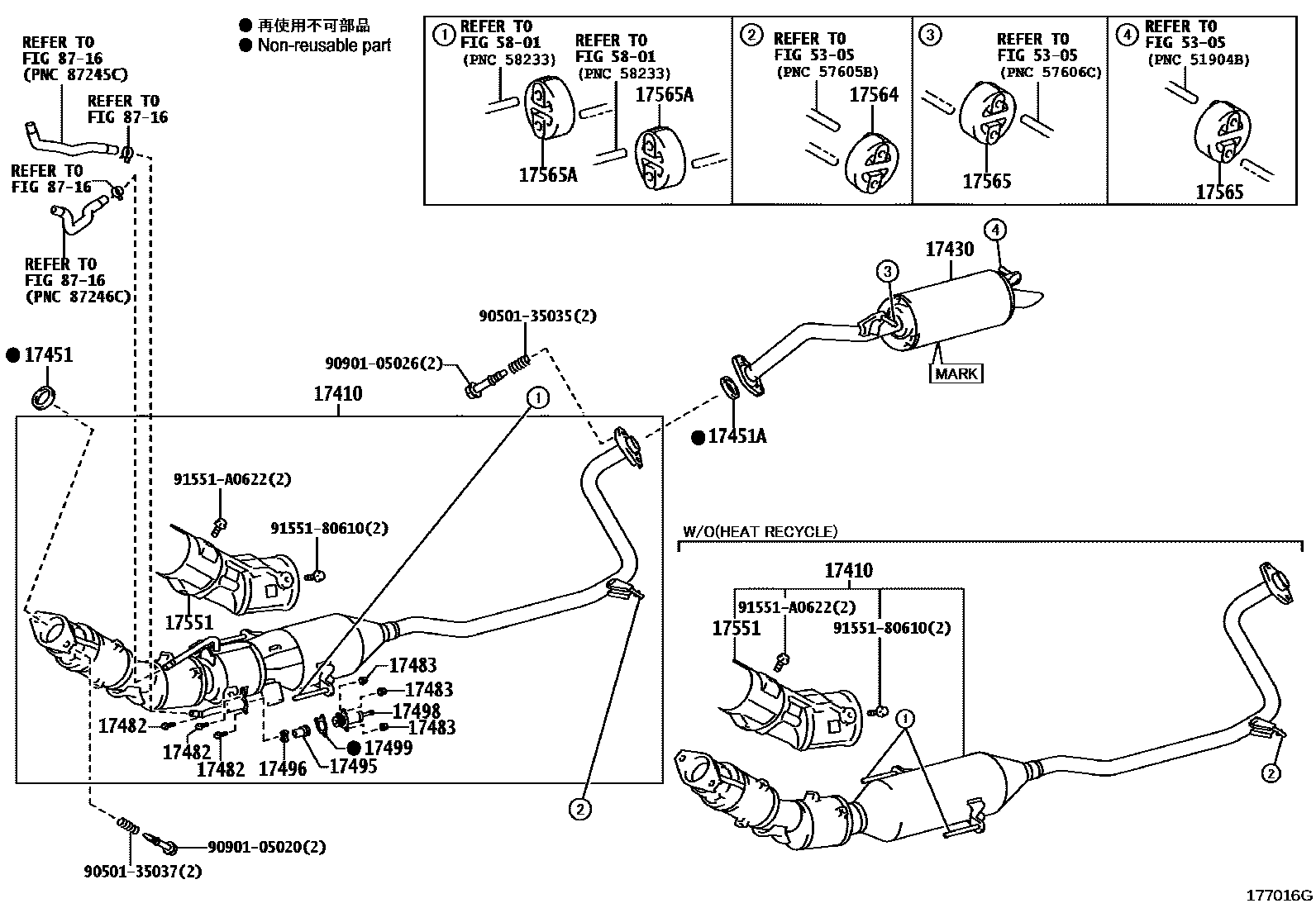

EXHAUST PIPE

17410PIPE ASSY, EXHAUST, FRONT

main17410-37300i2ZRFXE..ZVW30200904-201112

*114=TOYOTA/GP1TB1/Y

main17410-37160i2ZRFXE..ZVW30..(G,S)..USA201112

*114=*405,SUB MUFFLER-WITHOUT HEAT RECYCLE

17430PIPE ASSY, EXHAUST, TAIL

main17430-37300i2ZRFXE..ZVW30201112

MARK 13715

main17430-37380i2ZRFXE..ZVW30..(G,S)..USA201112

MUFFLER-GENERAL COUNTRY SPEC,MARK 13716

17451GASKET, EXHAUST PIPE

main17451-28040i2ZRFXE..ZVW30200904-201112

17451AGASKET, EXHAUST PIPE, NO.2

main17451-23041i2ZRFXE..ZVW30200904-201009

main17451-23042i2ZRFXE..ZVW30201010-201112

17482BOLT, EXHAUST PIPE GAS CONTROL ACTUATOR

main17482-47010×3i2ZRFXE..ZVW30200904-201112

17483NUT, EXHAUST PIPE GAS CONTROL ACTUATOR

main17483-47010×3i2ZRFXE..ZVW30201112

17495ACTUATOR, EXHAUST PIPE GAS CONTROL

main17495-47010i2ZRFXE..ZVW30200904-201112

17496STOPPER, EXHAUST PIPE GAS CONTROL ACTUATOR

main17496-47010i2ZRFXE..ZVW30200904-201112

17498CASE, EXHAUST PIPE GAS CONTROL ACTUATOR

main17498-47010i2ZRFXE..ZVW30200904-201112

17499GASKET, EXHAUST PIPE GAS CONTROL ACTUATOR

main17499-47010i2ZRFXE..ZVW30200904-201112

17551INSULATOR, EXHAUST PIPE HEAT, NO.1

main17551-37030i2ZRFXE..ZVW30200904-201112

17564SUPPORT,EXHAUST PIPE, NO.4

main17565-22030i2ZRFXE..ZVW30200904-201112

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-22040×2i2ZRFXE..ZVW30200904-201112

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-28010×2i2ZRFXE..ZVW30200904-201112

5305FLOOR SIDE MEMBER

→ Go to FIG 53-05

5801FLOOR PAN & LOWER BACK PANEL

→ Go to FIG 58-01

8716HEATING & AIR CONDITIONING - WATER PIPING

→ Go to FIG 87-16

9050135035

main90501-35035

9050135037

main90501-35037

9090105020

main90901-05020

9090105026

main90901-05026

9155180610

main91551-80610

91551A0622

main91551-A0622

23 parts on this diagram · 1 diagram in section
