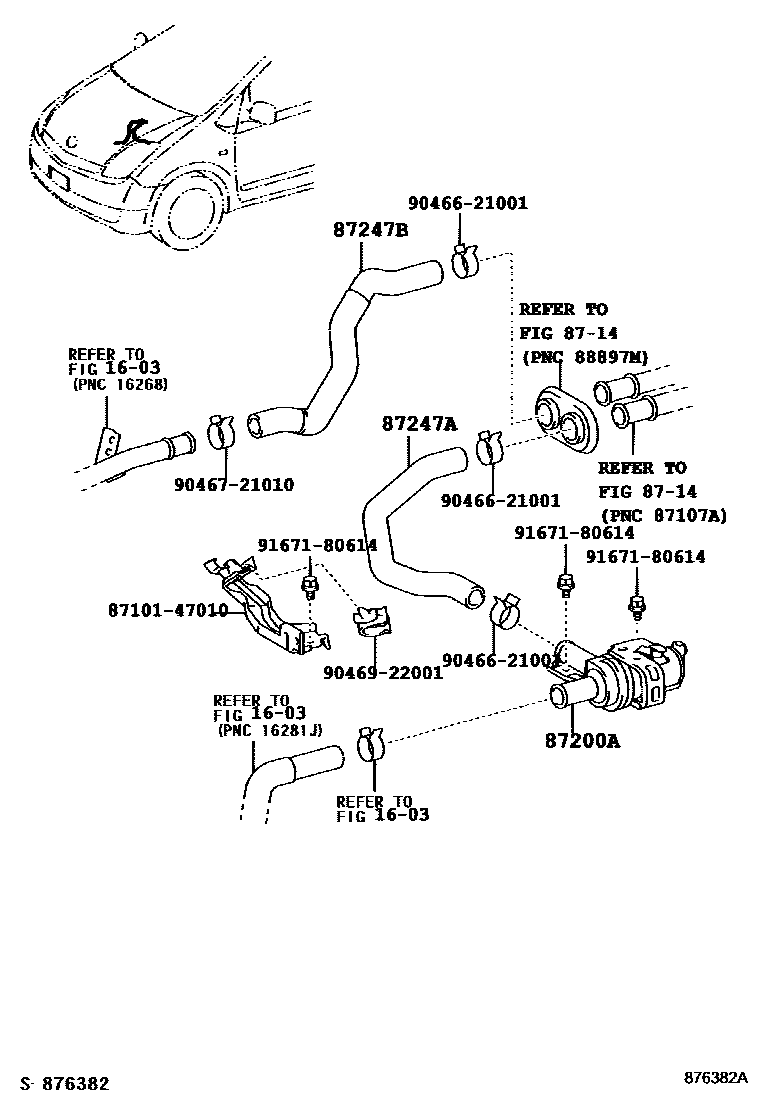

HEATING & AIR CONDITIONING - WATER PIPING

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87200APUMP ASSY, WATER(FOR HEATER)

main87200-47030iNHW20200308-200511

87247AHOSE, HEATER WATER, A

main87245-47230iNHW20200308-200511

87247BHOSE, HEATER WATER, B

main87245-47240iNHW20200308-200511

8710147010BRACKET SUB-ASSY, VISCOUS HEATER NO.1

main87101-47010

9046621001

main90466-21001

9046721010

main90467-21010

9046922001

main90469-22001

9167180614

main91671-80614

10 parts on this diagram · 1 diagram in section
