E
EPC Data

SEAT BELT & CHILD RESTRAINT SEAT

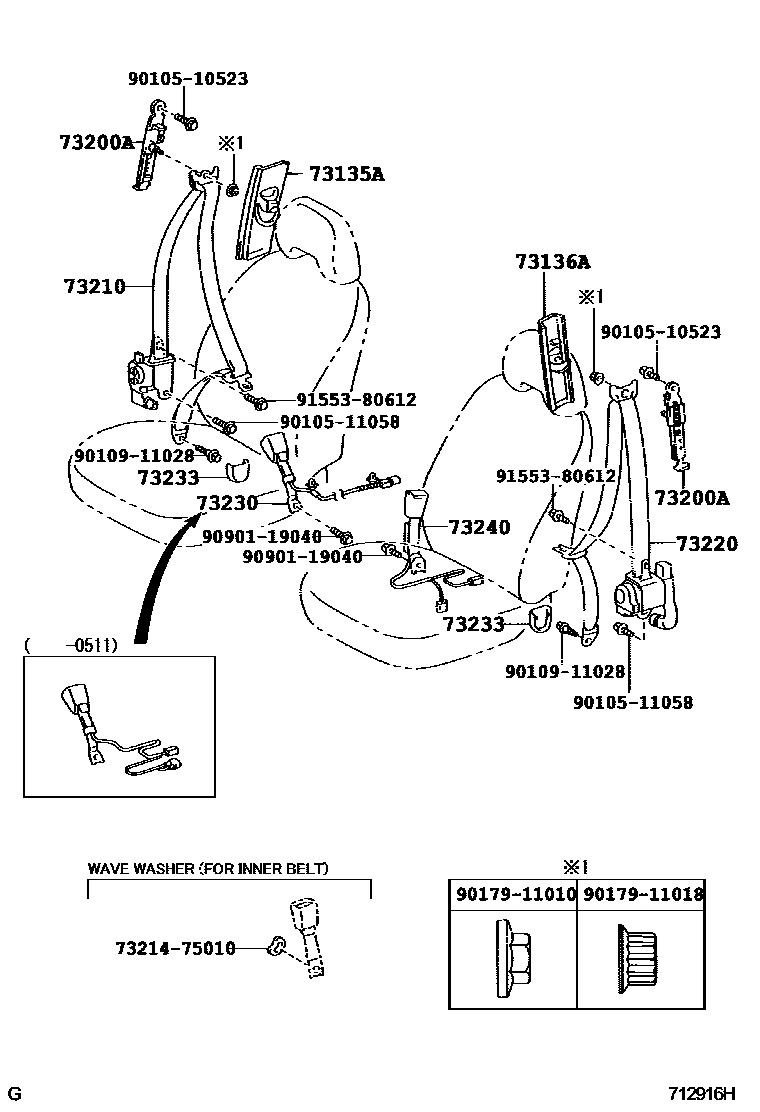

Parts diagram
73135ACOVER, SHOULDER BELT ANCHOR, RH
main73023-33010-A0i200308-200511
IVORY,TRIM0#
main73023-33010-B2i200308-200511
GRAY,TRIM1#
main73023-33010-E1i200511-200903
GREGE,TRIM4#
73136ACOVER, SHOULDER BELT ANCHOR, LH
main73024-33010-A0i200308-200511
IVORY,TRIM0#
main73024-33010-B2i200308-200511
GRAY,TRIM1#
main73024-33010-E1i200511-200903
GREGE,TRIM4#
73200AADJUSTER ASSY, FRONT SHOULDER BELT ANCHOR
main73200-51020×2i200308-200511
73210BELT ASSY, FRONT SEAT OUTER, RH
main73210-47060-A0i200308-200511
IVORY,TRIM0#
main73210-47060-B0i200308-200511
GRAY,TRIM1#
main73210-47060-E0i200511-200903
GREGE,TRIM4#
73220BELT ASSY, FRONT SEAT OUTER, LH
main73220-47050-A0i200308-200311
IVORY,TRIM0#
main73220-47050-B0i200308-200311
GRAY,TRIM1#
main73220-47051-A0i200311-200511
IVORY,TRIM0#
main73220-47051-B0i200311-200511
GRAY,TRIM1#
main73220-47051-E0i200511-200903
GREGE,TRIM4#
73230BELT ASSY, FRONT SEAT INNER, RH
main73230-47080-A0i200308-200311
IVORY,TRIM0#
main73230-47080-B0i200308-200311
MD.GRAY,TRIM1#
main73230-47081-A0i200311-200511
IVORY,TRIM0#
main73230-47081-B0i200311-200511
MD.GRAY,TRIM1#
main73230-47090-B0i200511-200903
MD.GRAY,TRIM1#
main73230-47090-E0i200511-200903
GREGE,TRIM4#
73233COVER, LAP BELT OUTER ANCHOR
main73233-33010-A1×2i200308-200511
IVORY,TRIM0#
main73233-33010-B8×2i200511-200903
DK.GRAY,TRIM1#
main73233-33010-E6×2i200511-200903
GREGE,TRIM4#
main73233-33010-P2×2i200308-200511
MD.GRAY,TRIM1#
73240BELT ASSY, FRONT SEAT INNER, LH
main73240-47050-A0i200308-200311
IVORY,TRIM0#
main73240-47050-B0i200308-200311
MD.GRAY,TRIM1#
main73240-47051-A0i200311-200511
IVORY,TRIM0#
main73240-47051-B0i200311-200511
MD.GRAY,TRIM1#
main73240-47051-E0i200511-200903
GREGE,TRIM4#
7321475010PLATE, FRONT SEAT BELT ANCHOR
main73214-75010
9010510523
main90105-10523
9010511058
main90105-11058
9010911028
main90109-11028
9017911010
main90179-11010
9017911018
main90179-11018
9090119040
main90901-19040
9155380612
main91553-80612

16 parts on this diagram · 2 diagrams in section

SEAT BELT & CHILD RESTRAINT SEAT — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
