INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING

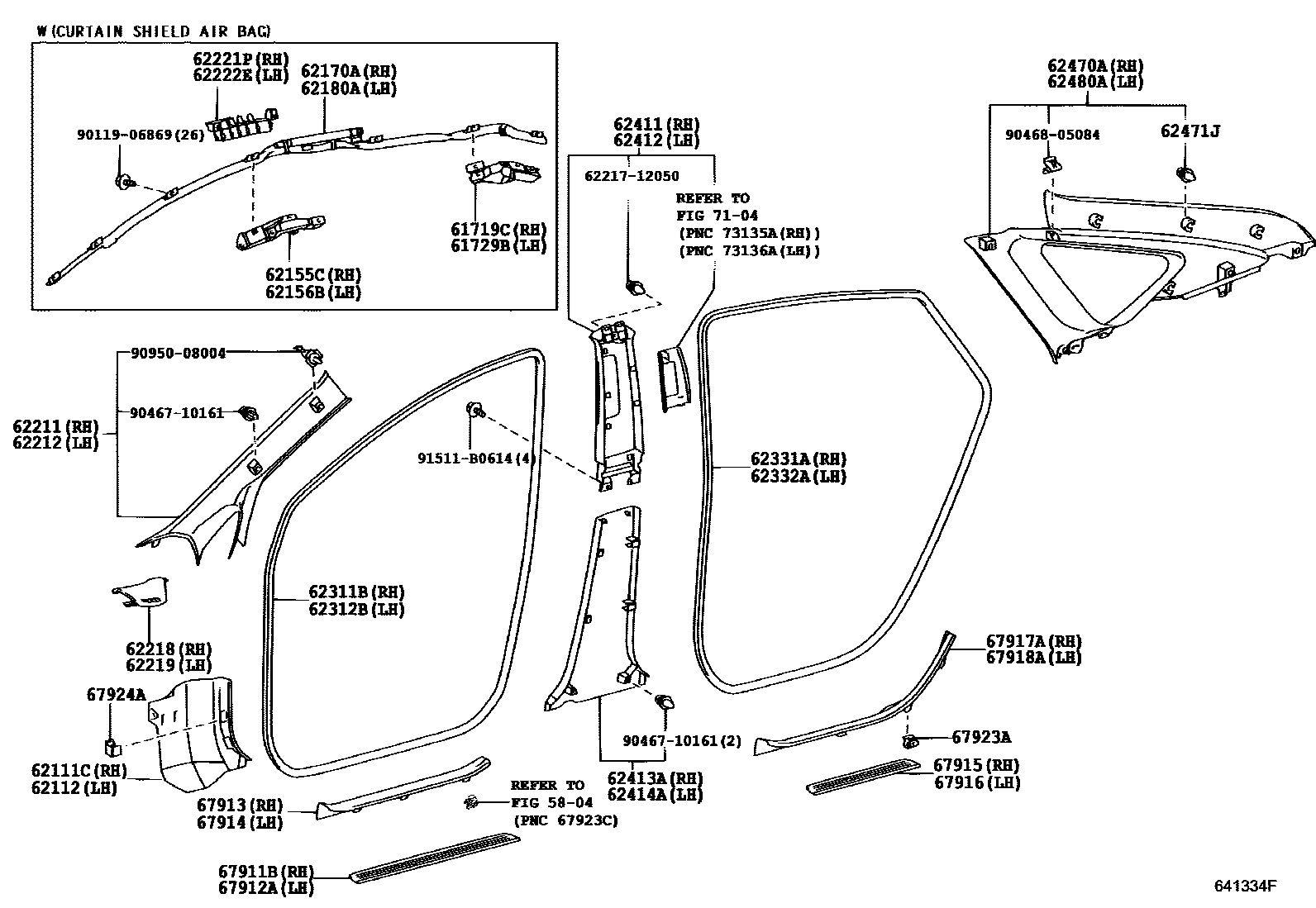

Parts diagram
5804MAT & CARPET
→ Go to FIG 58-04
61719CBRACKET, ROOF SIDE RAIL, RH
main61719-47020i200608-200903
61729BBRACKET, ROOF SIDE RAIL, LH
main61729-47010i200608-200903
62111CBOARD, COWL SIDE TRIM, RH
main62111-47030-A0i200308-200511
IVORY,TRIM0#
main62111-47030-B0i200308-200511
MD.GRAY,TRIM1#
main62111-47030-E0i200511-200903
GREGE,TRIM4#
62112BOARD, COWL SIDE TRIM, LH
main62112-47050-A0i200308-200511
IVORY,TRIM0#
main62112-47050-B0i200308-200511
MD.GRAY,TRIM1#
main62112-47050-E0i200511-200903
GREGE,TRIM4#
62155CBRACKET, CURTAIN SHIELD AIRBAG, RH
main62155-47010i200608-200903
62156BBRACKET, CURTAIN SHIELD AIRBAG, LH
main62156-47010i200608-200903
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
main62170-47010i200608-200903
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
main62180-47010i200608-200903
62211GARNISH, FRONT PILLAR, RH
main62210-47030-B1supersedes 62210-47020-B1i200608-200903
GRAY,TRIM1#
main62210-47030-E0supersedes 62210-47020-E0i200608-200903
GREGE,TRIM4#
main62210-47030-A1supersedes 62210-47020-A1i200308-200511
SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0#
62212GARNISH, FRONT PILLAR, LH
main62220-47030-B1supersedes 62220-47020-B1i200608-200903
GRAY,TRIM1#
main62220-47030-E0supersedes 62220-47020-E0i200608-200903
GREGE,TRIM4#
main62220-47030-A1supersedes 62220-47020-A1i200308-200511
SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0#
62218PIECE, FRONT PILLAR GARNISH CORNER, RH
main62218-47010-A0i200308-200511
IVORY,TRIM0#
main62218-47010-B0i200308-200511
GRAY,TRIM1#
main62218-47010-E0i200511-200903
GREGE,TRIM4#
62219PIECE, FRONT PILLAR GARNISH CORNER, LH
main62219-47010-A0i200308-200511
IVORY,TRIM0#
main62219-47010-B0i200308-200511
GRAY,TRIM1#
main62219-47010-E0i200511-200903
GREGE,TRIM4#
62221PSPACER, FRONT PILLAR, NO.1 RH
main62221-47040i200608-200903
62222ESPACER, FRONT PILLAR, NO.1 LH
main62222-47030i200608-200903
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
main62311-47020-A0i200308-200511
IVORY,TRIM0#
main62311-47020-B0i200308-200511
MD.GRAY,TRIM1#
main62311-47020-E0i200511-200903
GREGE,TRIM4#
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
main62312-47020-A0i200308-200511
IVORY,TRIM0#
main62312-47020-B0i200308-200511
MD.GRAY,TRIM1#
main62312-47020-E0i200511-200903
GREGE,TRIM4#
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
main62331-47020-A0i200308-200511
IVORY,TRIM0#
main62331-47020-B0i200308-200511
MD.GRAY,TRIM1#
main62331-47020-E0i200511-200903
GREGE,TRIM4#
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
main62332-47020-A0i200308-200511
IVORY,TRIM0#
main62332-47020-B0i200308-200511
MD.GRAY,TRIM1#
main62332-47020-E0i200511-200903
GREGE,TRIM4#
62411GARNISH, CENTER PILLAR, RH
main62410-47030-A0i200308-200511
IVORY,TRIM0#
main62410-47030-B0i200511-200802
GRAY,TRIM1#
main62410-47030-B2i200802-200903
GRAY,TRIM1#
main62410-47030-E0i200511-200802
GREGE,TRIM4#
main62410-47030-E1i200802-200903
GREGE,TRIM4#
62412GARNISH, CENTER PILLAR, LH
main62420-47030-A0i200308-200511
IVORY,TRIM0#
main62420-47030-B0i200308-200511
GRAY,TRIM1#
main62420-47030-B2i200802-200903
GRAY,TRIM1#
main62420-47030-E0i200511-200802
GREGE,TRIM4#
main62420-47030-E1i200802-200903
GREGE,TRIM4#
62413AGARNISH, CENTER PILLAR, LOWER RH
main62413-47020-A0i200308-200511
IVORY,TRIM0#
main62413-47020-B0i200308-200511
MD.GRAY,TRIM1#
main62413-47020-E0i200511-200903
GREGE,TRIM4#
62414AGARNISH, CENTER PILLAR, LOWER LH
main62414-47020-A0i200308-200511
IVORY,TRIM0#
main62414-47020-B0i200308-200511
MD.GRAY,TRIM1#
main62414-47020-E0i200511-200903
GREGE,TRIM4#
62470AGARNISH ASSY, ROOF SIDE, INNER RH
main62470-47050-B0supersedes 62470-47040-B0i200608-200903
GRAY,TRIM1#
main62470-47050-E0supersedes 62470-47040-E0i200608-200903
GREGE,TRIM4#
main62470-47030-A0supersedes 62470-47020-A0i200308-200511
SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0#
main62470-47030-B0supersedes 62470-47020-B0i200308-200511
SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,GRAY,TRIM1#
62471JCLIP (FOR ROOF SIDE GARNISH)
main90467-10161×13i200308-200511
62480AGARNISH ASSY, ROOF SIDE, INNER LH
main62480-47030-B0supersedes 62480-47020-B0i200608-200903
GRAY,TRIM1#
main62480-47030-E0supersedes 62480-47020-E0i200608-200903
GREGE,TRIM4#
main62480-47030-A0supersedes 62480-47020-A0i200308-200511
SRS AIR BAG-DRIVER & PASSENGER & SIDE & CUTAIN,IVORY,TRIM0#
67911BPLATE, FRONT DOOR SCUFF, OUTSIDE, RH
main67911-47020i200611-200903
main67911-63010-C0i200308-200511
BLACK,TRIM0#,1#
67912APLATE, FRONT DOOR SCUFF, OUTSIDE LH
main67911-47020i200611-200903
main67911-63010-C0i200308-200511
BLACK,TRIM0#,1#
67913PLATE, FRONT DOOR SCUFF, RH
main67913-47020-A0i200308-200511
IVORY,TRIM0#
main67913-47020-B0i200308-200511
MD.GRAY,TRIM1#
main67913-47020-E0i200511-200903
GREGE,TRIM4#
67914PLATE, FRONT DOOR SCUFF, LH
main67914-47020-A0i200308-200511
IVORY,TRIM0#
main67914-47020-B0i200511-200903
MD.GRAY,TRIM1#
main67914-47020-E0i200511-200903
GREGE,TRIM4#
67915PLATE, REAR DOOR SCUFF, OUTSIDE RH
main67915-47020i200611-200903
main67915-63010-C0i200511-200610
BLACK
67916PLATE, REAR DOOR SCUFF, OUTSIDE LH
main67915-47020i200611-200903
main67915-63010-C0i200511-200610
BLACK
67917APLATE, REAR DOOR SCUFF, RH
main67917-47020-A0i200308-200511
IVORY,TRIM0#
main67917-47020-B0i200308-200511
MD.GRAY,TRIM1#
main67917-47020-E0i200511-200903
GREGE,TRIM4#
67918APLATE, REAR DOOR SCUFF, LH
main67918-47020-A0i200308-200511
IVORY,TRIM0#
main67918-47020-B0i200308-200511
MD.GRAY,TRIM1#
main67918-47020-E0i200511-200903
GREGE,TRIM4#
67923ACLAMP, DOOR SCUFF PLATE, NO.1
main67923-20090×4i200511-200903
WHITE
main67923-47030×2i200308-200511
BLACK
67924ACLAMP, DOOR SCUFF PLATE, NO.2
main67924-46010×4i200308-200511
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
6221712050COVER, RAIL ROOF SIDE, INNER CENTER
main62217-12050
9011906869
main90119-06869
9046710161
main90467-10161
9046805084
main90468-05084
9095008004
main90950-08004
91511B0614
main91511-B0614

43 parts on this diagram · 2 diagrams in section
