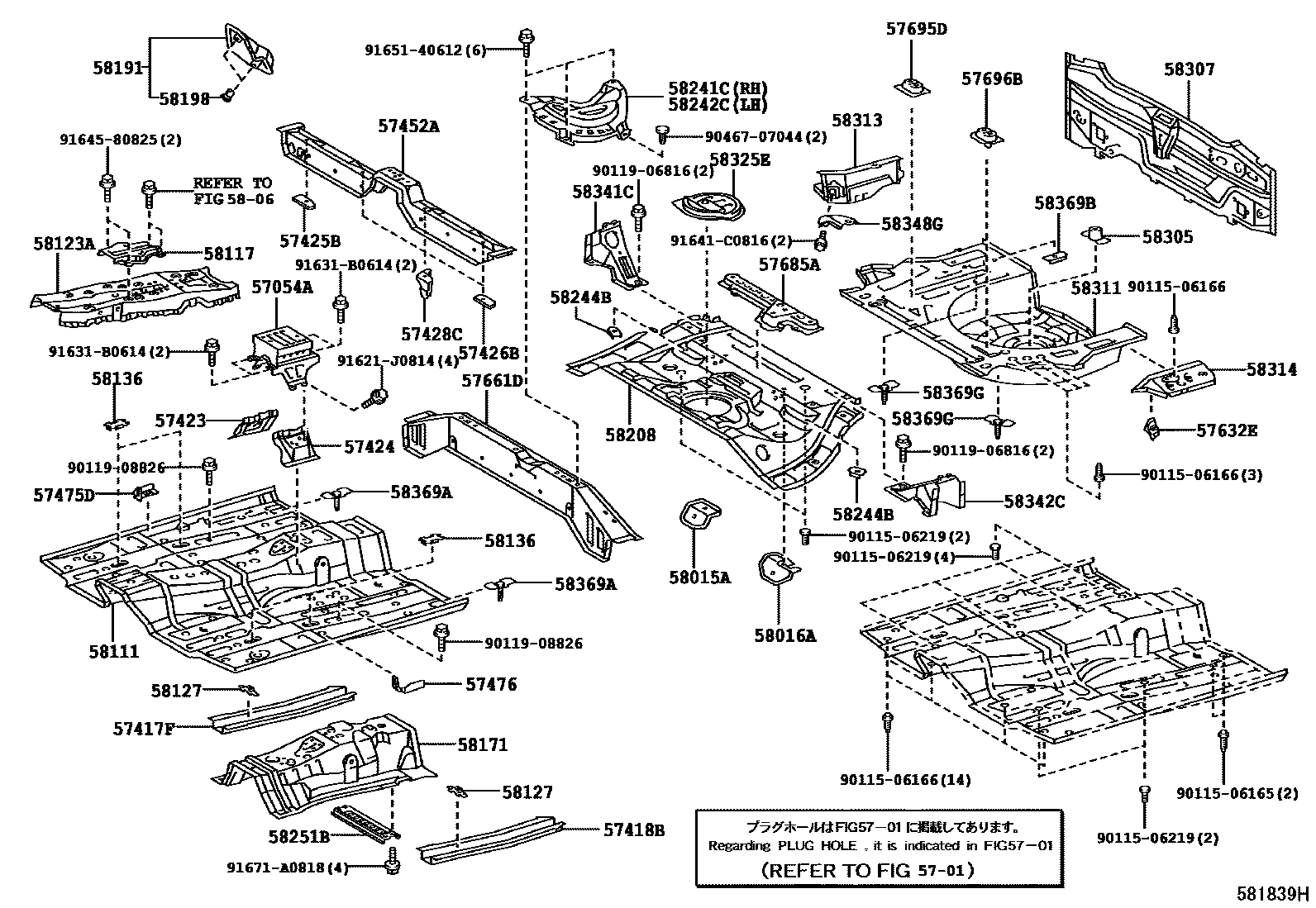

FLOOR PAN & LOWER BACK PANEL
5701
57054AREINFORCEMENT SUB-ASSY, FRONT FLOOR CROSSMEMBER, LH
57417FREINFORCEMENT, FRONT FLOOR UNDER, RH
57418BREINFORCEMENT, FRONT FLOOR UNDER, LH
57423BRACKET, FRONT FLOOR REINFORCEMENT, RH
57424BRACKET, FRONT FLOOR REINFORCEMENT, LH
57425BREINFORCEMENT, FRONT FLOOR, NO.2 RH
57426BREINFORCEMENT, FRONT FLOOR, NO.2 LH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57452AMEMBER, FRONT FLOOR CROSS, NO.2
57475DPLATE, FRONT FLOOR CROSSMEMBER, RH
57476PLATE, FRONT FLOOR CROSSMEMBER, LH
57632EEXTENSION, REAR FLOOR SIDE MEMBER, FR LH
57661DMEMBER, REAR FLOOR CROSS, FRONT
57685ABRACKET, REAR FLOOR MOUNTING, NO.1 RH
57695DBRACKET, REAR FLOOR MOUNTING, NO.2 RH
57696BBRACKET, REAR FLOOR MOUNTING, NO.2 LH
58015AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 RH
58016AREINFORCE SUB-ASSY, BELT ANCHOR, NO.3 LH
5806
58117REINFORCEMENT, FRONT FLOOR SIDE, NO.1
58123ASUPPORT, SHIFT & SELECT LEVER
58127PATCH, FRONT FLOOR PANEL
58136COVER, FRONT FLOOR HOLE
58171REINFORCEMENT, PARKING BRAKE BASE
58191FOOTREST, FRONT FLOOR
58198CLIP, FOOTREST
58208PAN, CENTER FLOOR
58241CPANEL, FLOOR SIDE, RH
58242CPANEL, FLOOR SIDE, LH
58244BBRACKET, REAR SEAT CUSHION MOUNTING
58251BBRACE, FLOOR PANEL, FRONT
58305BRACKET SUB-ASSY, SPARE WHEEL CLAMP
58307PANEL SUB-ASSY, BODY LOWER BACK
58311PAN, REAR FLOOR
58314PANEL, REAR FLOOR SIDE, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58341CBRACKET, REAR ABSORBER MOUNTING, NO.1 RH
58342CBRACKET, REAR ABSORBER MOUNTING, NO.1 LH
58348GPLATE, REAR FLOOR SIDE, RH
58369ABRACKET, FUEL TUBE, NO.3
58369BBRACKET, FUEL TUBE, NO.3
58369GBRACKET, FUEL TUBE, NO.3
9011506165
main90115-06165
9011506166
main90115-06166
9011506219
main90115-06219
9011906816
main90119-06816
9011908826
main90119-08826
9046707044
main90467-07044
91621J0814
main91621-J0814
91631B0614
main91631-B0614
91641C0816
main91641-C0816
9164580825
main91645-80825
9165140612
main91651-40612
91671A0818
main91671-A0818
57 parts on this diagram · 1 diagram in section
