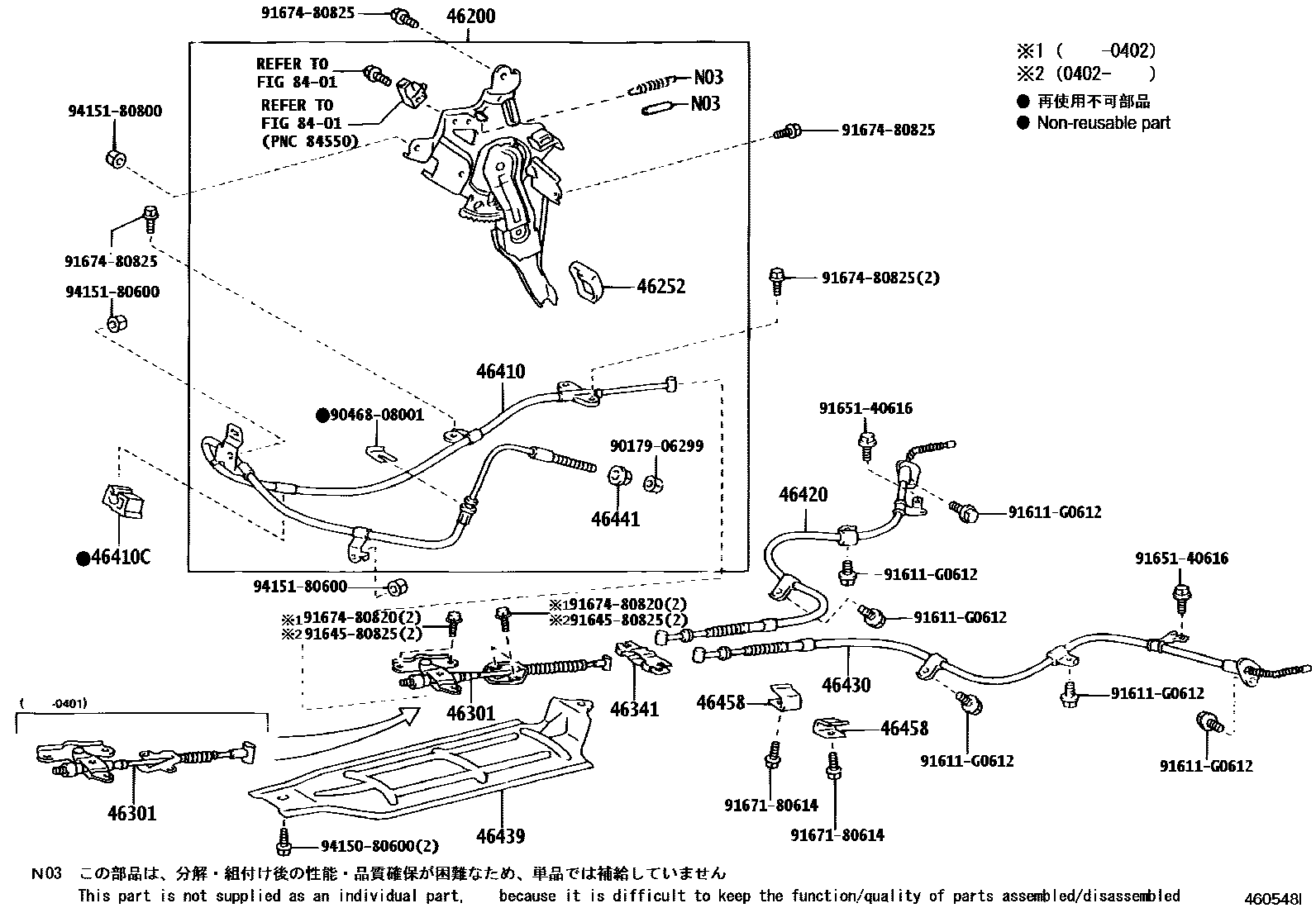

PARKING BRAKE & CABLE

46200PEDAL ASSY, PARKING BRAKE CONTROL

main46200-47050iNHW20200308-200511

46252PAD, PARKING PEDAL

main46252-68010iNHW20200308-200511

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46320-47020iNHW20200308-200402

main46320-47030iNHW20200402-200511

46341EQUALIZER, PARKING BRAKE

main46341-12020iNHW20200308-200511

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-47050iNHW20200308-200511

46410CCLAMP(FOR PARKING BRAKE FRONT CABLE)

main46411-47010iNHW20200308-200511

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-47050iNHW20200308-200511

main46420-47051iNHW20200804-200903

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-47050iNHW20200308-200511

main46430-47051iNHW20200804-200903

46439INSULATOR, PARKING BRAKE CABLE HEAT

main46408-63010iNHW20200308-200511

46441NUT, WIRE ADJUSTING, NO.1

main46441-12010iNHW20200308-200511

46458RETAINER, CABLE

main46458-28010×2iNHW20200308-200511

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9017906299

main90179-06299

9046808001

main90468-08001

91611G0612

main91611-G0612

9164580825

main91645-80825

9165140616

main91651-40616

9167180614

main91671-80614

9167480820

main91674-80820

9167480825

main91674-80825

9415080600

main94150-80600

9415180600

main94151-80600

9415180800

main94151-80800

23 parts on this diagram · 1 diagram in section
