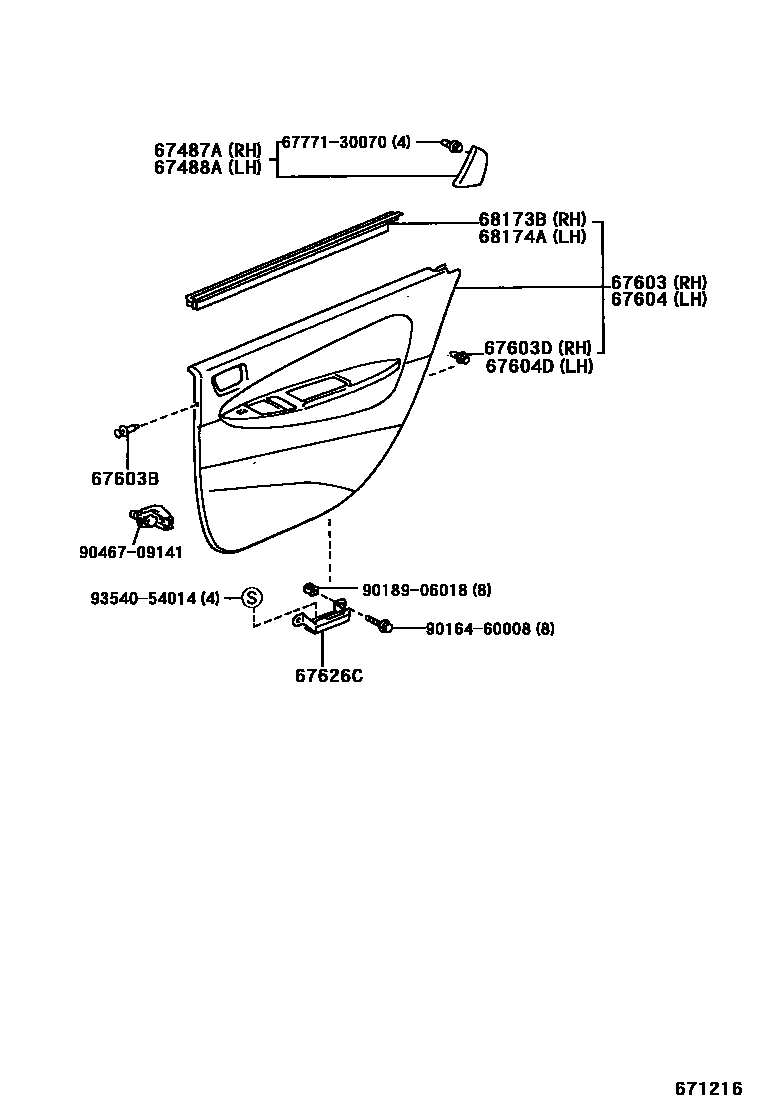

REAR DOOR PANEL & GLASS

0001 1 0002 1

67487AGARNISH, REAR DOOR REAR GUIDE BRACKET, RH

main67487-47020-B0iNHW11200005

LT.AMETHYST,TRIM9#

67488AGARNISH, REAR DOOR REAR GUIDE BRACKET, LH

main67488-47020-B0iNHW11200005

LT.AMETHYST,TRIM9#

67603BOARD SUB-ASSY, REAR DOOR TRIM, RH

main67630-47040-K0iNHW11200005

AMETHYST,TRIM9#

67603BCLIP(FOR REAR DOOR TRIM BOARD)

main90467-07066-P3×2iNHW11200005

LT. AMETHYST,TRIM9#

67603DRETAINER, REAR DOOR TRIM, RH

main67771-12030iNHW11200005

YELLOW GREEN

main67771-12050×6iNHW11200005

RED

67604BOARD SUB-ASSY, REAR DOOR TRIM, LH

main67640-47040-K0iNHW11200005

AMETHYST,TRIM9#

67604DRETAINER, REAR DOOR TRIM, LH

main67771-12030iNHW11200005

YELLOW GREEN

main67771-12050×6iNHW11200005

RED

67626CBRACKET, REAR DOOR TRIM, NO.2

main67625-44010×4iNHW11200005

68173BWEATHERSTRIP, REAR DOOR GLASS, INNER RH

main68173-47010iNHW11200005

68174AWEATHERSTRIP, REAR DOOR GLASS, INNER LH

main68174-47010iNHW11200005

6777130070WEATHERSTRIP, BACK DOOR TRIM, RH

main67771-30070

9016460008

main90164-60008

9018906018

main90189-06018

9046709141

main90467-09141

9354054014

main93540-54014

15 parts on this diagram · 2 diagrams in section
