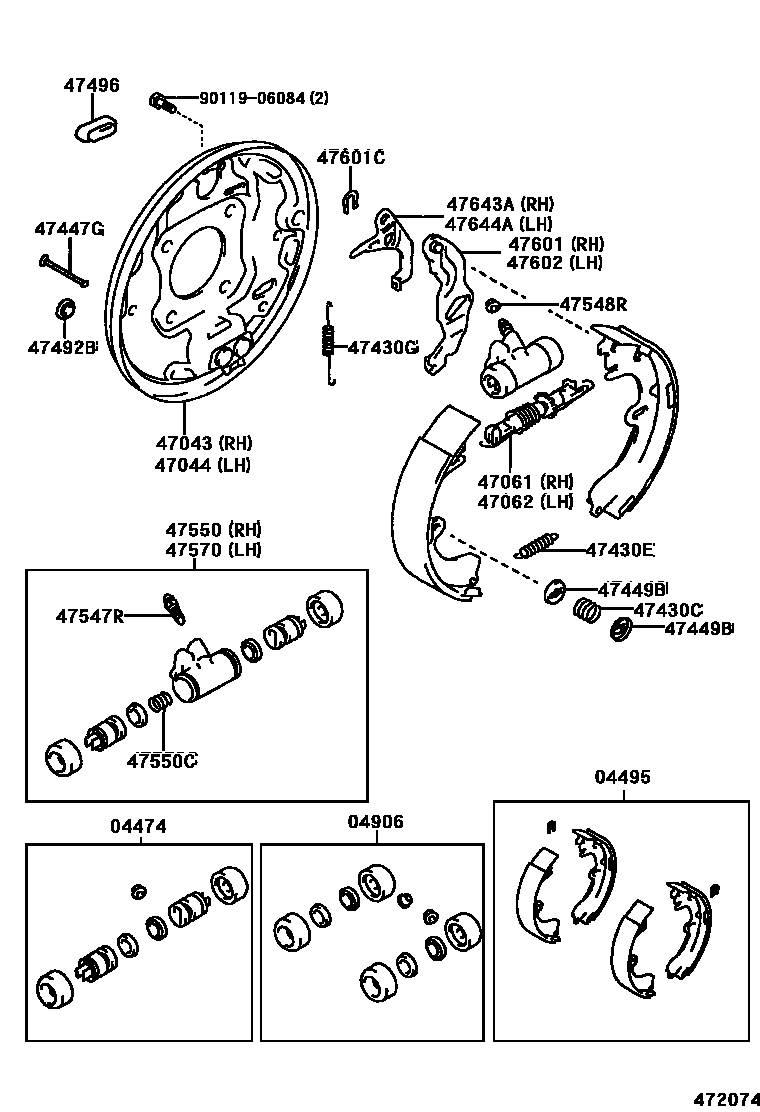

REAR DRUM BRAKE WHEEL CYLINDER & BACKING PLATE

04474CYLINDER KIT, REAR WHEEL

main04474-47010iNHW11200005

04495SHOE KIT, REAR BRAKE

main04495-47010iNHW11200005

04906CUP KIT, REAR WHEEL CYLINDER

main04906-47010iNHW11200005

47043PLATE SUB-ASSY, BRAKE BACKING, REAR RH

main47043-20140iNHW11200005

47044PLATE SUB-ASSY, BRAKE BACKING, REAR LH

main47044-20140iNHW11200005

47061STRUT SET, PARKING BRAKE SHOE, RH

main47061-47010iNHW11200005

47062STRUT SET, PARKING BRAKE SHOE, LH

main47062-47010iNHW11200005

47430CSPRING(FOR REAR BRAKE SHOE HOLD DOWN)

main90501-20147iNHW11200005

47430ESPRING, TENSION(FOR REAR BRAKE SHOE RETURN)

main90506-14073iNHW11200005

47430GSPRING, TENSION(FOR REAR BRAKE AUTOMATIC ADJUST LEVER)

main90506-14072iNHW11200005

47447GPIN, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47447-11010iNHW11200005

47449BCUP, SHOE HOLD DOWN SPRING(FOR REAR BRAKE)

main47449-30030iNHW11200005

47492BPLUG, SHOE INSPECTION(FOR REAR BRAKE)

main47492-32010iNHW11200005

47496PLUG, HOLE(FOR REAR BRAKE)

main47491-20011iNHW11200005

47547RPLUG, BLEEDER(FOR DRUM BRAKE, REAR)

main47547-20010iNHW11200005

47548RCAP, BLEEDER PLUG(FOR DRUM BRAKE, REAR)

main31478-30010iNHW11200005

47550CYLINDER ASSY, REAR WHEEL BRAKE(FOR RH, FRONT OR UPPER)

main47550-47010iNHW11200005

47550CSPRING, COMPRESSION(FOR REAR WHEEL BRAKE CYLINDER)

main90029-60014iNHW11200011

main90501-07006iNHW11200005-200011

47570CYLINDER ASSY, REAR WHEEL BRAKE(FOR LH, FRONT OR UPPER)

main47570-47010iNHW11200005

47601LEVER SUB-ASSY, PARKING BRAKE SHOE, RH(FOR REAR BRAKE)

main47601-47010iNHW11200005

47601CWASHER, C(FOR REAR BRAKE)

main90213-06013iNHW11200005

T=1.2

47602LEVER SUB-ASSY, PARKING BRAKE SHOE, LH (FOR REAR BRAKE)

main47602-47010iNHW11200005

47643ALEVER, REAR BRAKE AUTOMATIC ADJUST, RH

main47643-47010iNHW11200005

47644ALEVER, REAR BRAKE AUTOMATIC ADJUST, LH

main47644-47010iNHW11200005

9011906084

main90119-06084
