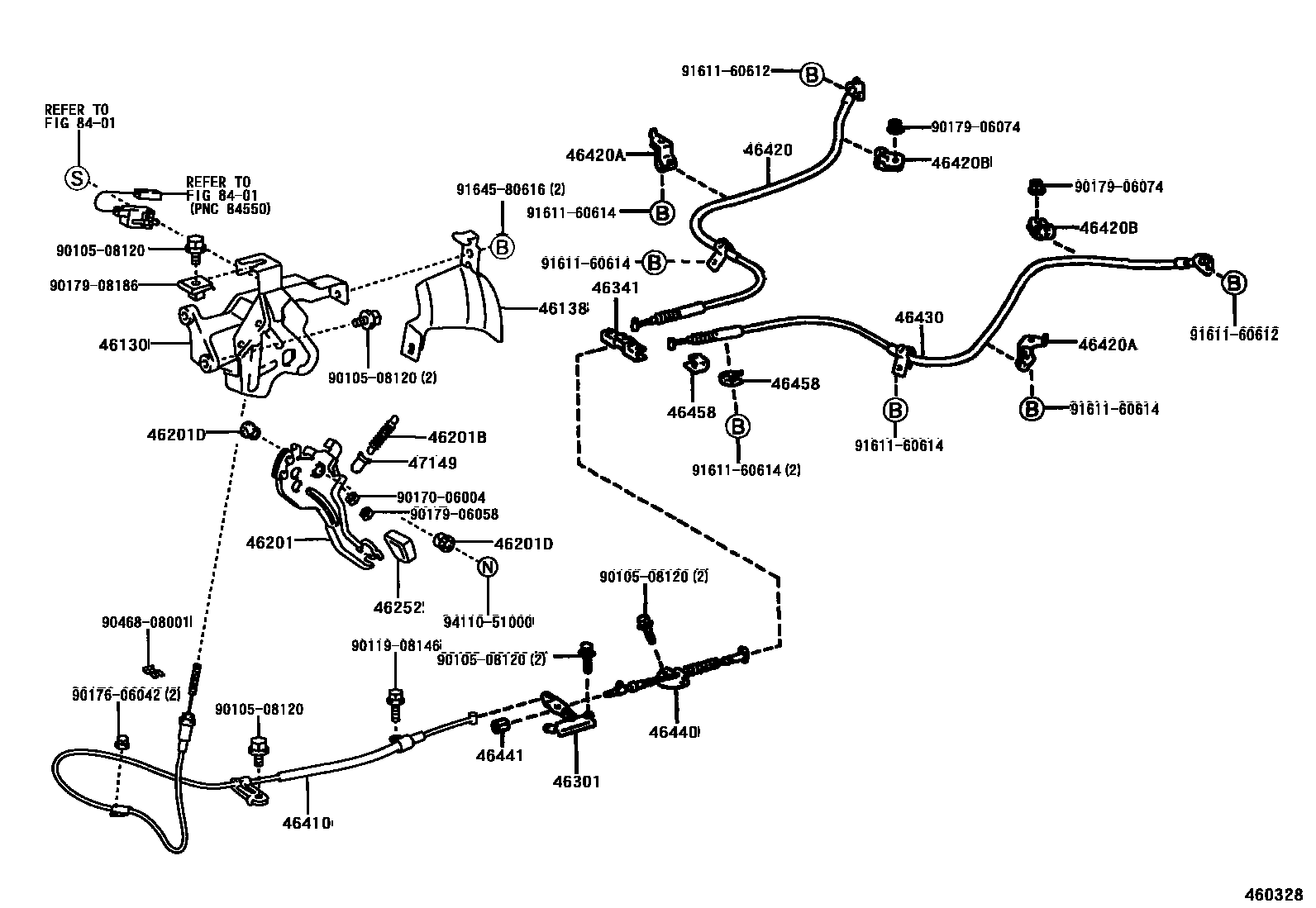

PARKING BRAKE & CABLE

46130BRACKET ASSY, PARKING BRAKE PEDAL

main46130-47021iNHW11200005

46138PROTECTOR, PARKING BRAKE PEDAL BRACKET

main46138-47010iNHW11200005

46201PEDAL SUB-ASSY, PARKING BRAKE

main46210-47020iNHW11200005

46201BSPRING, TENSION

main90506-19005iNHW11200005

46201DBUSH(FOR PARKING BRAKE PEDAL)

main90386-16022×2iNHW11200005

46252PAD, PARKING PEDAL

main46252-33010iNHW11200005

46301LEVER SUB-ASSY, PARKING BRAKE INTERMEDIATE

main46301-47010iNHW11200005

46341EQUALIZER, PARKING BRAKE

main46341-12020iNHW11200005

46410CABLE ASSY, PARKING BRAKE, NO.1

main46410-47020iNHW11200005

46420CABLE ASSY, PARKING BRAKE, NO.2

main46420-47030iNHW11200005

46420ACLAMP, NO.1(FOR PARKING BRAKE CABLE)

main90949-01B40×2iNHW11200005

46420BCLAMP, NO.2(FOR PARKING BRAKE CABLE)

main90949-01C47×2iNHW11200005

46430CABLE ASSY, PARKING BRAKE, NO.3

main46430-47030iNHW11200005

46440CABLE ASSY, PARKING BRAKE, NO.4

main46440-47010iNHW11200005

46441NUT, WIRE ADJUSTING, NO.1

main46441-47010×2iNHW11200005

46458RETAINER, CABLE

main46458-28010×2iNHW11200005

47149DAMPER, RETURN SPRING

main47149-22010iNHW11200005

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010508120

main90105-08120

9011908146

main90119-08146

9017006004

main90170-06004

9017606042

main90176-06042

9017906058

main90179-06058

9017906074

main90179-06074

9017908186

main90179-08186

9046808001

main90468-08001

9161160612

main91611-60612

9161160614

main91611-60614

9164580616

main91645-80616

9411051000

main94110-51000

30 parts on this diagram · 1 diagram in section
