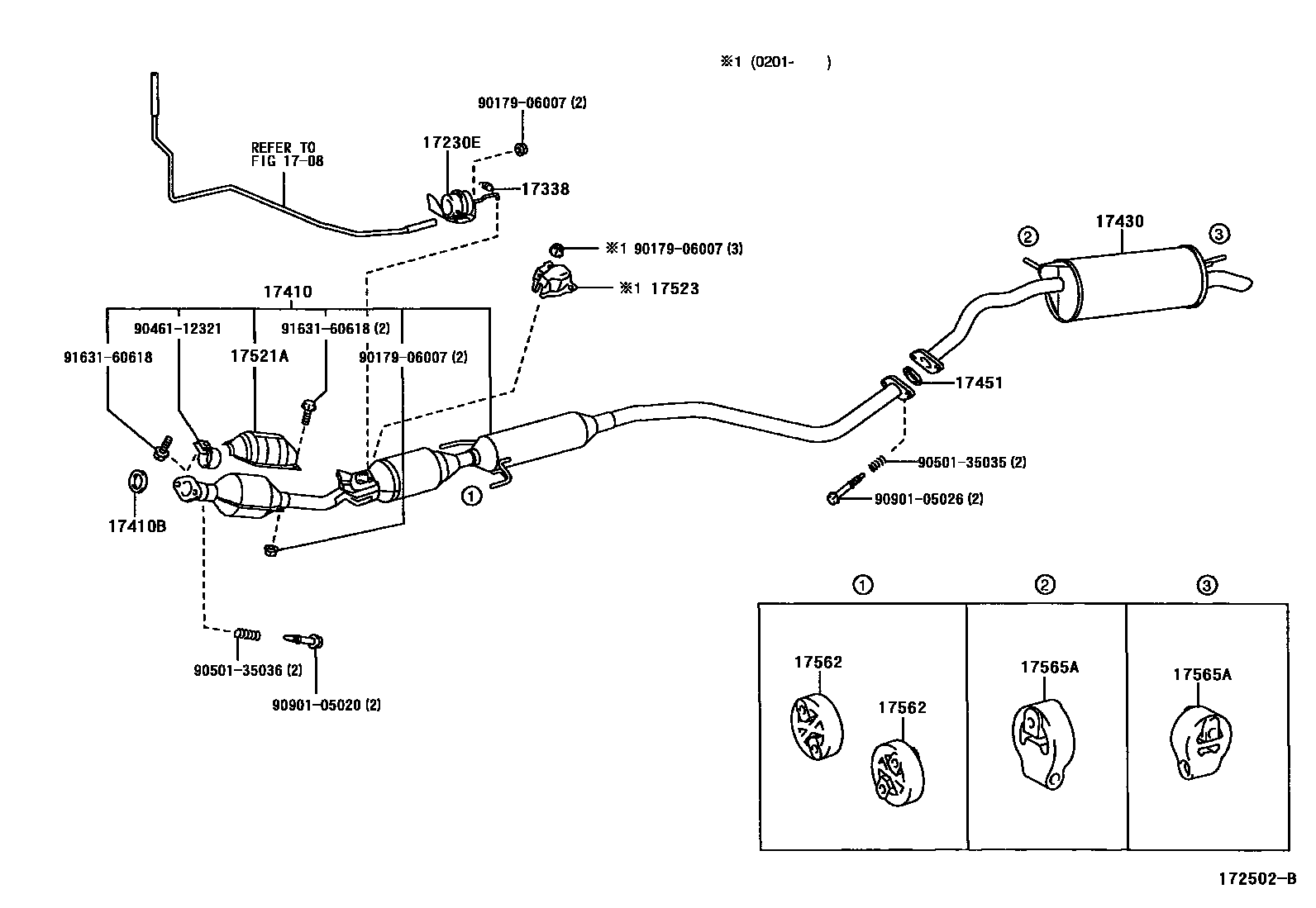

EXHAUST PIPE

1708VACUUM PIPING

→ Go to FIG 17-08

17230EACTUATOR ASSY, W/BRACKET

main17230-21010i1NZFXE..NHW11200005

17338SPRING, AIR CONTROL

main17338-21010i1NZFXE..NHW11200005

17410PIPE ASSY, EXHAUST, FRONT

main17410-21260i1NZFXE..NHW11200005-200201

main17410-21261i1NZFXE..NHW11200201

17410BGASKET, EXHAUST PIPE

main17451-21040i1NZFXE..NHW11200005

17430PIPE ASSY, EXHAUST, TAIL

main17430-21160i1NZFXE..NHW11200005

17451GASKET, EXHAUST PIPE

main17451-23010i1NZFXE..NHW11200005

17521APROTECTOR, EXHAUST PIPE, UPPER NO.1

main17521-21101i1NZFXE..NHW11200005

17523PROTECTOR, EXHAUST PIPE, UPPER NO.3

main17523-21010i1NZFXE..NHW11200201

17562SUPPORT, EXHAUST PIPE, NO.2

main17562-21021×2i1NZFXE..NHW11200005

17565ASUPPORT, EXHAUST PIPE, NO.4

main17565-21010×2i1NZFXE..NHW11200005

9017906007

main90179-06007

9046112321

main90461-12321

9050135035

main90501-35035

9050135036

main90501-35036

9090105020

main90901-05020

9090105026

main90901-05026

9163160618

main91631-60618

18 parts on this diagram · 1 diagram in section
