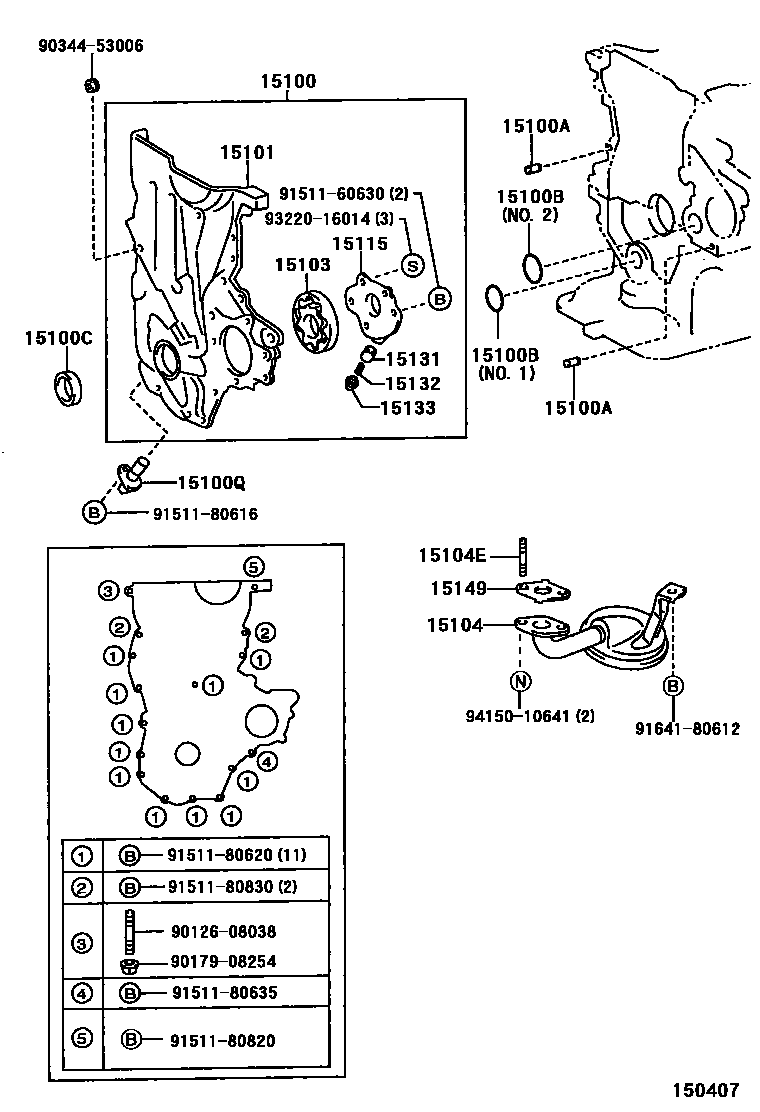

ENGINE OIL PUMP

15100PUMP ASSY, OIL

main15100-21050i1NZFXE..NHW11200005-200305

15100APIN, RING(FOR OIL PUMP SET)

main90253-08003×2i1NZFXE..NHW11200005-200305

15100BRING, O(FOR OIL PUMP)

main90301-31012i1NZFXE..NHW11200005-200305

NO.1

main90301-42006i1NZFXE..NHW11200005-200305

NO.2

15100CSEAL(FOR OIL PUMP)

main90311-25020i1NZFXE..NHW11200005-200210

main90311-25021i1NZFXE..NHW11200210-200305

15100QSENSOR, CRANK POSITION

main90919-05045i1NZFXE..NHW11200005-200305

15101BODY SUB-ASSY, OIL PUMP

main15111-21040i1NZFXE..NHW11200005-200305

15103GEAR SET, OIL PUMP

main15103-21020i1NZFXE..NHW11200005-200305

15104STRAINER SUB-ASSY, OIL

main15104-21021i1NZFXE..NHW11200005-200305

15104EBOLT, STUD(FOR OIL STRAINER)

main90126-06021×2i1NZFXE..NHW11200005-200305

15115COVER, OIL PUMP

main15115-21050i1NZFXE..NHW11200005-200305

15131VALVE, OIL PUMP RELIEF

main15131-21020i1NZFXE..NHW11200005-200305

15132SPRING, OIL PUMP RELIEF VALVE

main15132-21050i1NZFXE..NHW11200005-200305

15133PLUG, OIL PUMP RELIEF VALVE

main15133-21020i1NZFXE..NHW11200005-200305

15149GASKET, OIL STRAINER FLANGE

main16258-21010i1NZFXE..NHW11200005-200302

main16258-21030i1NZFXE..NHW11200302-200305

9012608038

main90126-08038

9017908254

main90179-08254

9034453006

main90344-53006

9151160630

main91511-60630

9151180616

main91511-80616

9151180620

main91511-80620

9151180635

main91511-80635

9151180820

main91511-80820

9151180830

main91511-80830

9164180612

main91641-80612

9322016014

main93220-16014

9415010641

main94150-10641

26 parts on this diagram · 1 diagram in section
