WIRING & CLAMP

0001 1ENGINE ROOM 0002 1ENGINE 0003 1INSTRUMENT PANEL 0004 1DOOR 0005 1FLOOR & REAR WINDOW 0006 1LUGGAGE 0007 1CLAMP & BRACKET 0008 1CONNECTOR

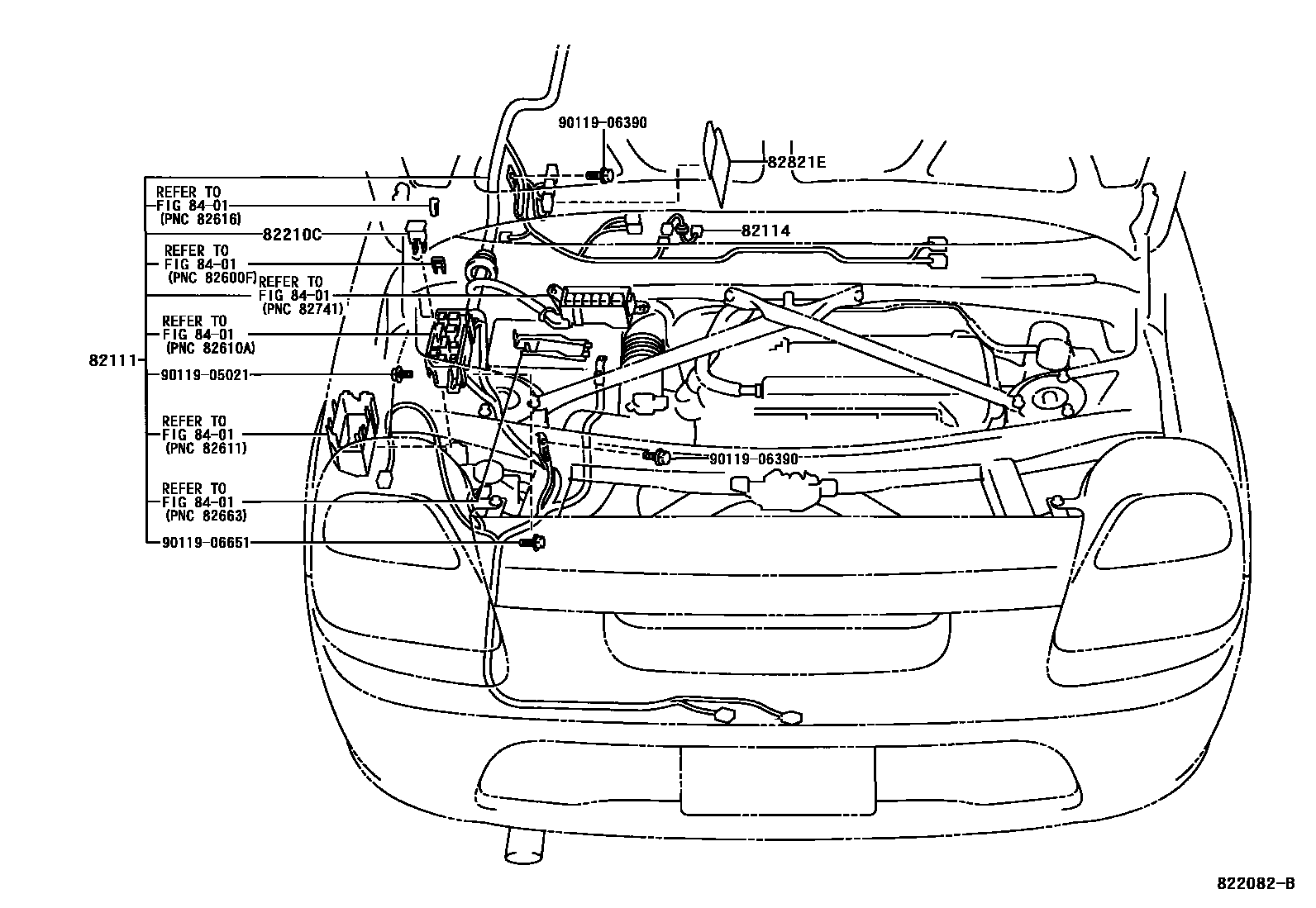

82111WIRE, ENGINE ROOM MAIN

main82111-17680iZZW30..5FS200008-200208

main82111-17681iZZW30..6FS200208-200402

main82111-17682iZZW30..6FS200402-200501

main82111-17720iZZW30..5F199912-200208

main82111-17721iZZW30..5F200208-200402

main82111-17722iZZW30..5F200402-200501

82114WIRE, ENGINE ROOM, NO.4

main82114-17010iZZW30200208-200501

82210CFUSIBLE LINK

main90982-08246iZZW30199912-200208

100A,TERM.:MALE,BLUE

main90982-08281×2iZZW30200208-200501

40A,TERM.:FEMALE,GRN

main90982-08282iZZW30199912-200208

50A,TERM.:FEMALE,RED

82821ECOVER, CONNECTOR

main82821-17020iZZW30199912-200208

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9011905021

main90119-05021

9011906390

main90119-06390

9011906651

main90119-06651

8 parts on this diagram · 8 diagrams in section
