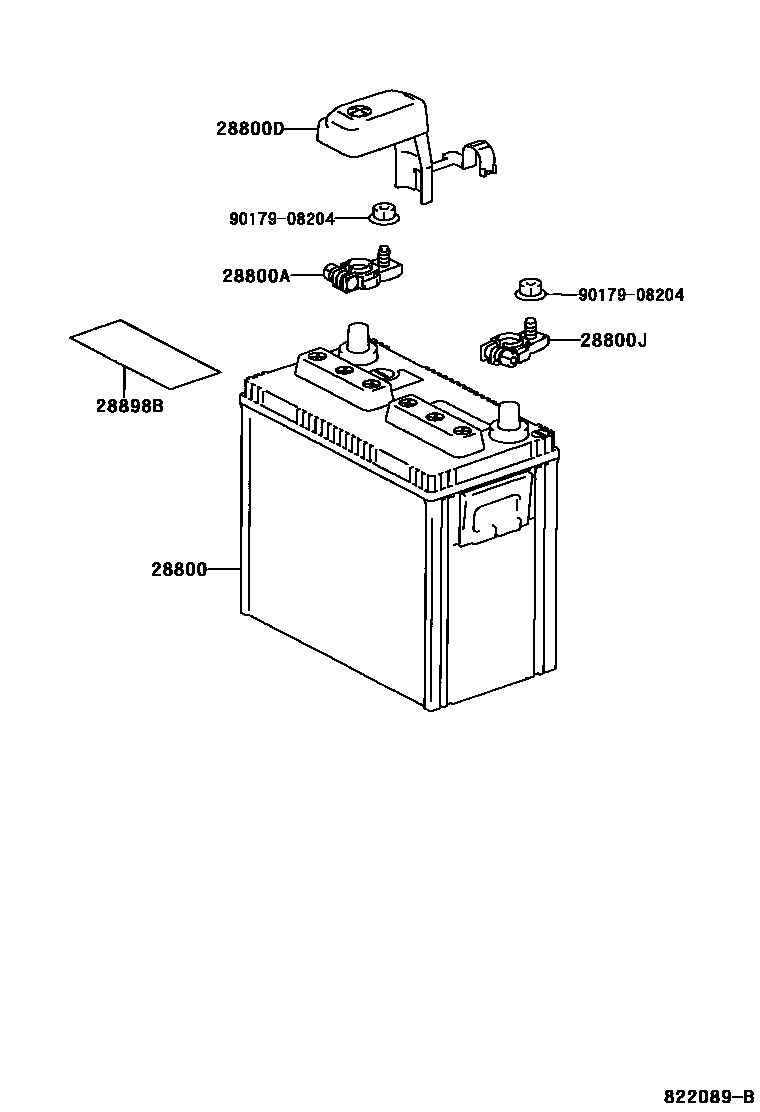

BATTERY & BATTERY CABLE

28800BATTERY

main28800-22050i1ZZFE..ZZW30200208-200501

55B24L(S)

28800ATERMINAL, BATTERY POSITIVE

main90982-05035i1ZZFE..ZZW30199912-200208

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-12290i1ZZFE..ZZW30200208-200501

28800JTERMINAL, BATTERY NEGATIVE

main90982-06024i1ZZFE..ZZW30199912-200208

28898BPLATE, BATTERY

main28898-11020×2i1ZZFE..ZZW30200004-200208

main28898-22010×2i1ZZFE..ZZW30199912-200004

9017908204

main90179-08204

6 parts on this diagram · 1 diagram in section
