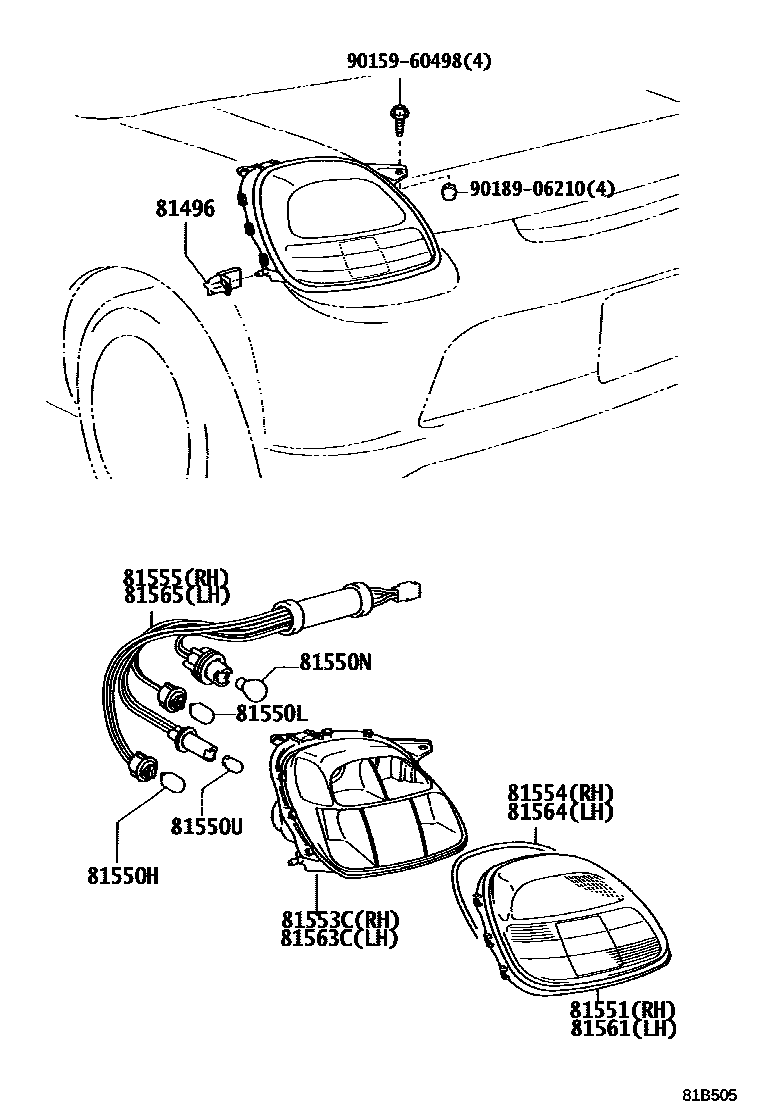

REAR COMBINATION LAMP

0001 1 0002 1

81496GUIDE, REAR COMBINATION LAMP

main81496-17010iZZW30199912-200501

81550HBULB, TAIL & STOP LAMP

main90981-13044iZZW30199912-200501

12V 21/5W

81550LBULB, REAR TURN SIGNAL LAMP

main90981-15009iZZW30199912-200208

12V 21W,AMBER

main90981-15011iZZW30200208-200501

12V 21W,AMBER

81550NBULB, BACK UP LAMP

main90981-13043iZZW30199912-200501

12V 21W

81550UBULB, STOP LAMP

main90981-13043iZZW30199912-200501

12V 21W

81551LENS, REAR COMBINATION LAMP, RH

main81551-17150iZZW30199912-200208

main81551-17190iZZW30200208-200501

81553CBODY, REAR COMBINATION LAMP, RH

main81553-17150iZZW30199912-200208

main81553-17190iZZW30200208-200501

81554GASKET, REAR COMBINATION LAMP BODY, RH

main81554-17140iZZW30199912-200501

BLACK

81555SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, RH

main81555-17150iZZW30199912-200208

main81555-17190iZZW30200208-200501

81561LENS, REAR COMBINATION LAMP, LH

main81561-17190iZZW30199912-200208

main81561-17230iZZW30200208-200501

81563CBODY, REAR COMBINATION LAMP, LH

main81563-17190iZZW30199912-200208

main81563-17230iZZW30200208-200501

81564GASKET, REAR COMBINATION LAMP BODY, LH

main81554-17140iZZW30199912-200501

BLACK

81565SOCKET & WIRE SUB-ASSY, REAR COMBINATION LAMP, LH

main81555-17150iZZW30199912-200208

main81555-17190iZZW30200208-200501

9015960498

main90159-60498

9018906210

main90189-06210

15 parts on this diagram · 2 diagrams in section
