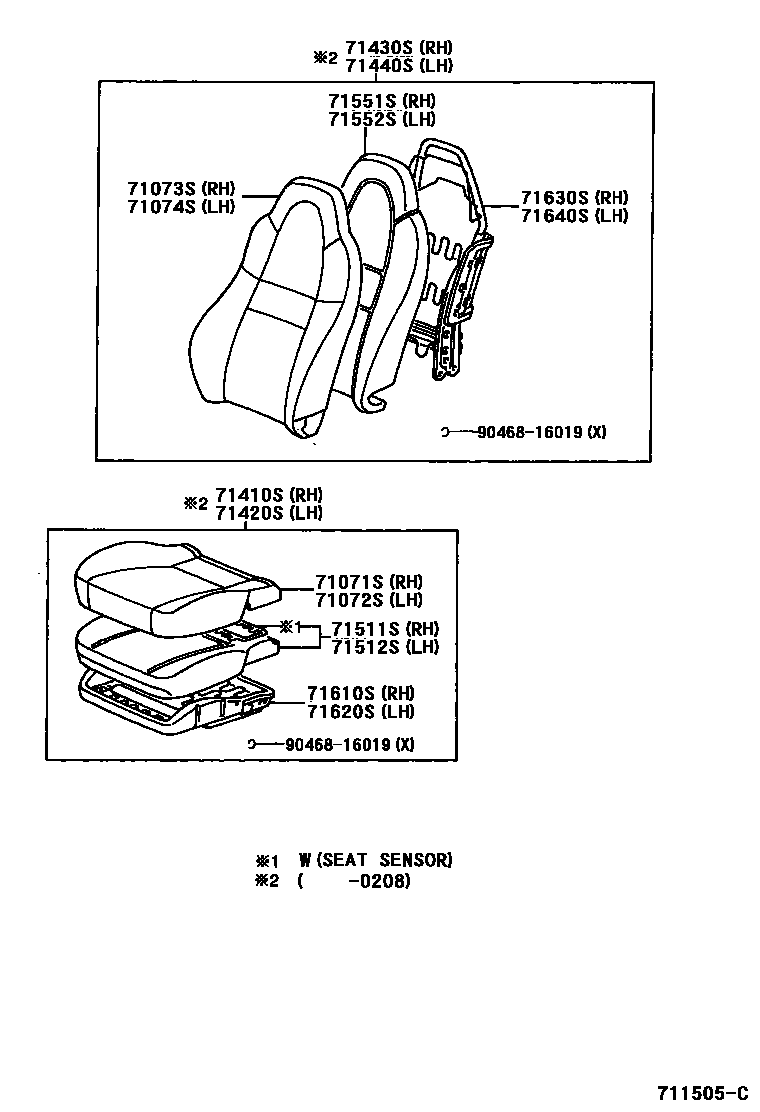

FRONT SEAT & SEAT TRACK
71071SCOVER, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
GRAY,TRIM2#
MD.GRAY,TRIM1#
BLACK,TRIM2#
RED,TRIM3#
YELLOW,TRIM5#
LEATHER SEAT,TAN,TRIM4#
LEATHER SEAT,BLACK GRAY,TRIM1#
LEATHER SEAT,BLACK,TRIM2#
LEATHER SEAT,BLACK RED,TRIM3#
LEATHER SEAT,TAN,TRIM4#
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
GRAY,TRIM2#
MD.GRAY,TRIM1#
BLACK,TRIM2#
RED,TRIM3#
YELLOW,TRIM5#
LEATHER SEAT,TAN,TRIM4#
LEATHER SEAT,BLACK GRAY,TRIM1#
LEATHER SEAT,BLACK,TRIM2#
LEATHER SEAT,BLACK RED,TRIM3#
LEATHER SEAT,TAN,TRIM4#
71073SCOVER, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
GRAY,TRIM2#
RED,TRIM3#
YELLOW,TRIM5#
LEATHER SEAT,TAN,TRIM4#
LEATHER SEAT,TAN,TRIM4#
MD.GRAY,TRIM1#
BLACK,TRIM2#
RED,TRIM3#
LEATHER SEAT,BLACK GRAY,TRIM1#
LEATHER SEAT,BLACK,TRIM2#
LEATHER SEAT,BLACK RED,TRIM3#
LEATHER SEAT,TAN,TRIM4#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
GRAY,TRIM2#
RED,TRIM3#
YELLOW,TRIM5#
LEATHER SEAT,TAN,TRIM4#
LEATHER SEAT,TAN,TRIM4#
MD.GRAY,TRIM1#
BLACK,TRIM2#
RED,TRIM3#
LEATHER SEAT,BLACK GRAY,TRIM1#
LEATHER SEAT,BLACK,TRIM2#
LEATHER SEAT,BLACK RED,TRIM3#
LEATHER SEAT,TAN,TRIM4#
71410SCUSHION ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
GRAY,TRIM2#
RED,TRIM3#
YELLOW,TRIM5#
LEATHER SEAT,TAN,TRIM4#
71420SCUSHION ASSY, FRONT SEAT, LH (FOR SEPARATE TYPE)
GRAY,TRIM2#
RED,TRIM3#
YELLOW,TRIM5#
LEATHER SEAT,TAN,TRIM4#
71430SBACK ASSY, FRONT SEAT, RH(FOR SEPARATE TYPE)
GRAY,TRIM2#
RED,TRIM3#
YELLOW,TRIM5#
LEATHER,TAN,TRIM4#
LEATHER SEAT,TAN,TRIM4#
71440SBACK ASSY, FRONT SEAT, LH(FOR SEPARATE TYPE)
GRAY,TRIM2#
RED,TRIM3#
YELLOW,TRIM5#
LEATHER,TAN,TRIM4#
LEATHER SEAT,TAN,TRIM4#
71511SPAD, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71551SPAD, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
LEATHER SEAT
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
LEATHER SEAT
71610SSPRING ASSY, FRONT SEAT CUSHION, RH(FOR SEPARATE TYPE)
71620SSPRING ASSY, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
71630SSPRING ASSY, FRONT SEATBACK, RH(FOR SEPARATE TYPE)
71640SSPRING ASSY, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
9046816019
main90468-16019
17 parts on this diagram · 2 diagrams in section
