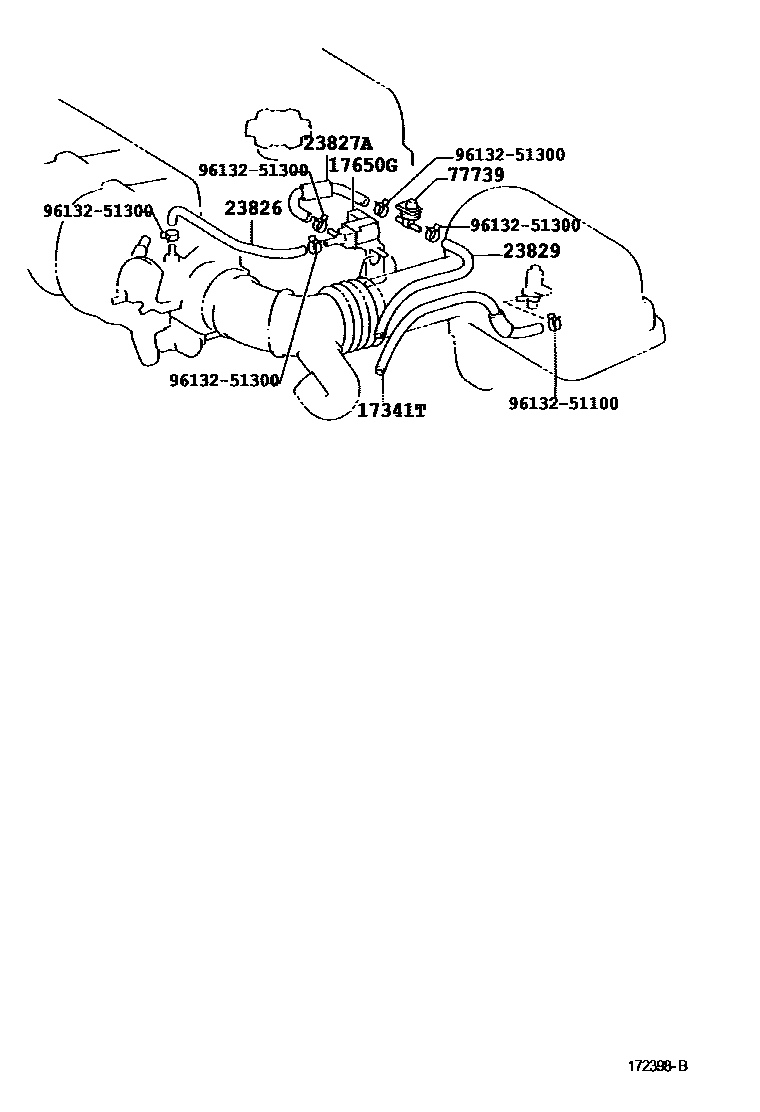

Toyota MR2 — VACUUM PIPING
17341THOSE, AIR, NO.1
17650GVALVE, DUTY VACUUM SWITCHING
23826HOSE, FUEL VAPOR FEED, NO.1
23827AHOSE, FUEL VAPOR FEED, NO.2
23829HOSE, FUEL VAPOR FEED, NO.3
77739VALVE, EVAP SERVICE PORT
9613251100
9613251300
8 parts on this diagram · 2 diagrams in section
VACUUM PIPING for Toyota MR2
This section contains 9 genuine Toyota parts for the VACUUM PIPING system of the Toyota MR2. Key components include: HOSE, AIR, NO.1, VALVE, DUTY VACUUM SWITCHING, HOSE ASSY, FUEL VAPOR FEED, HOSE, FUEL VAPOR FEED, NO.1, HOSE, FUEL VAPOR FEED, NO.2.
