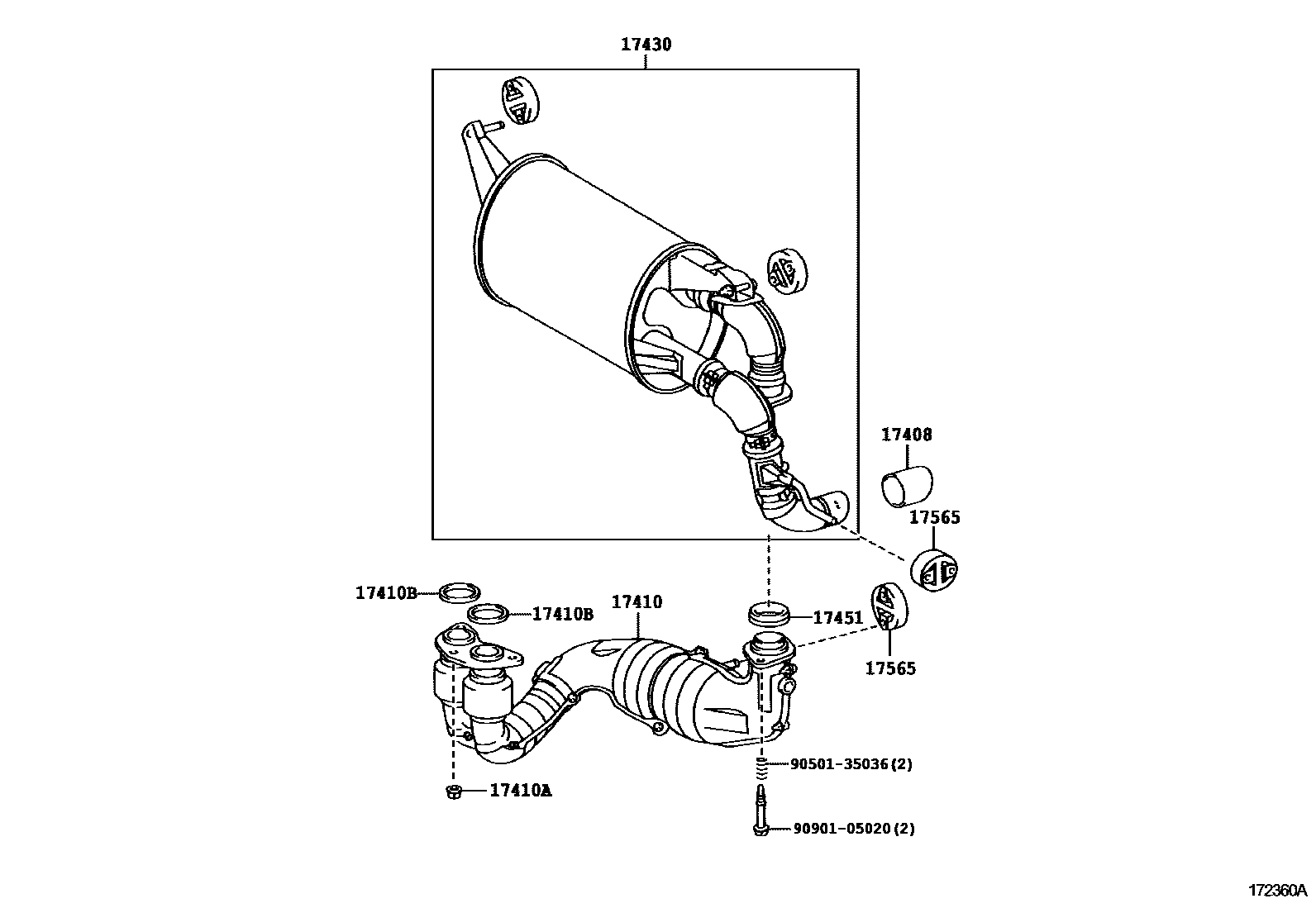

EXHAUST PIPE

17408BAFFLE SUB ASSY, EXHAUST TAILPIPE

main17408-16030i1ZZFE..ZZW30199912-200208

main17408-74080i1ZZFE..ZZW30200208-200501

17410PIPE ASSY, EXHAUST, FRONT

main17410-22130i1ZZFE..ZZW30199912-200306

*115=TOYOTA/00-/Y

main17410-22131i1ZZFE..ZZW30200306-200310

main17410-22132i1ZZFE..ZZW30200310-200501

*114=TOYOTA/X39/Y

17410ANUT, EXHAUST PIPE SET STUD BOLT

main90179-10070i1ZZFE..ZZW30199912-200501

17410BGASKET, EXHAUST PIPE

main90917-06065i1ZZFE..ZZW30199912-200501

17430PIPE ASSY, EXHAUST, TAIL

main17430-22090i1ZZFE..ZZW30199912-200208

main17430-22370i1ZZFE..ZZW30200208-200501

17451GASKET, EXHAUST PIPE

main17451-22060i1ZZFE..ZZW30199912-200501

17565SUPPORT, EXHAUST PIPE, NO.5

main17565-74280i1ZZFE..ZZW30199912-200501

9050135036

main90501-35036

9090105020

main90901-05020

9 parts on this diagram · 1 diagram in section
