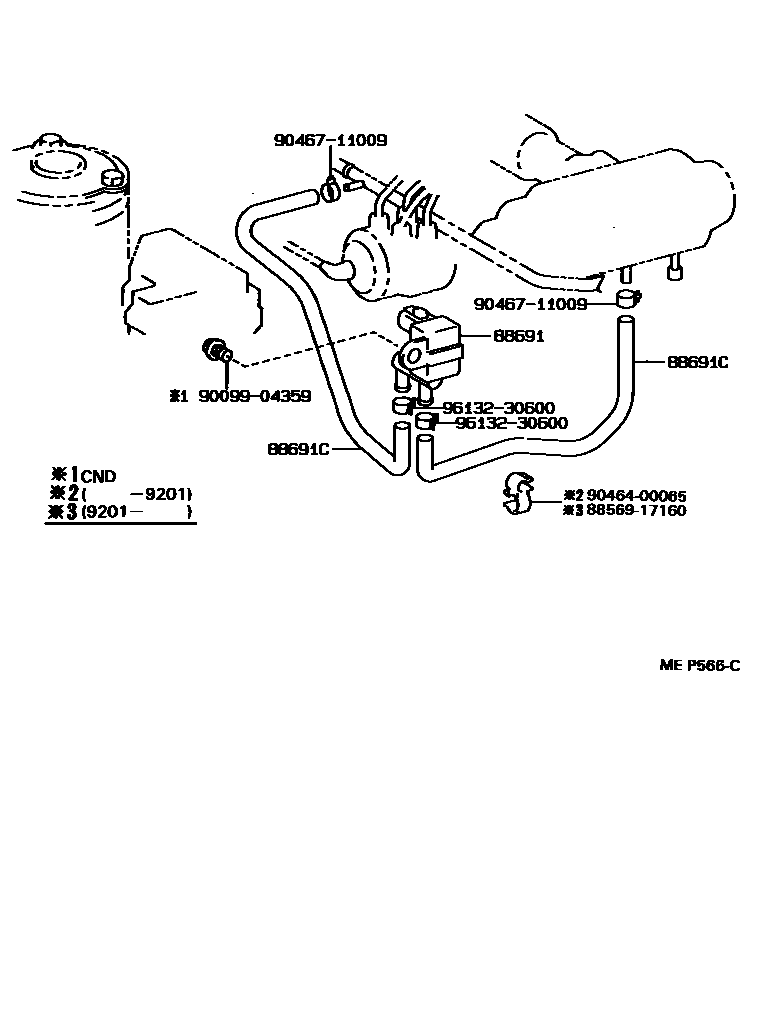

HEATING & AIR CONDITIONING - VACUUM PIPING

0001 1 0002 1

88691VALVE, MAGNET (FOR IDLE UP DEVICE)

main88691-17020iSW20199001-199506

main88691-17030iSW21199001-199201

main90910-13005iSW21199201-199506

88691CHOSE, VACUUM (FOR IDLE UP DEVICE), NO.1

main88689-17110iSW20199001-199506

L=288,80(L TYPE)

main88689-17120iSW20199001-199506

L=270

main88689-17150iSW21199001-199311

L=547,50,70(U TYPE),NO.1

main88689-17160iSW21199311-199506

L=111,68,60(U TYPE)

main88689-17170iSW20..USA199201-199311

L=360

8856917160CLAMP (FOR COOLER RELAY)

main88569-17160

9009904359

main90099-04359

9046400065

main90464-00065

9046711009

main90467-11009

9613230600

main96132-30600

7 parts on this diagram · 2 diagrams in section
