HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1CONTROL 0002 1AIR DUCT

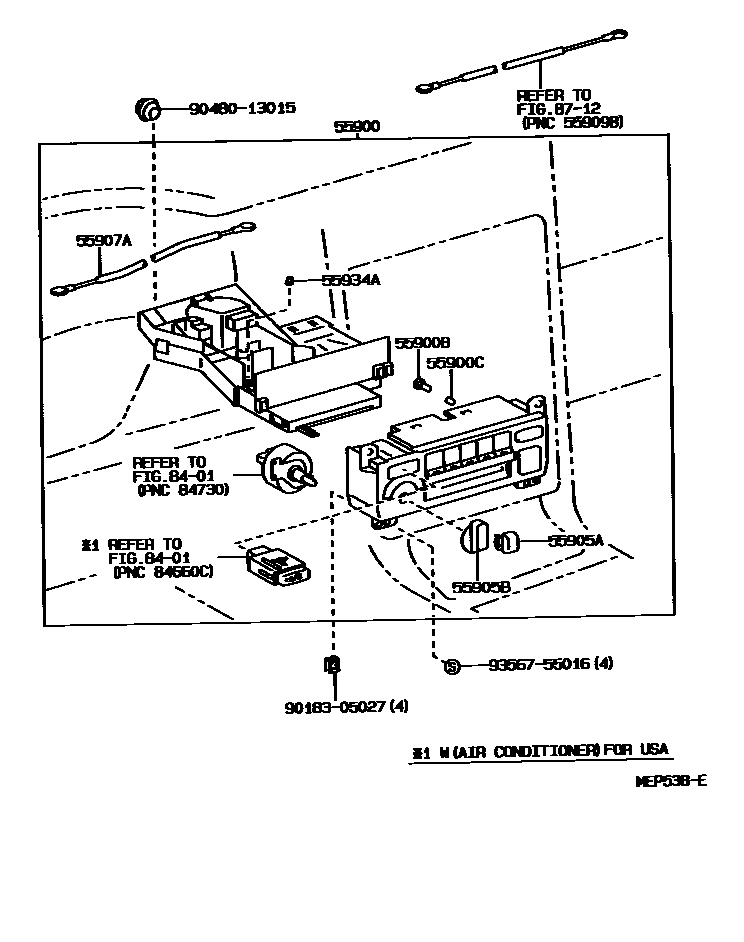

55900CONTROL ASSY, AIR CONDITIONER

main55900-17100iSW2#199001-199008

main55900-17110iSW2#..USA199001-199008

W(AIR CONDITIONER)

main55900-17120iSW2#199008-199311

main55900-17130iSW2#..USA199008-199311

W(AIR CONDITIONER)

55900BBULB, AIR CONDITIONER CONTROL

main84999-10090×20iSW2#; SW2#..USA199001-199311

12V 1.8W

main84999-10490×10iSW2#199311-199506

14V 0.84W

55900CCAP, AIR CONDITIONER CONTROL BULB

main84998-10120×2iSW2#; SW2#..USA199001-199311

12V 1.8W

main84998-10310×10iSW2#..USA199001-199311

14V 0.84W

55905AKNOB, HEATER CONTROL

main55905-17040iSW2#199001-199506

55905BKNOB, HEATER CONTROL, NO.2

main55905-17050iSW2#199311-199506

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-17040iSW2#199001-199506

55934ARETAINER, HEATER CONTROL CABLE

main55934-17010×2iSW2#199001-199506

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8712HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

→ Go to FIG 87-12

9018305027

main90183-05027

9048013015

main90480-13015

9356755016

main93567-55016

12 parts on this diagram · 2 diagrams in section
