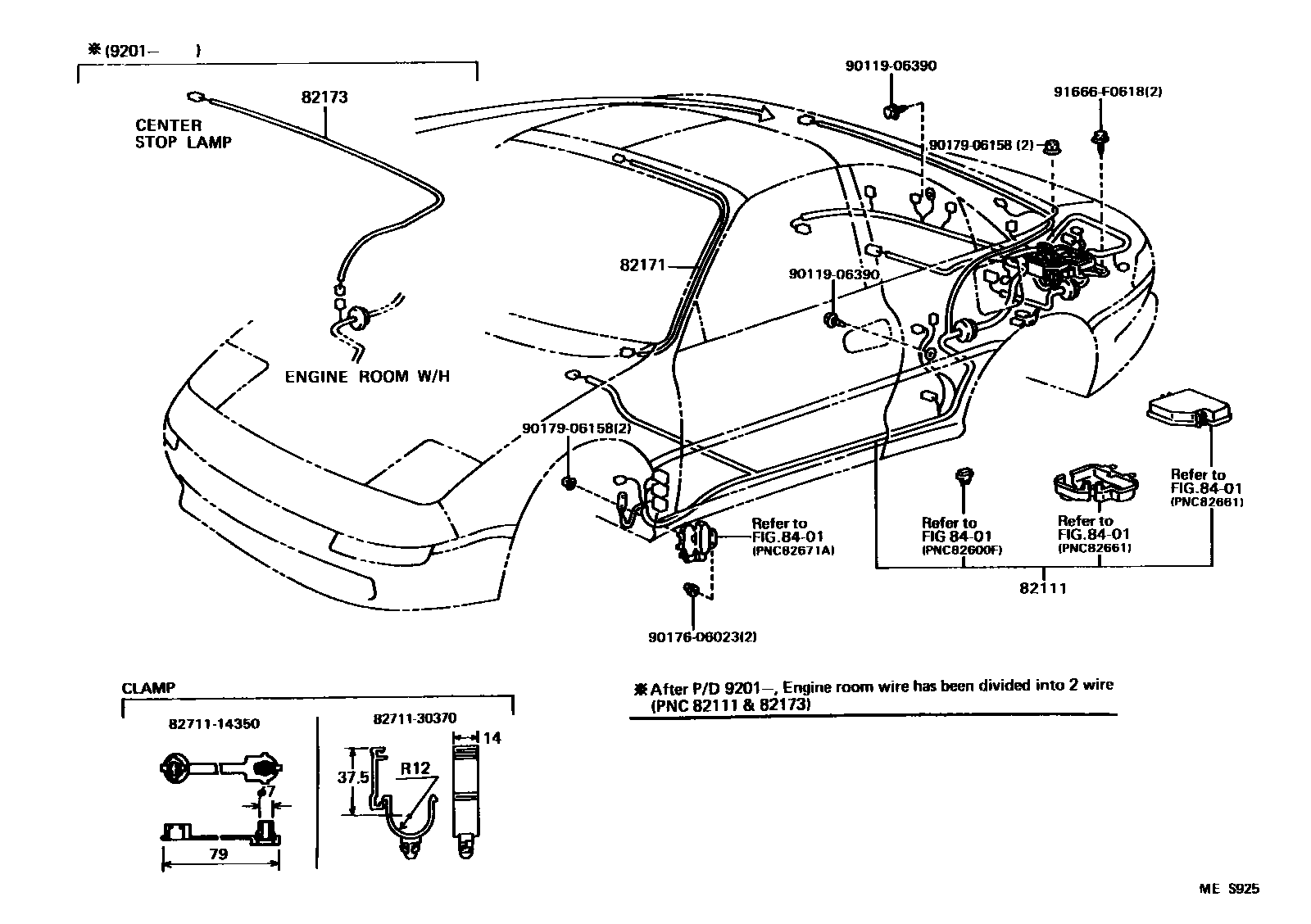

WIRING & CLAMP

0001 1 0002 1 0003 1 0004 1 0005 1 0006 1 0007 1 0008 1 0009 1 0010 1 0011 1 0012 1

82111WIRE, ENGINE ROOM MAIN

main82111-17520199001-199201

main82111-17521199201-199208

main82111-17522199208-199311

main82111-17523199311-199405

main82111-17524199405-199506

main82111-17530199001-199201

main82111-17540199001-199201

main82111-17541199201-199311

main82111-17542199311-199405

main82111-17543199405-199506

main82111-17550199001-199201

main82111-17560199001-199201

main82111-17561199201-199311

main82111-17562199311-199405

main82111-17563199405-199506

main82111-17570199001-199201

main82111-17580199001-199201

main82111-17581199201-199311

main82111-17582199311-199405

main82111-17583199405-199506

82171WIRE, ROOF, NO.1

main82171-17050199001-199201

main82171-17051199201-199506

main82171-17060199001-199201

main82171-17061199201-199506

82173WIRE, ROOF, NO.3

main82173-17010199201-199311

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8271114350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-14350

8271130370WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-30370

9011906390

main90119-06390

9017606023

main90176-06023

9017906158

main90179-06158

91666F0618

main91666-F0618

10 parts on this diagram · 12 diagrams in section
