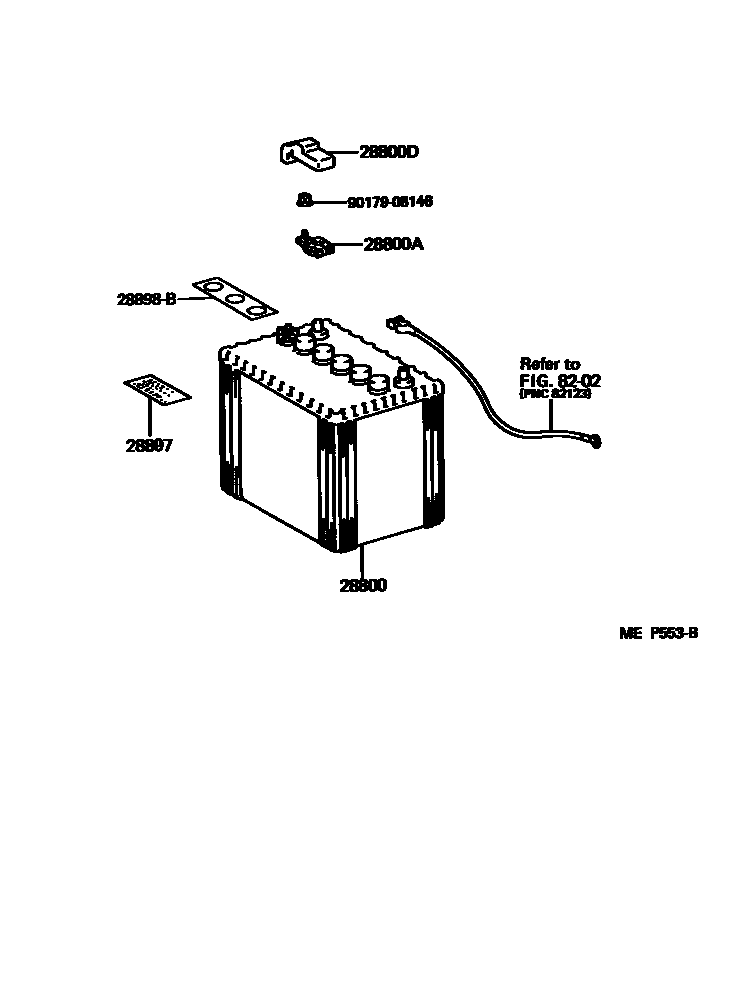

BATTERY & BATTERY CABLE

28800BATTERY

main28800-42030i3SGTE,5SFE..SW2#199311-199411

55D23L

main28800-43220i3SGTE,5SFE..SW2#199001-199201

55D23L

main28800-74150i5SFE..SW21..CND; 5SFE..SW21..USA199201-199210

75D26L; 75D26L,COLD SPEC

main28800-74151i5SFE..SW21199311-199411

75D26L

main28800-74170i3SGTE..SW20;5SFE..SW21..USA199210-199311

55D23L

28800ATERMINAL, BATTERY POSITIVE

main90982-05042i3SGTE,5SFE..SW2#199001-199506

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-16020i3SGTE,5SFE..SW2#199001-199506

28897PLATE, BATTERY CAUTION

main28897-38010i3SGTE,5SFE..SW2#..CND199001-199311

main28898-26010i3SGTE,5SFE..SW2#..USA199001-199506

28898BPLATE, BATTERY

main28898-11020×2i3SGTE,5SFE..SW2#199410

main28898-50130×2i5SFE..SW21199410

75D26L

8202WIRING & CLAMP

→ Go to FIG 82-02

9017908146

main90179-08146

7 parts on this diagram · 1 diagram in section
