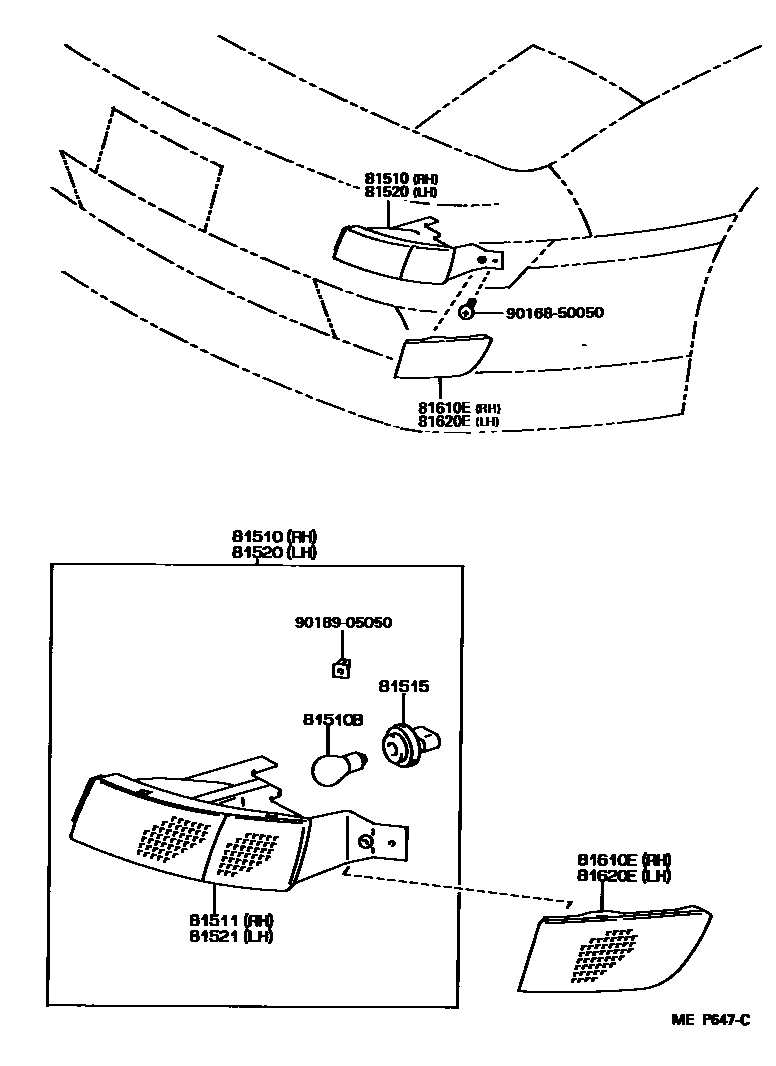

FRONT TURN SIGNAL LAMP

81510LAMP ASSY, FRONT TURN SIGNAL, RH

main81510-80074iSW2#199001-199506

81510BBULB (FOR FRONT TURN SIGNAL LAMP)

main99132-21270×2iSW2#199001-199506

12V 27/8W

81511LENS, FRONT TURN SIGNAL LAMP, RH

main81511-17060iSW2#199001-199506

81515WIRE SUB-ASSY, FRONT TURN SIGNAL LAMP BODY

main81615-24020×2iSW2#199001-199506

81520LAMP ASSY, FRONT TURN SIGNAL, LH

main81520-80074iSW2#199001-199506

81521LENS, FRONT TURN SIGNAL LAMP, LH

main81521-17060iSW2#199001-199506

81610ECOVER ASSY, RH

main81610-17010iSW2#199001-199506

81620ECOVER ASSY, LH

main81620-17010iSW2#199001-199506

9016850050

main90168-50050

9018905050

main90189-05050

10 parts on this diagram · 1 diagram in section
