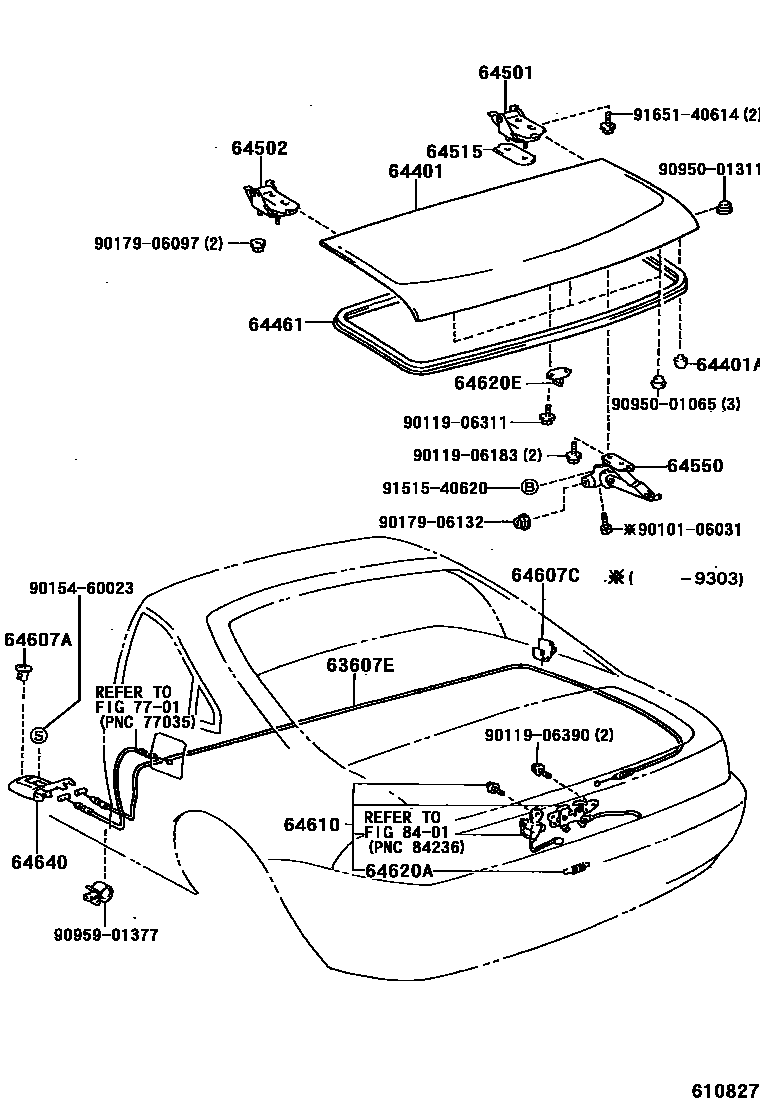

LUGGAGE COMPARTMENT DOOR & LOCK

63607ECABLE SUB-ASSY, LUGGAGE DOOR LOCK CONTROL

main64607-17050iSW2#199001-199506

64401PANEL SUB-ASSY, LUGGAGE COMPARTMENT DOOR

main64401-17080iSW21199001-199104

main64401-17090iSW20199001-199104

W(REAR SPOILER)

main64401-17120iSW21199104-199311

main64401-17130iSW20199104-199311

W(REAR SPOILER)

main64401-17131iSW2#199311-199506

64401ACUSHION(FOR LUGGAGE COMPARTMENT DOOR PANEL)

main90541-09029iSW2#199001-199104

main90541-15010iSW2#199104-199506

64461WEATHERSTRIP, LUGGAGE COMPARTMENT DOOR

main64461-17030iSW2#199001-199506

64501HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, RH

main64510-17020iSW2#199001-199506

64502HINGE SUB-ASSY, LUGGAGE COMPARTMENT DOOR, LH

main64510-17020iSW2#199001-199506

64515PAD, LUGGAGE DOOR HINGE

main64515-17020iSW2#199001-199506

64550BALANCER ASSY, LUGGAGE COMPARTMENT DOOR

main64550-17030iSW21199001-199311

main64550-17040iSW20199001-199311

W(REAR SPOILER)

main64550-17041iSW2#199311-199506

64607ACLAMP, NO.1(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90467-05078-01iSW2#199001-199311

BLACK,TRIM2#

main90467-05078-02iSW2#199001-199201

RED,TRIM3#

main90467-05078-04iSW2#199001-199311

D,BLUE,TRIM8#

main90467-05078-22iSW2#199311-199506

BLACK,TRIM2#

main90467-05078-A0iSW2#..USA199201-199506

IVORY,TRIM0#

64607CCLAMP, NO.3(FOR LUGGAGE DOOR LOCK CONTROL CABLE)

main90467-09049iSW2#199001-199506

64610LOCK ASSY, LUGGAGE COMPARTMENT DOOR

main64610-17030iSW2#199001-199506

64620ASPRING, TENSION(FOR LUGGAGE COMPARTMENT DOOR LOCK)

main90506-07018iSW2#199001-199506

64620ESTRIKER ASSY, LUGGAGE COMPARTMENT DOOR

main64620-20090iSW2#199001-199506

64640OPENER ASSY, LUGGAGE DOOR LOCK

main64640-17020-01iSW2#199001-199311

BLACK,TRIM2#

main64640-17020-02iSW2#199001-199201

RED,TRIM3#

main64640-17020-04iSW2#199001-199311

D,BLUE,TRIM8#

main64640-17020-22iSW2#199311-199506

BLACK,TRIM2#

main64640-17020-A0iSW2#..USA199201-199506

IVORY,TRIM0#

7701FUEL TANK & TUBE

→ Go to FIG 77-01

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

9010106031

main90101-06031

9011906183

main90119-06183

9011906311

main90119-06311

9011906390

main90119-06390

9015460023

main90154-60023

9017906097

main90179-06097

9017906132

main90179-06132

9095001065

main90950-01065

9095001311

main90950-01311

9095901377

main90959-01377

9151540620

main91515-40620

9165140614

main91651-40614

28 parts on this diagram · 1 diagram in section
