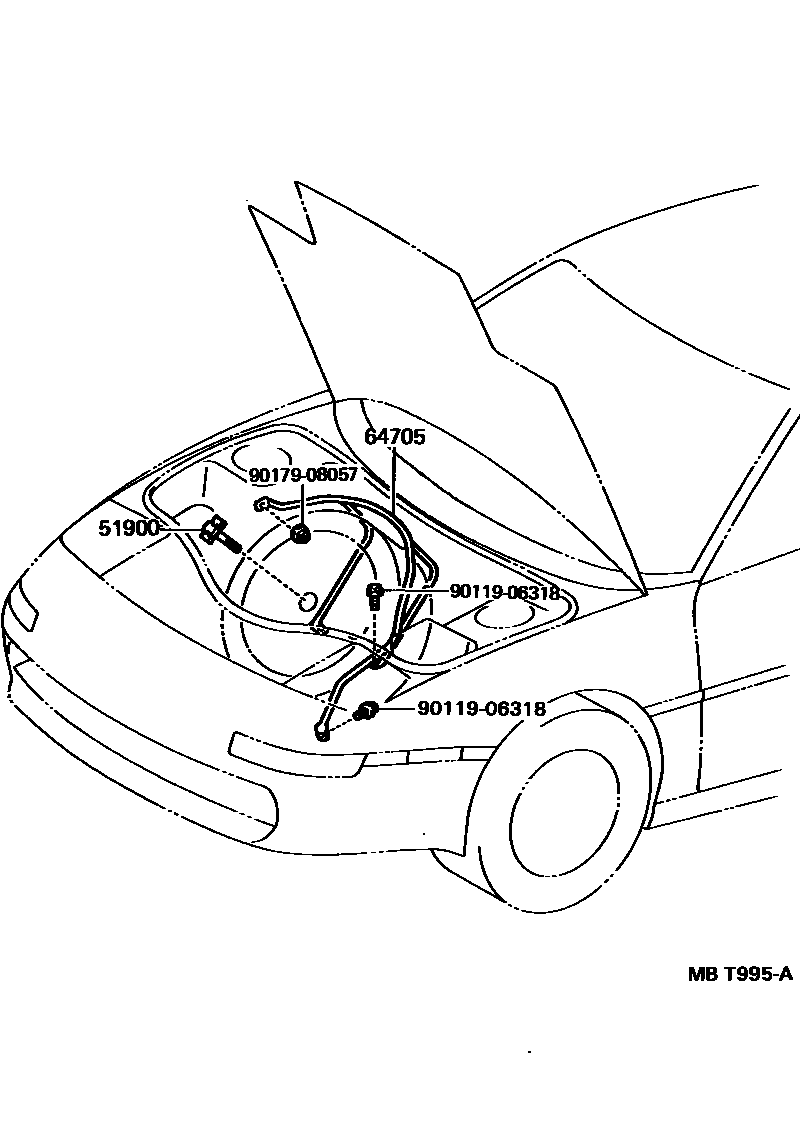

SPARE WHEEL CARRIER

51900CARRIER ASSY, SPARE WHEEL

main51900-17020iSW2#199001-199106

main51900-17030iSW2#199106-199201

L=93

64705GUARD SUB-ASSY, SPARE WHEEL

main64705-17020iSW2#199001-199201

main64705-17040iSW2#199201-199506

9011906318

main90119-06318

9017908057

main90179-08057

4 parts on this diagram · 1 diagram in section
