Toyota 282470 — SPEEDOMETER DRIVEN GEAR (MTM)

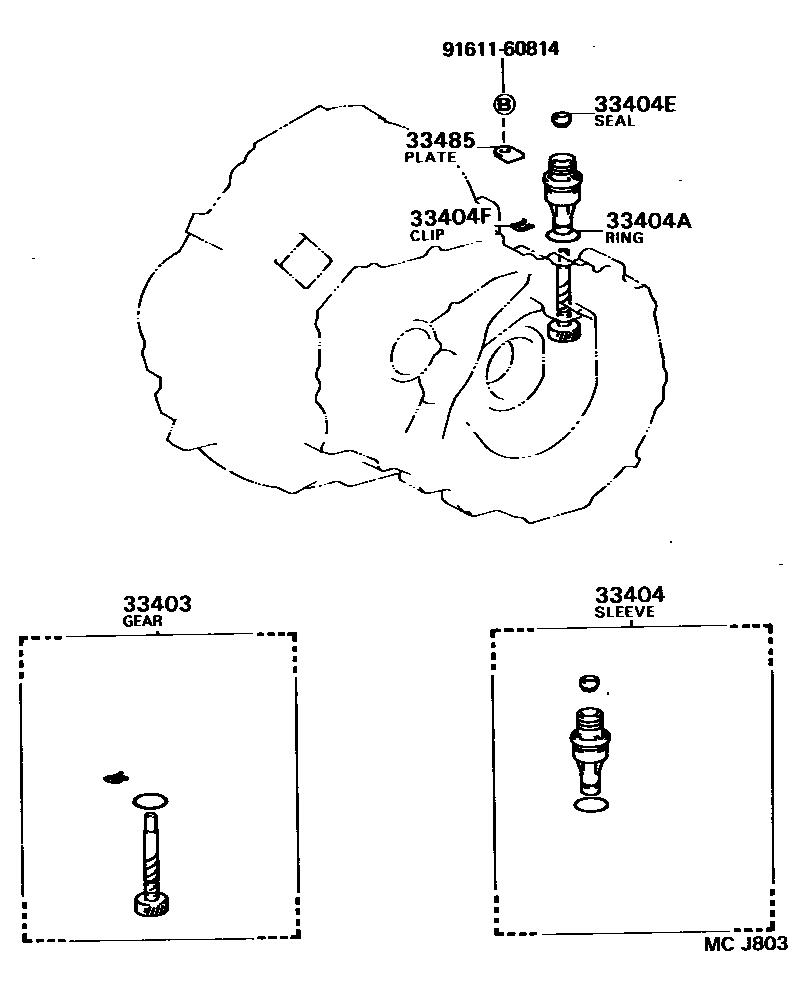

Parts diagram

33403GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)

33404SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)

33404ARING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)

33404ESEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)

33404FCLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)

33485PLATE, SPEEDOMETER SLEEVE LOCK (MTM)

9161160814

7 parts on this diagram · 4 diagrams in section

SPEEDOMETER DRIVEN GEAR (MTM) for Toyota 282470

This section contains 13 genuine Toyota parts for the SPEEDOMETER DRIVEN GEAR (MTM) system of the Toyota 282470. Key components include: GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM), SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM), RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE), SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE), CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE).
