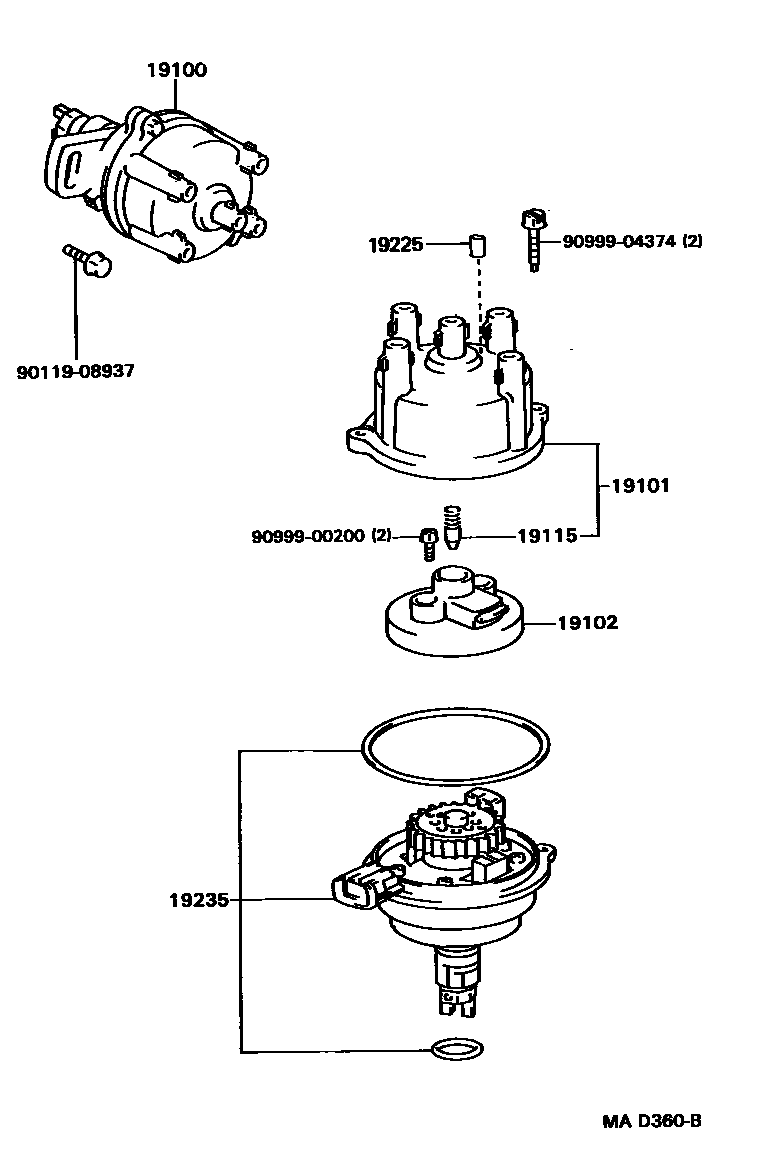

DISTRIBUTOR

0001 1 0002 1 0003 1 0004 1

19100DISTRIBUTOR ASSY

main19050-74020i5SFE..SW21199201-199308

sub19050-74030

main19050-74040i5SFE..SW21199309-199506

main19050-74050i5SFE..SW21199308-199309

main19100-74060i5SFE..SW21199001-199201

main19100-88363i3SGTE..SW20199001-199201

main19100-88364i3SGTE..SW20199201-199506

19101CAP SUB-ASSY, DISTRIBUTOR

main19101-74110i5SFE..SW21199001-199201

main19101-74180i5SFE..SW21199201-199506

main19101-88363i3SGTE..SW20199001-199201

main19101-88364i3SGTE..SW20199201-199506

19102ROTOR SUB-ASSY, DISTRIBUTOR

main19102-11031i5SFE..SW21199201-199506

sub19102-11370

main19102-74040i3SGTE..SW20199201-199506

19115PIECE, DISTRIBUTOR CAP, CENTER

main19115-63010×2i5SFE..SW21199201-199506

main19115-88280i3SGTE,5SFE..SW2#199001-199201

19225CAP, RUBBER

main19225-74060i5SFE..SW21199001-199201

19235HOUSING, DISTRIBUTOR

main19235-74110i5SFE..SW21199001-199201

main19235-74180i5SFE..SW21199201-199308

main19235-74210i5SFE..SW21199308-199506

main19235-88040i3SGTE..SW20199311-199506

main19235-88363i3SGTE..SW20199001-199311

9011908937

main90119-08937

9099900200

main90999-00200

9099904374

main90999-04374

9 parts on this diagram · 4 diagrams in section
