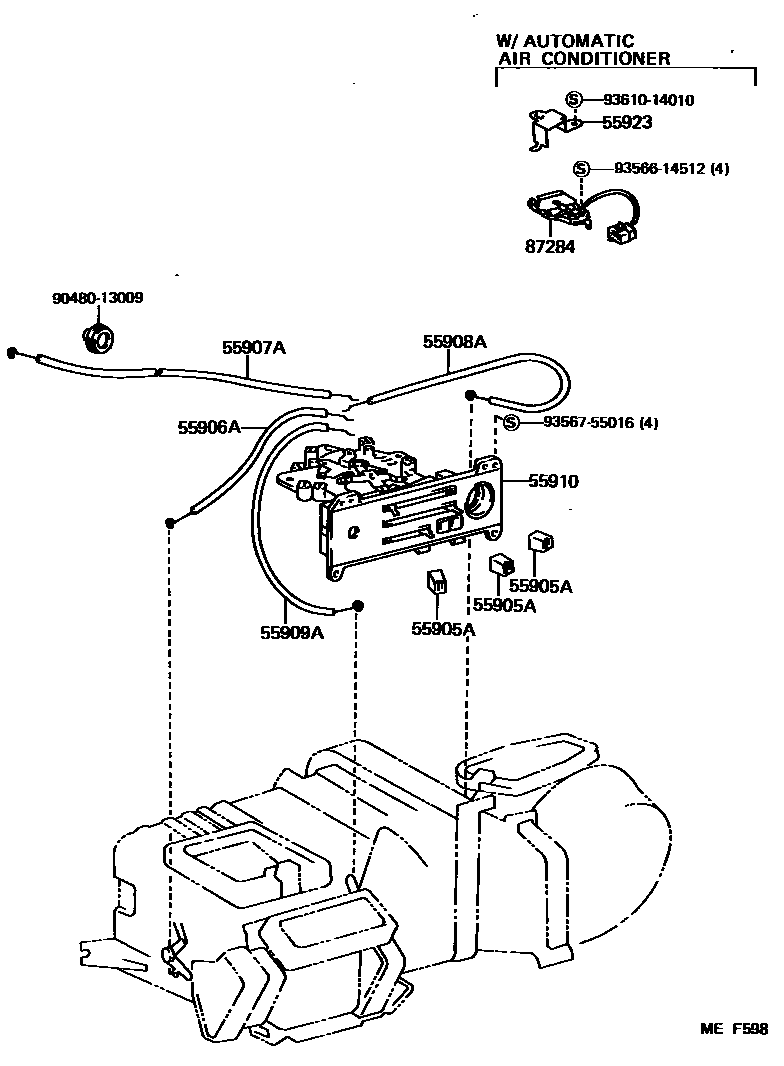

HEATING & AIR CONDITIONING - CONTROL & AIR DUCT

0001 1 0002 1 0003 1 0004 1

55905AKNOB, HEATER CONTROL

main55905-17010iAW11..CND; AW11..USA198608-198803

A/C

main55905-17020iAW11..CND; AW11..USA198608-198803

ECON

main55905-89110×3iAW11198412-198608

main88860-17013iAW11..CND198506-198608

A/C

55906ACABLE SUB-ASSY, DEFROSTER DAMPER CONTROL

main55906-17020iAW11198412-198608

55907ACABLE SUB-ASSY, WATER VALVE CONTROL

main55907-17020iAW11198412-198608

W/O *AAC

main55907-17021iAW11198608-198912

55908ACABLE SUB-ASSY, AIR INLET DAMPER CONTROL

main55908-17020iAW11198412-198608

55909ACABLE SUB-ASSY, AIRMIX DAMPER CONTROL

main55909-17020iAW11198412-198608

W/O *AAC

main55909-17021iAW11198608-198912

55910CONTROL ASSY, HEATER OR BOOST VENTILATOR

main55910-17010iAW11198412-198608

main55910-17030iAW11198608-198912

main55910-17050iAW11..USA198608-198803

W/COOLER

55923RETAINER, HEATER CONTROL, UPPER

main55923-17010iAW11198412-198608

W/*AAC

87284RESISTOR SUB-ASSY, VARIABLE

main88032-17020iAW11198412-198608

W/*AAC

9048013009

main90480-13009

9356614512

main93566-14512

9356755016

main93567-55016

9361014010

main93610-14010

12 parts on this diagram · 4 diagrams in section
