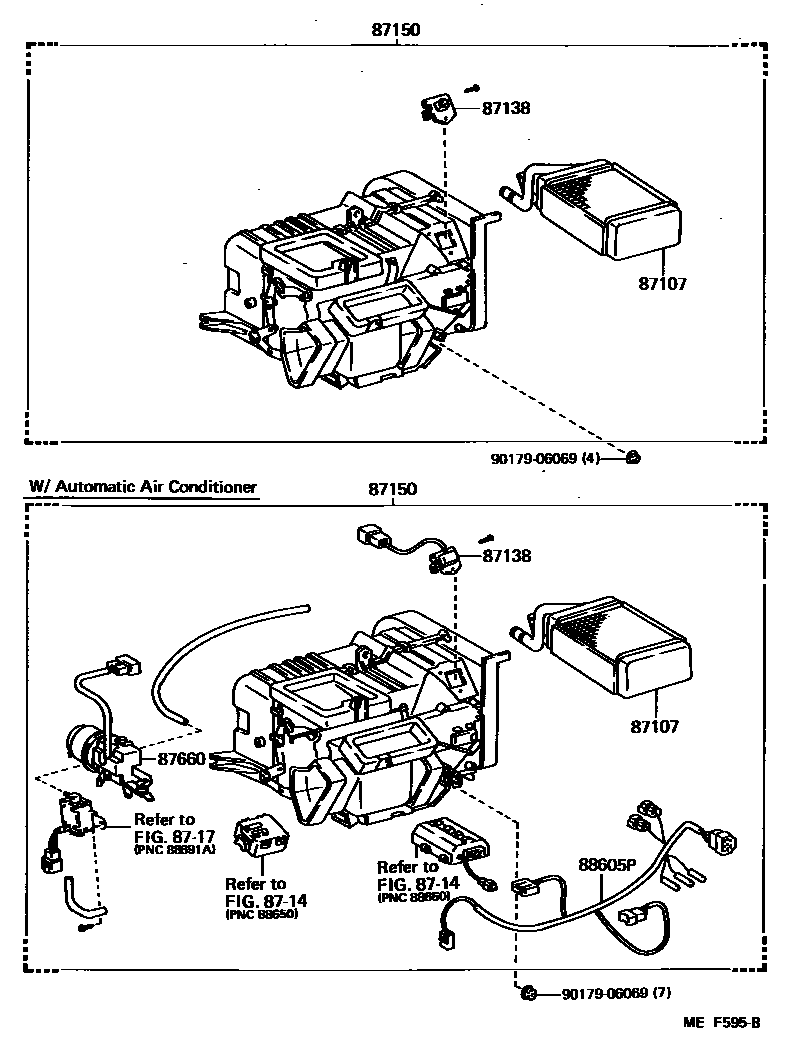

HEATING & AIR CONDITIONING - HEATER UNIT & BLOWER

0001 1 0002 1 0003 1

87107UNIT SUB-ASSY, HEATER RADIATOR

main87107-17040iAW11198412-198912

87138RESISTOR, HEATER BLOWER

main87138-17020iAW11198412-198608

main87138-17040iAW11198608-198912

main88635-17010iAW11198412-198506

W/*AAC

main88635-17011iAW11198506-198608

W/*AAC

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87150RADIATOR ASSY, HEATER

main87150-17040iAW11198412-198608

main87150-17070iAW11198412-198608

W/*AAC

main87150-17090iAW11..USA198508-198608

W/COOLER

main87150-17130iAW11198608-198912

main87150-17150iAW11..GT..USA198608-198803

W/COOLER

main87150-17190iAW11..SPC..USA198708-198803

W/COOLER

8717HEATING & AIR CONDITIONING - VACUUM PIPING

→ Go to FIG 87-17

87660SERVO ASSY, AIR CONDITIONER

main87106-17020iAW11198803-198912

AIR INLET

main87106-17040iAW11198608-198803

MODE

main88660-17020iAW11198412-198608

W/*AAC

88605PHARNESS SUB-ASSY, AIR CONDITIONER WIRING

main88605-17020iAW11198412-198608

W/*AAC

main88605-17130iAW11..USA198608-198912

W/COOLER

9017906069

main90179-06069

8 parts on this diagram · 3 diagrams in section
