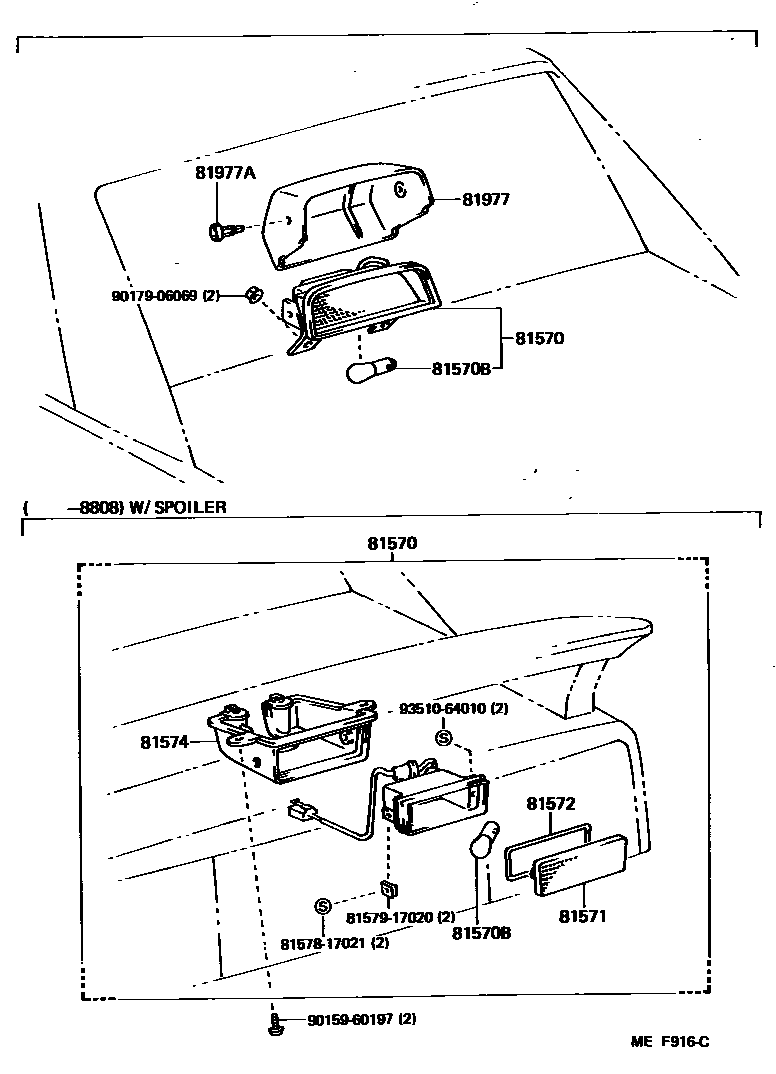

CENTER STOP LAMP

0001 1 0002 1

81570LAMP ASSY, CENTER STOP

main81570-17010iAW11198508-198912

main81570-17020iAW11198508-198608

W/SPOILER

main81570-17021-01iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

BLACK METALLIC,204

main81570-17021-01iAW11198608-198803

W/SPOILER,BLACK-M,BLACK METALLIC,204

main81570-17021-02iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

SUPER RED,3E5

main81570-17021-02iAW11198608-198803

W/SPOILER,SUPER RED,SUPER RED,3E5

main81570-17021-03iAW11198608-198803

W/SPOILER,SUPER SILVER,SUPER SILVER,166

main81570-17021-04iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

MEDIUM BLUE MICA,8E3

main81570-17021-04iAW11198608-198803

W/SPOILER,MIDIUM BLUE-M,MEDIUM BLUE MICA,8E3

main81570-17021-05iAW11198608-198803

W/SPOILER,BEIGE-M,BEIGE METALLIC,4G8

main81570-17021-07iAW11198608-198803

W/SPOILER,DARK GREEN-M,DARK GREEN METALLIC,28B

main81570-17021-08iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

SUPER WHITE,040

main81570-17021-08iAW11198608-198803

W/SPOILER,SUPER WHITE,SUPER WHITE,040

main81570-17021-12iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

ORENGE MICA,3H5

main81570-17021-13iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

GRAY METALLIC,167 ,21E

main81570-17030iAW11198808-198912

W(RR SPOILER)

81570BBULB (FOR CENTER STOP LAMP)

main99132-11270iAW11198508-198803

12V 27W,12V 27W

main99132-11270iAW11198803-198912

12V 27W

81571LENS, CENTER STOP LAMP

main81571-17020iAW11198508-198808

81572GASKET, CENTER STOP LAMP

main81572-17020iAW11198508-198808

81574COVER, CENTER STOP LAMP

main81574-17020iAW11198508-198608

main81574-17021-01iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

BLACK METALLIC,204

main81574-17021-01iAW11198608-198803

BLACK-M,BLACK METALLIC,204

main81574-17021-02iAW11198608-198803

SUPER RED,SUPER RED,3E5

main81574-17021-02iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

SUPER RED,3E5

main81574-17021-03iAW11198608-198803

SUPER SILVER,SUPER SILVER,166

main81574-17021-04iAW11198608-198803

MIDIUM BLUE-M,MEDIUM BLUE MICA,8E3

main81574-17021-04iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

MEDIUM BLUE MICA,8E3

main81574-17021-05iAW11198608-198803

BEIGE-M,BEIGE METALLIC,4G8

main81574-17021-07iAW11198608-198803

DARK GREEN-M,DARK GREEN METALLIC,28B

main81574-17021-08iAW11198608-198803

SUPER WHITE,SUPER WHITE,040

main81574-17021-08iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

SUPER WHITE,040

main81574-17021-12iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

ORENGE MICA,3H5

main81574-17021-13iAW11..CND;AW11..CP..USA;AW11..SPC..USA198803-198808

GRAY METALLIC,167 ,21E

81977COVER, CENTER STOP LAMP

main81977-17010-01iAW11198803-198808

BLACK,TRIM2#

main81977-17010-01iAW11198508-198803

BLACK,BLACK,TRIM1#

main81977-17010-02iAW11198808-198912

RED,TRIM3#

main81977-17010-04iAW11198608-198803

BLUE,DARK BLUE,TRIM8#

main81977-17010-04iAW11198803-198912

DARK BLUE,TRIM8#

main81977-17010-05iAW11198608-198803

BEIGE,DARK BEIGE,TRIM4#

main81977-17010-05iAW11198803-198808

DARK BEIGE,TRIM4#

main81977-17010-06iAW11198508-198608

BROWN,BROWN,TRIM4#

main81977-17010-11iAW11198808-198912

BLACK,TRIM2#

81977ACLIP (FOR CENTER STOP LAMP)

main90467-07055-01iAW11198508-198803

BLACK,BLACK,TRIM1#

main90467-07055-01iAW11198803-198808

BLACK,TRIM2#

main90467-07055-04iAW11198608-198803

BLUE,BLUE,TRIM8#

main90467-07055-06iAW11198508-198803

BROWN,BROWN,TRIM4#

main90467-07055-11iAW11198808-198912

NEW BLACK,TRIM2#

main90467-07055-24iAW11198803-198807

DARK BLUE,TRIM8#

main90467-07055-25iAW11198803-198808

DARK BEIGE,TRIM4#

main90467-07055-25iAW11198608-198803

BEIGE,DARK BEIGE,TRIM4#

main90467-07055-32iAW11198808-198912

RED,TRIM3#

main90467-07055-J0iAW11198808-198912

LIGHT BLUE,TRIM8#

8157817021

main81578-17021

8157917020BRACKET, CENTER STOP LAMP

main81579-17020

9015960197

main90159-60197

9017906069

main90179-06069

9351064010

main93510-64010

12 parts on this diagram · 2 diagrams in section
