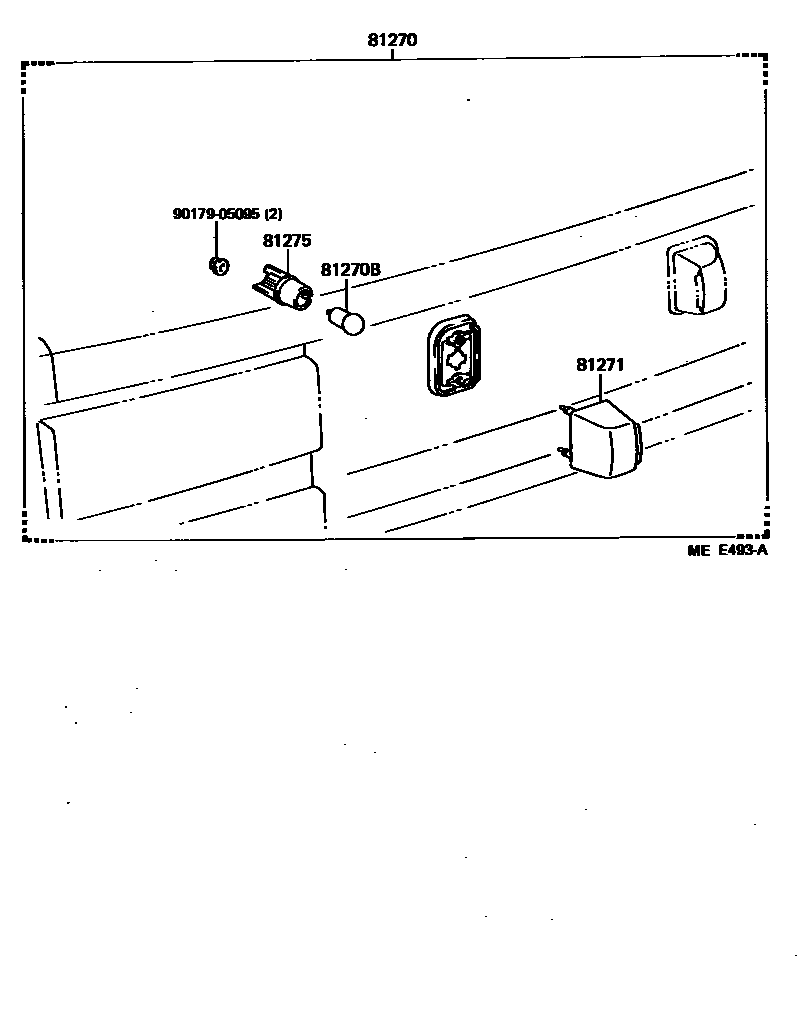

REAR LICENSE PLATE LAMP

81270LAMP ASSY, LICENSE PLATE

main81270-80009×2iAW11198412-198608

main81270-80025×2iAW11198412-198608

W/CENTER FINISH PANEL

81270BBULB (FOR LICENSE PLATE LAMP)

main90981-12012×2iAW11198412-198608

12V 7.5W,12V 7.5W,W/CENTER FINISH PANEL

main99132-11075×2iAW11198412-198608

12V 7.5W,12V 7.5W

81271LENS, LICENSE PLATE LAMP

main81271-12230×2iAW11198412-198608

main81271-17010×2iAW11198412-198608

W/CENTER FINISH PANEL

81275SOCKET AND WIRE, LICENSE PLATE LAMP

main81275-12230×2iAW11198412-198608

main81275-12240×2iAW11198412-198608

W/CENTER FINISH PANEL

9017905095

main90179-05095

5 parts on this diagram · 1 diagram in section
