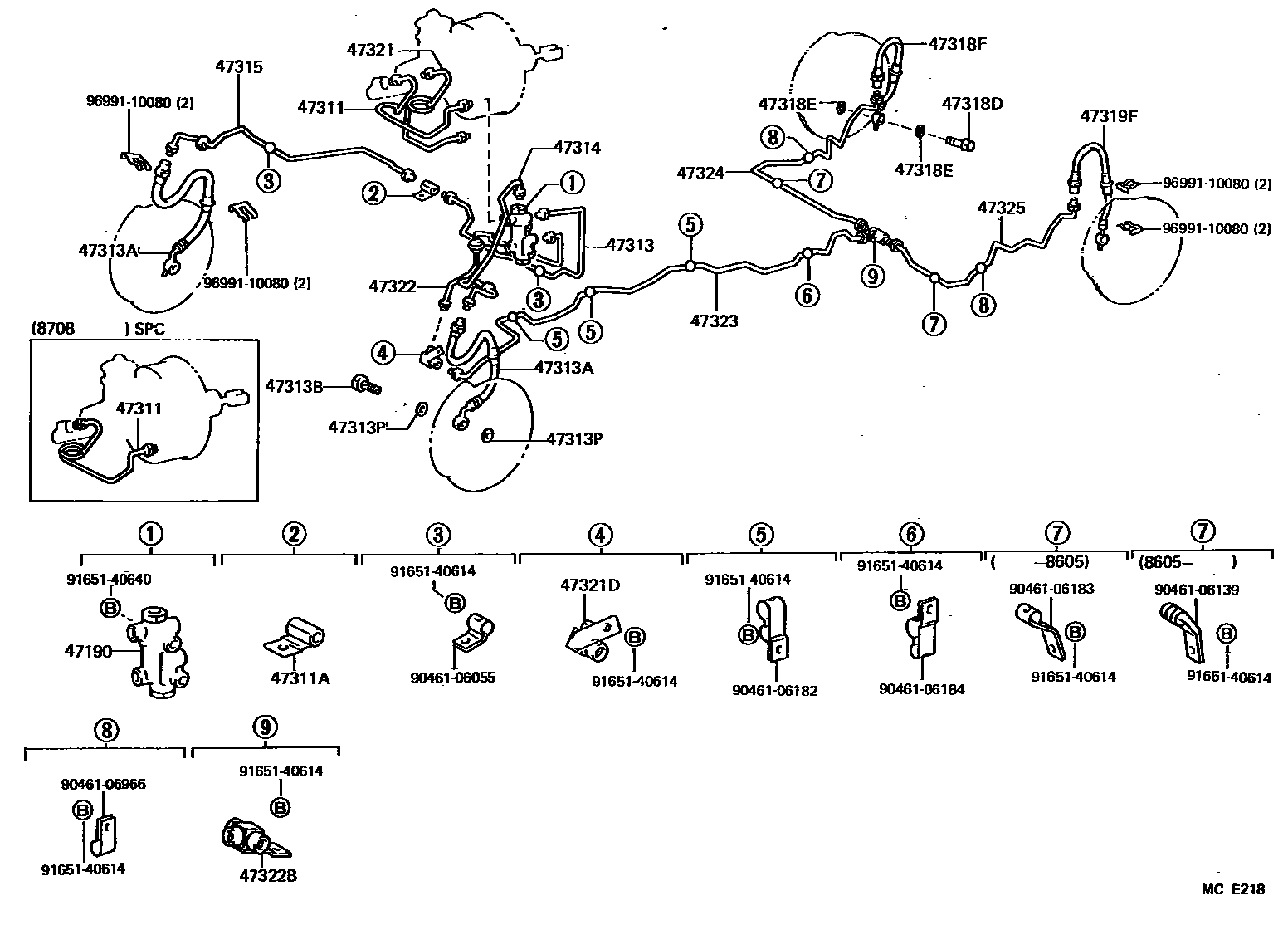

BRAKE TUBE & CLAMP

47190VALVE ASSY, PROPORTIONING & BY-PASS

main47190-14030iAW11..SPC198803-198912

main47190-22050iAW11..GT198803-198912

47311TUBE, FRONT BRAKE, NO.1

main47311-17020iAW11198412-198608

main47311-17060iAW11..GT198608-198804

main47311-17070iAW11..SPC198708-198912

47311AWAY(FOR FRONT BRAKE TUBE)

main90412-10041iAW11198412-198804

47313TUBE, FRONT BRAKE, NO.3

main47313-17020iAW11198412-198608

main47313-17040iAW11198608-198804

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-02459×2iAW11198412-198608

main90947-02499×2iAW11198608-198708

main90947-02554×2iAW11198708-198804

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10015×2iAW11198412-198804

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main90430-10074×4iAW11198412-198804

47314TUBE, FRONT BRAKE, NO.4

main47314-17020iAW11198412-198608

main47314-17050iAW11198608-198804

47315TUBE, FRONT BRAKE, NO.5

main47315-17010iAW11198412-198804

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10015×2iAW11..TBR;AW11..CP..USA198804-198912

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main90430-10074×4iAW11..TBR;AW11..CP..USA198804-198912

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-02460iAW11198412-198708

main90947-02552iAW11198708-198804

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-02460iAW11198412-198708

main90947-02552iAW11198708-198804

47321TUBE, REAR BRAKE, NO.1

main47321-17020iAW11198412-198608

main47321-17060iAW11..GT198608-198804

main47321-17070iAW11..SPC198708-198912

47321DWAY, NO.1(FOR REAR BRAKE TUBE)

main90412-10117iAW11..TBR;AW11..CP..USA198804-198912

47322TUBE, REAR BRAKE, NO.2

main47322-17020iAW11198412-198804

47322BWAY, NO.2(FOR REAR BRAKE TUBE)

main90413-10179iAW11198412-198804

47323TUBE, REAR BRAKE, NO.3

main47323-17010iAW11198412-198804

47324TUBE, REAR BRAKE, NO.4

main47324-17010iAW11198412-198605

main47324-17011iAW11198605-198804

47325TUBE, REAR BRAKE, NO.5

main47325-17010iAW11198412-198605

main47325-17011iAW11198605-198804

9046106055

main90461-06055

9046106139

main90461-06139

9046106182

main90461-06182

9046106183

main90461-06183

9046106184

main90461-06184

9046106966

main90461-06966

9165140614

main91651-40614

9165140640

main91651-40640

9699110080

main96991-10080

29 parts on this diagram · 1 diagram in section
