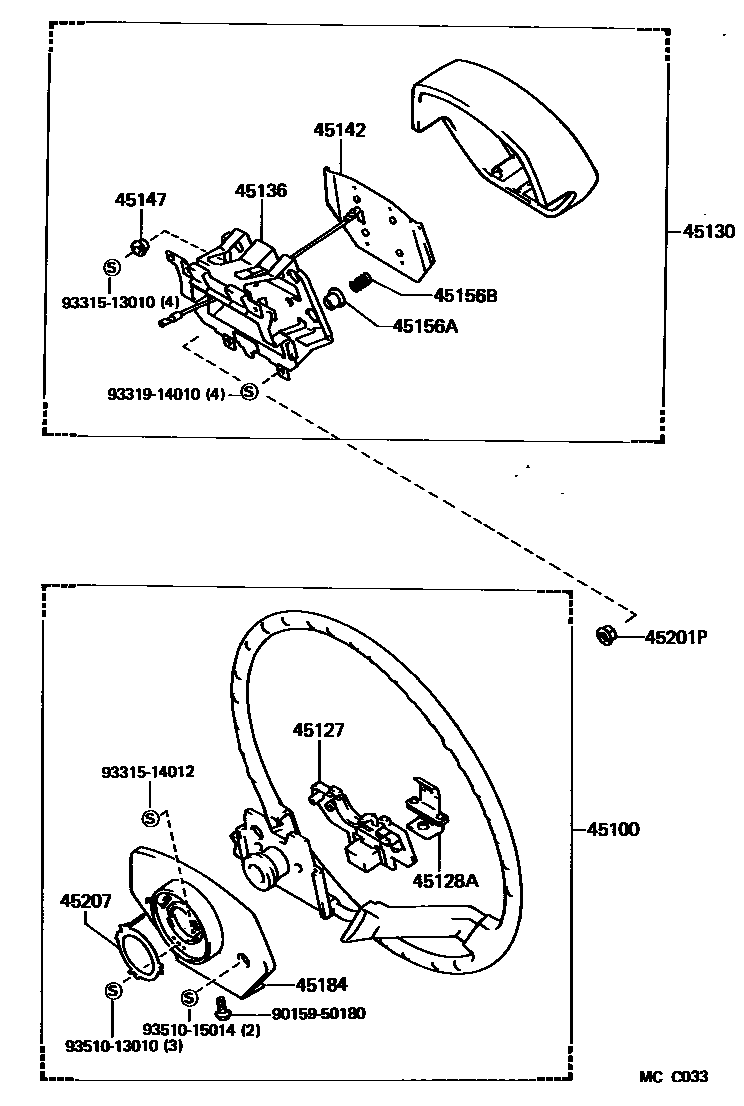

STEERING WHEEL

0001 1 0002 1

45100WHEEL ASSY, STEERING

main45100-17010iAW11198412-198505

main45100-17010-11iAW11198505-198608

BLACK,BLACK,TRIM1#

main45100-17020iAW11198412-198608

LEATHER

main45100-17050-01iAW11198608-198803

BLACK,BLACK,TRIM1#

main45100-17050-02iAW11198808-198912

RED,TRIM3#

main45100-17050-04iAW11..TBR;AW11..CP..USA198804-198912

DARK BLUE,TRIM8#

main45100-17050-05iAW11..TBR;AW11..CP..USA198804-198808

DARK BEIGE,TRIM4#

main45100-17050-11iAW11198808-198912

BLACK,TRIM2#

main45100-17070-01iAW11..TBR;AW11..CP..USA198804-198808

LEATHER,BLACK,BLACK,TRIM2#

main45100-17070-02iAW11198808-198912

LEATHER,RED,RED,TRIM3#

main45100-17070-04iAW11198803-198804

LEATHER,BLUE,DARK BLUE,TRIM8#

main45100-17070-05iAW11..TBR;AW11..CP..USA198804-198808

LEATHER,BEIGE,DARK BEIGE,TRIM4#

main45100-17070-11iAW11198808-198912

LEATHER,BLACK,BLACK,TRIM2#

45127INSERT, HORN BUTTON, UPPER NO.1

main45127-17010iAW11198412-198608

45128ASPRING, STEERING WHEEL PAD SET

main45128-17010iAW11198412-198608

45130BUTTON ASSY, HORN

main45130-17010iAW11198412-198505

main45130-17010-11iAW11198505-198608

BLACK,BLACK,TRIM1#

main45130-17030-01iAW11198803-198804

BLACK,TRIM2#

main45130-17030-02iAW11198808-198912

RED,TRIM3#

main45130-17030-04iAW11198803-198804

DARK BLUE,TRIM8#

main45130-17030-05iAW11..TBR;AW11..CP..USA198804-198808

DARK BEIGE,TRIM4#

main45130-17030-11iAW11198808-198912

BLACK,TRIM2#

45136PLATE, HORN BUTTON CONTACT

main45136-17010iAW11198412-198608

45142SEAT, HORN BUTTON CONTACT, NO.1

main45142-17010iAW11198412-198608

45147SPACER, HORN BUTTON

main90561-02001×4iAW11198412-198608

45156ASEAT, HORN CONTACT SPRING SET

main45156-16010×4iAW11198412-198608

45156BSPRING(FOR HORN CONTACT SPRING SET SEAT)

main90501-06032×4iAW11198412-198608

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-17010iAW11198412-198505

main45184-17010-11iAW11198505-198608

BLACK,BLACK,TRIM1#

45201PNUT, STEERING WHEEL SET

main90179-12025iAW11..TBR;AW11..CP..USA198804-198912

main90179-12086iAW11198412-198608

45207RING, HORN CONTACT

main45176-22050iAW11198412-198608

9015950180

main90159-50180

9331513010

main93315-13010

9331514012

main93315-14012

9331914010

main93319-14010

9351013010

main93510-13010

9351015014

main93510-15014

18 parts on this diagram · 2 diagrams in section
