TRANSAXLE OR TRANSMISSION ASSY & GASKET KIT (ATM)

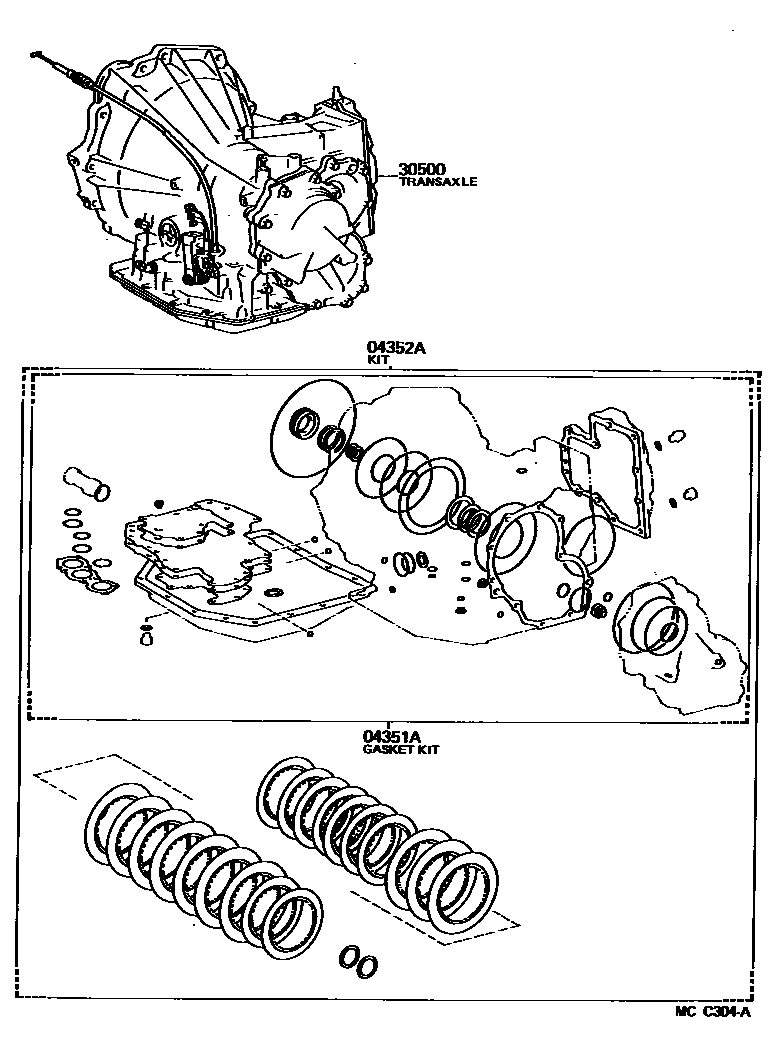

Parts diagram

04351AGASKET KIT, TRANSAXLE OVERHAUL(ATM)

main04351-12060i198608-198912

main04351-17030i198508-198608

04352AKIT, TRANSAXLE OVERHAUL(ATM)

main04352-17020i198508-198608

main04352-17030i198608-198912

30500TRANSAXLE ASSY, AUTOMATIC

main30500-17010i198508-198512

main30500-17011i198512-198608

main30500-17040i198608-198704

main30500-17041i198704-198912

main30500-17060i198708-198912

3 parts on this diagram · 2 diagrams in section
