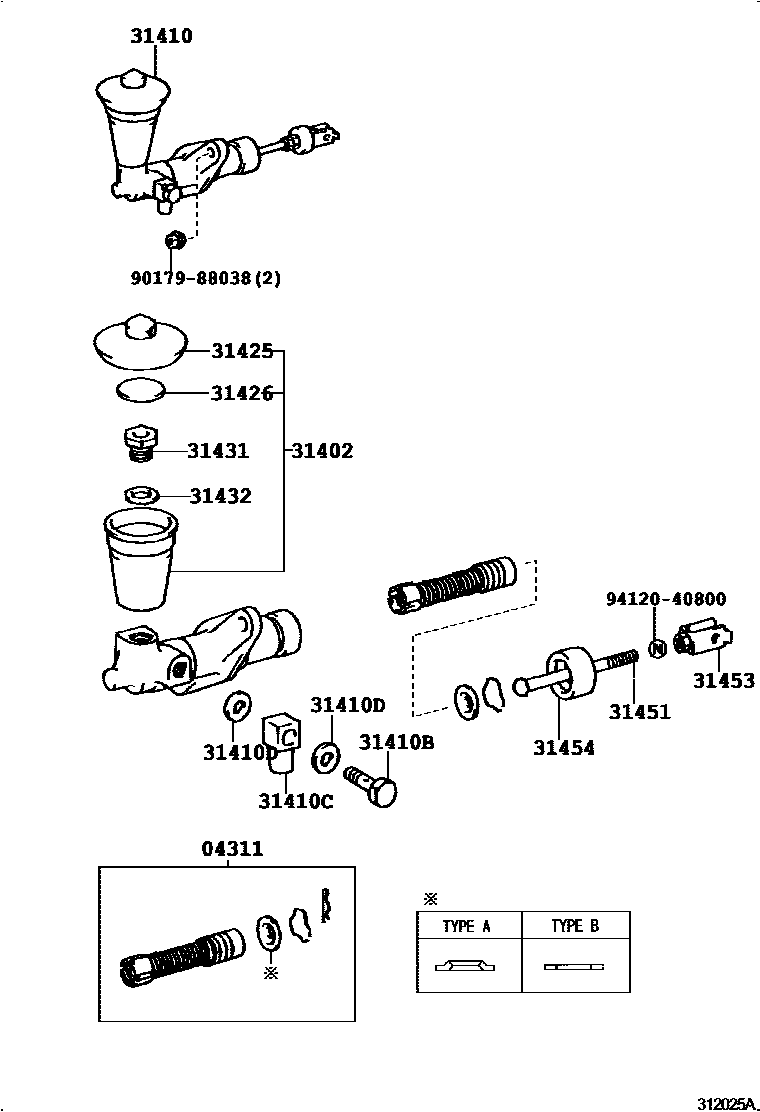

CLUTCH MASTER CYLINDER

04311CYLINDER KIT, CLUTCH MASTER

main04311-14030iAW11..5F198609-198704

TYPE B:REFER ILLUST.

main04311-14031iAW11..5F198704-198803

main04311-14032iAW11..5F198803-198805

sub04311-28010

main04311-17020iAW11..5F198412-198609

TYPE A:REFER ILLUST.

sub04311-26040

main04311-32030iAW11..5F198805-198912

31402RESERVOIR SUB-ASSY, CLUTCH MASTER CYLINDER

main31402-12010iAW11..5F198412-198912

sub31402-30030

31410CYLINDER ASSY, CLUTCH MASTER

main31410-17020iAW11..5F198412-198704

main31410-17021iAW11..5F198704-198708

main31410-17022iAW11..5F198708-198803

main31410-17023iAW11..5F198803-198805

main31410-17024iAW11..5F198805-198912

31410BBOLT, UNION(FOR CLUTCH MAS CYLINDER TO FLEXIBLE HOSE TUBE)

main90401-12011iAW11..5F198412-198805

main90401-12014iAW11..5F198805-198912

31410CUNION(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90404-12002iAW11..5F198412-198912

31410DGASKET(FOR CLUTCH MASTER CYLINDER TO FLEXIBLE HOSE TUBE)

main90430-12221×2iAW11..5F198412-198912

31425CAP, CLUTCH MASTER CYLINDER RESERVOIR FILLER

main31440-35010iAW11..5F198412-198912

sub47230-20040

31426FLOAT, CLUTCH MASTER CYLINDER RESERVOIR

main31426-30011iAW11..5F198412-198912

31431BOLT, CLUTCH MASTER CYLINDER RESERVOIR SET

main47231-30010iAW11..5F198412-198912

31432WASHER, CLUTCH RESERVOIR SET BOLT

main47232-30010iAW11..5F198412-198912

31451ROD, CLUTCH MASTER CYLINDER PUSH

main31451-17020iAW11..5F198412-198609

main31451-17030iAW11..5F198609-198805

main31451-17031iAW11..5F198805-198912

31453CLEVIS, CLUTCH MASTER CYLINDER PUSH ROD

main31404-28011iAW11..5F198412-198708

sub31404-28012

main31404-30050iAW11..5F198708-198904

main31404-30051iAW11..5F198904-198912

31454BOOT, CLUTCH MASTER CYLINDER

main31454-14010iAW11..5F198412-198912

9017988038

main90179-88038

9412040800

main94120-40800

15 parts on this diagram · 1 diagram in section
