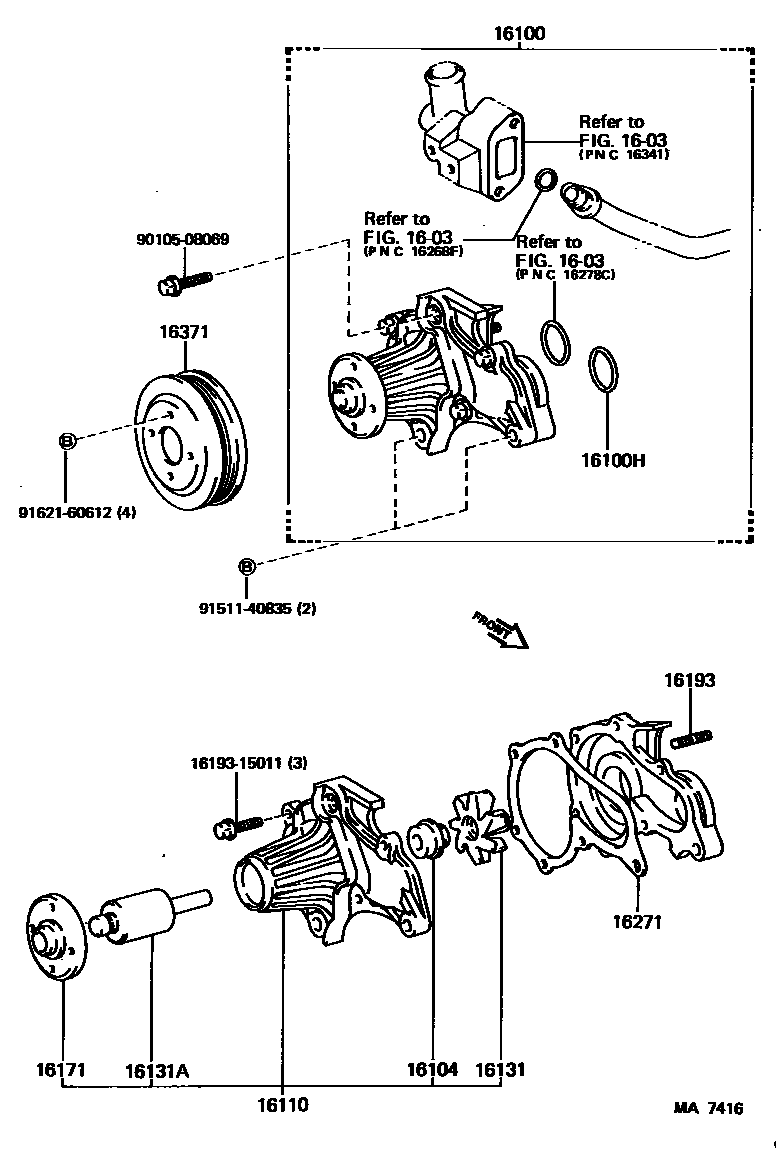

WATER PUMP

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

16100PUMP ASSY, ENGINE WATER

main16100-19115i4AG#..AW11198412-198912

16100HRING, O(FOR WATER PUMP)

main96711-24035i4AG#..AW11198412-198912

16104SEAL SET, WATER PUMP

main16104-15020i4AG#..AW11198412-198912

16110PUMP ASSY, WATER, W/O COUPLING

main16110-16020i4AG#..AW11198412-198912

16131ROTOR, WATER PUMP

main16131-16010i4AG#..AW11198412-198803

main16131-16020i4AG#..AW11198803-198912

16131ABEARING, WATER PUMP

main90369-35021i4AGELC..AW11198412-198705

main90369-35043i4AG#..AW11198705-198912

16171SEAT, WATER PUMP PULLEY

main16171-15020i4AG#..AW11198412-198912

16193BOLT, STUD(FOR WATER PUMP COVER)

main92122-60816×2i4AG#..AW11198412-198912

16271GASKET, WATER PUMP

main16124-15010i4AG#..AW11198412-198912

16371PULLEY, FAN

main16371-16030i4AG#..AW11198412-198912

1619315011BOLT, STUD(FOR WATER PUMP COVER)

main16193-15011

9010508069

main90105-08069

9151140835

main91511-40835

9162160612

main91621-60612

15 parts on this diagram · 1 diagram in section
