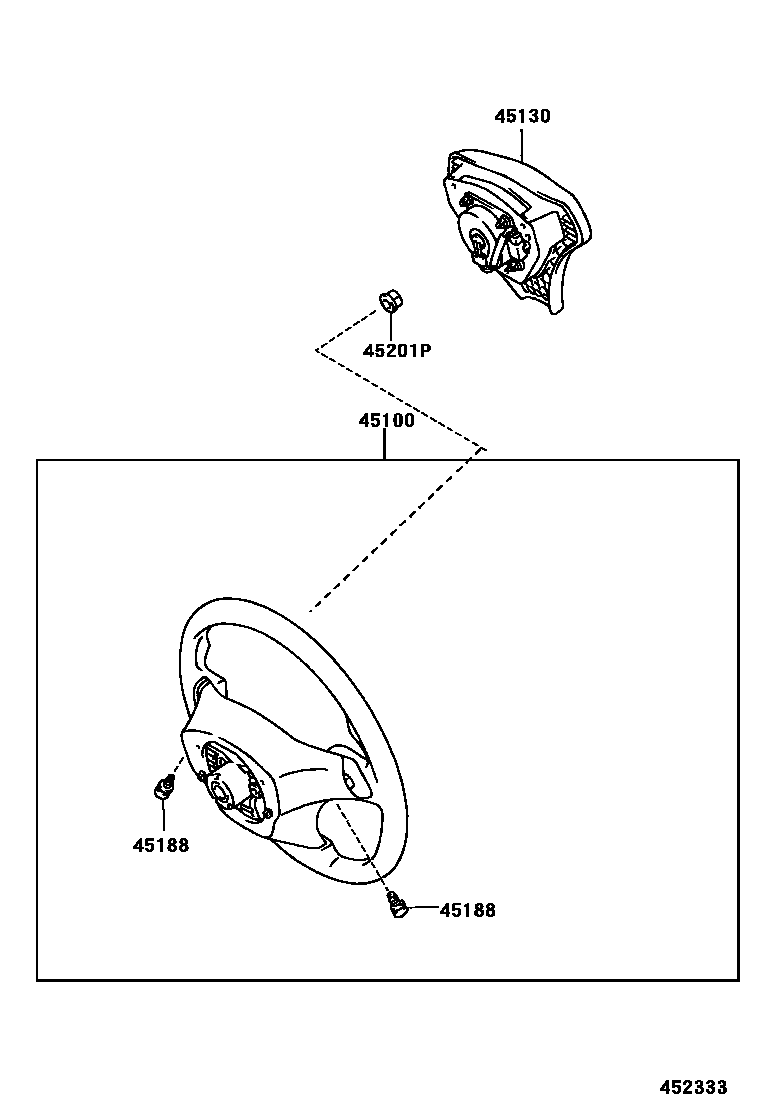

STEERING WHEEL

0001 13-SPOKE 0002 1W(STEER SHIFTMATIC)

45100WHEEL ASSY, STEERING

main45100-2B690-C0iZZW30199912-200008

3-SPOKE,LEATHER,BLACK,TRIM2#,3#,5#

main45100-2B690-C1iZZW30..6F200402-200509

3-SPOKE,LEATHER,GRAY,TRIM10,20,30,40

main45100-2B690-C2iZZW30..6F200402-200509

3-SPOKE,LEATHER,RED,TRIM10,20,30,40

main45100-2B690-C3iZZW30..6F200402-200509

3-SPOKE,LEATHER,BLACK,TRIM10,20,30,40

main45100-2B700-C0iZZW30..6F200208-200509

3-SPOKE,URETHANE,BLACK,TRIM1#,2#,3#

main45100-2B710-C0iZZW30..5FS200008-200208

3-SPOKE,LEATHER,W(STEER SHIFTMATIC),BLACK,TRIM2#,3#,4#,5#

main45100-2B710-C1iZZW30..6FS200402-200509

3-SPOKE,LEATHER,GRAY,TRIM10

main45100-2B710-C2iZZW30..6FS200402-200509

3-SPOKE,LEATHER,RED,TRIM30

main45100-2B710-C3iZZW30..6FS200402-200509

3-SPOKE,LEATHER,BLACK,TRIM10,20,30,40

45130BUTTON ASSY, HORN

main45130-17160-C0iZZW30200402-200509

BLACK,TRIM1#,2#,3#,4#

main45130-2B430-C0iZZW30200008-200208

BLACK,TRIM2#,3#,4#,5#

45188SCREW, STEERING WHEEL PAD ATTACHING

main90148-60007×2iZZW30199912-200208

L=18

45201PNUT, STEERING WHEEL SET

main90179-12071iZZW30199912-200208

4 parts on this diagram · 2 diagrams in section
