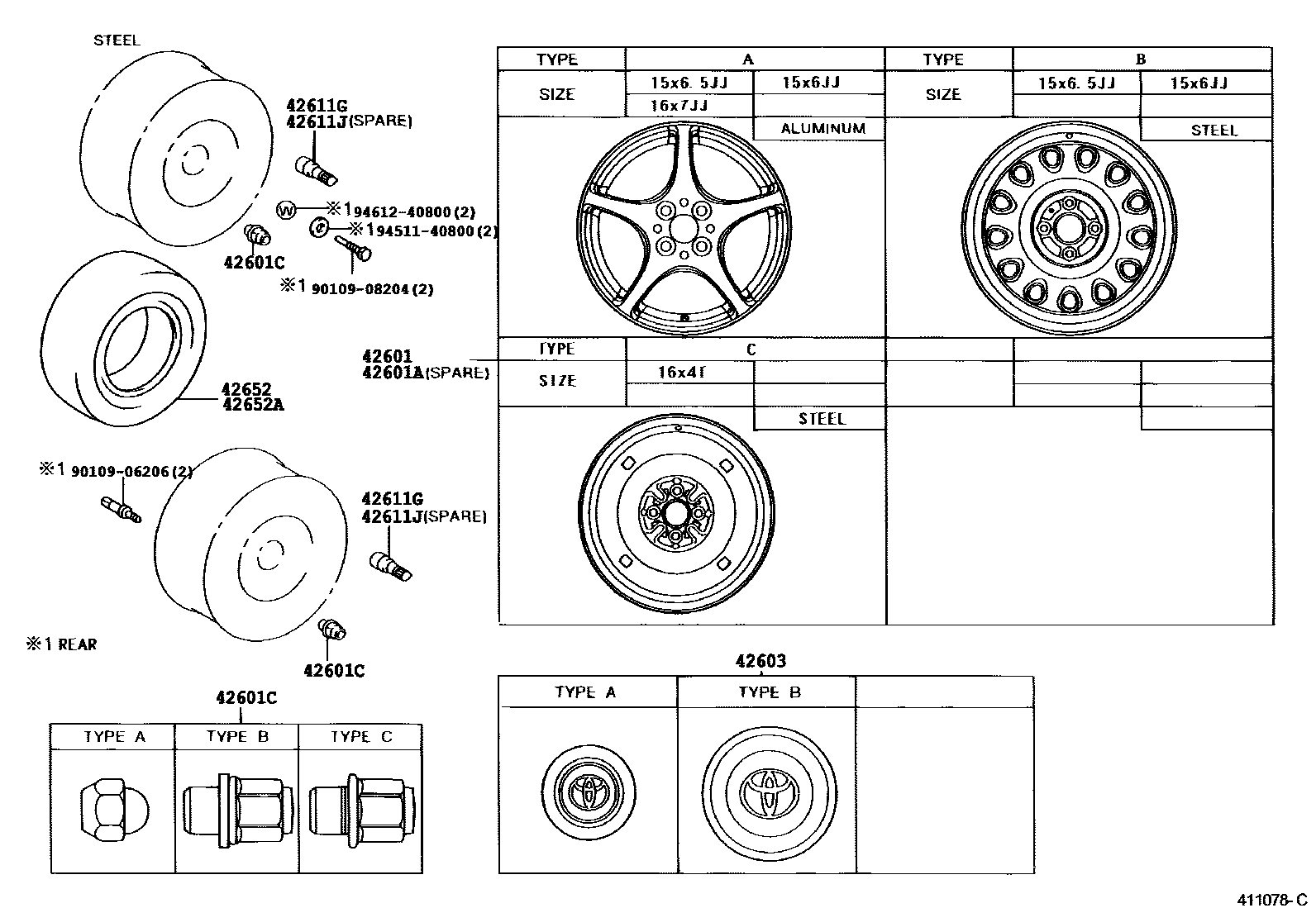

DISC WHEEL & WHEEL CAP

0001 1 0002 1

42601WHEEL, DISC

main42611-17220iZZW30..EUR199912-200208

15X6JJ,TYPE B:REFER TO ILLUSTRATION

main42611-17230iZZW30..EUR199912-200208

15X6.5JJ,TYPE B:REFER TO ILLUSTRATION

main42611-17320iZZW30199912-200208

15X6JJ,TYPE A:REFER TO ILLUSTRATION

main42611-17330iZZW30199912-200208

15X6.5JJ,TYPE A:REFER TO ILLUSTRATION

main42611-17360iZZW30..ARL200208-200509

15X6JJ,TYPE A:REFER ILLUST.

main42611-17370iZZW30..EUR200208-200509

16X7JJ,TYPE A:REFER ILLUST.

main42611-17390iZZW30..ARL200208-200509

16X7JJ,TYPE A:REFER ILLUST.

main42611-17400iZZW30..EUR200208-200509

15X6JJ,TYPE A:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main42611-1A240iZZW30199912-200208

16X4T,TYPE C:REFER TO ILLUSTRATION

main42611-1A240iZZW30200208-200509

16X4T,TYPE C:REFER ILLUST.

42601CNUT, HUB (FOR AXLE)

main90942-01021iZZW30..EUR199912-200108

TYPE A:REFER TO ILLUSTRATION

main90942-01033iZZW30..5F,5FS199912

TYPE B:REFER TO ILLUSTRATION,FRONT

main90942-01033iZZW30200208-200509

TYPE B:REFER ILLUST.

main90942-01082iZZW30..EUR200108-200208

TYPE A:REFER TO ILLUSTRATION

main90942-01083iZZW30..5F,5FS199912

TYPE C:REFER TO ILLUSTRATION,REAR

main90942-01083iZZW30200208-200509

TYPE C:REFER ILLUST.

42603ORNAMENT SUB-ASSY, WHEEL HUB

main42603-20640iZZW30200208-200509

*ALU,TYPE A:REFER ILLUST.

main42603-20640iZZW30..5F,5FS199912

*ALU,TYPE A:REFER TO ILLUSTRATION

main42638-17050iZZW30..EUR199912-200208

*STE,TYPE B:REFER TO ILLUSTRATION

42611GVALVE (FOR TUBELESS TIRE)

main90942-05009iZZW30199912-200509

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009iZZW30199912-200509

42652TIRE

main42652-1R310iZZW30..RHD..EUR200208-200402

185/55R15 81V,*Y/H,FRONT RH

main42652-1R311iZZW30..ARL200310-200509

185/55R15 81V,*Y/H,FRONT RH

main42652-1R320iZZW30..RHD199912-200208

185/55R15 81V,*Y/H,FRONT RH

main42652-1R330iZZW30..RHD199912-200208

185/55R15 81V,*B/S,FRONT RH

main42652-1R340iZZW30..RHD199912-200208

185/55R15 81V,*Y/H,FRONT LH

main42652-1R350iZZW30..RHD199912-200208

185/55R15 81V,*B/S,FRONT LH

main42652-1R360iZZW30..RHD199912-200208

205/50R15 85V,*Y/H,REAR RH

main42652-1R370iZZW30..RHD199912-200208

205/50R15 85V,*B/S,REAR RH

main42652-1R380iZZW30..RHD199912-200208

205/50R15 85V,*Y/H,REAR LH

main42652-1R390iZZW30..RHD199912-200208

205/50R15 85V,*B/S,REAR LH

main42652-1R400iZZW30..LHD199912-200208

185/55R15 81V,*Y/H,FRONT RH

main42652-1R420iZZW30..LHD199912-200208

185/55R15 81V,*Y/H,FRONT LH

main42652-1R500iZZW30..ARL200208-200402

185/55R15 81V,*B/S,FRONT RH

main42652-1R501iZZW30..ARL200310-200509

185/55R15 81V,*B/S,FRONT RH

main42652-1R510iZZW30..RHD..EUR200208-200402

185/55R15 81V,*Y/H,FRONT LH

main42652-1R511iZZW30..ARL200310-200509

185/55R15 81V,*Y/H,FRONT LH

main42652-1R520iZZW30..ARL200208-200402

185/55R15 81V,*B/S,FRONT LH

main42652-1R521iZZW30..RHD..EUR200310-200509

185/55R15 81V,*B/S,FRONT LH

main42652-1R530iZZW30..ARL200208-200402

215/45R16 86W,*Y/H,REAR RH

main42652-1R531iZZW30..ARL200310-200509

215/45R16 86W,*Y/H,REAR RH

main42652-1R531iZZW30..RHD..EUR200402-200509

215/45R16 86W,*Y/H,FRONT RH

main42652-1R540iZZW30..RHD..EUR200208-200402

215/45R16 86W,*B/S,REAR RH

main42652-1R541iZZW30..ARL200310-200509

215/45R16 86W,*B/S,REAR RH

main42652-1R541iZZW30..RHD..EUR200402-200509

215/45R16 86W,*B/S,FRONT RH

main42652-1R550iZZW30..ARL200208-200402

215/45R16 86W,*Y/H,REAR LH

main42652-1R551iZZW30..RHD..EUR200402-200509

215/45R16 86W,*Y/H,FRONT LH

main42652-1R551iZZW30..ARL200310-200509

215/45R16 86W,*Y/H,REAR LH

main42652-1R560iZZW30..RHD..EUR200208-200402

215/45R16 86W,*B/S,REAR LH

main42652-1R561iZZW30..ARL200310-200509

215/45R16 86W,*B/S,REAR LH

main42652-1R561iZZW30..RHD..EUR200402-200509

215/45R16 86W,*B/S,FRONT LH

main42652-1R570iZZW30..LHD200208-200402

185/55R15 81V,*Y/H,FRONT RH

main42652-1R571iZZW30..LHD200402-200509

185/55R15 81V,*Y/H,FRONT RH

main42652-1R580iZZW30..LHD200208-200402

185/55R15 81V,*B/S,FRONT RH

main42652-1R581iZZW30..LHD200402-200509

185/55R15 81V,*B/S,FRONT RH

main42652-1R590iZZW30..LHD200208-200402

185/55R15 81V,*Y/H,FRONT LH

main42652-1R591iZZW30..LHD200402-200509

185/55R15 81V,*Y/H,FRONT LH

main42652-1R600iZZW30..LHD200208-200402

185/55R15 81V,*B/S,FRONT LH

main42652-1R601iZZW30..LHD200402-200509

185/55R15 81V,*B/S,FRONT LH

main42652-1R610iZZW30..LHD200208-200402

215/45R16 86W,*Y/H,REAR RH

main42652-1R611iZZW30..LHD200402-200509

215/45R16 86W,*Y/H,FRONT RH

main42652-1R620iZZW30..LHD200208-200402

215/45R16 86W,*B/S,REAR RH

main42652-1R621iZZW30..LHD200402-200509

215/45R16 86W,*B/S,FRONT RH

main42652-1R630iZZW30..LHD200208-200402

245/45R16 86W,*Y/H,REAR LH

main42652-1R631iZZW30..LHD200402-200509

245/45R16 86W,*Y/H,FRONT LH

main42652-1R640iZZW30..LHD200208-200402

245/45R16 86W,*B/S,REAR LH

main42652-1R641iZZW30..LHD200402-200509

245/45R16 86W,*B/S,FRONT LH

42652ATIRE (FOR SPARE)

main42652-2B440iZZW30199912-200208

T125/70D16,*B/S

9010906206

main90109-06206

9010908204

main90109-08204

9451140800

main94511-40800

9461240800

main94612-40800

12 parts on this diagram · 2 diagrams in section
